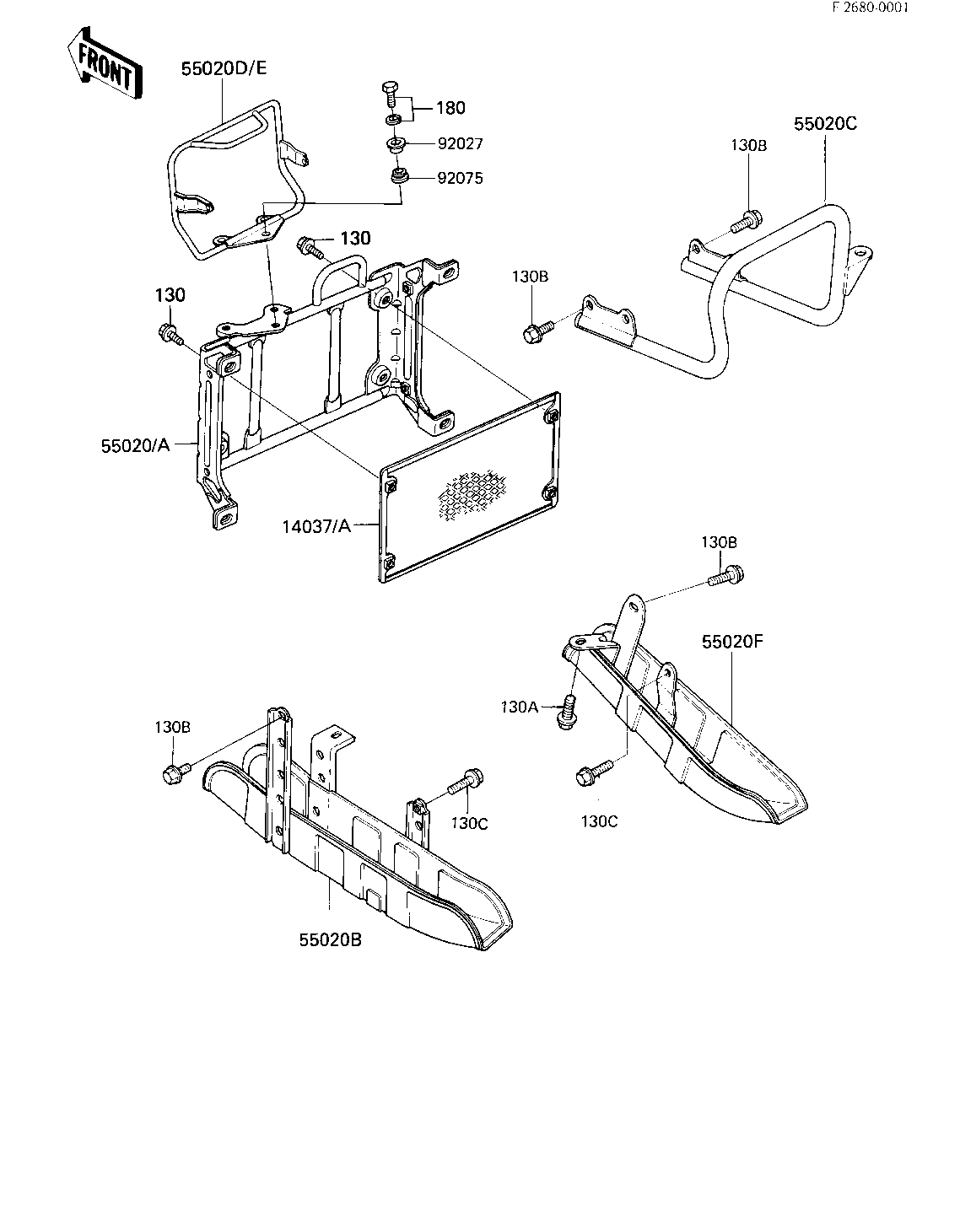

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREEN,L.GREEN | 14037 | 14037-4001-7F | 1 | US | |
| SCREEN,W.F.RED | 14037A | 14037-4001-8R | 1 | ||
| GUARD,RADIATOR,L.GREE | 55020 | 55020-1181-7F | 1 | US | |
| GUARD,RADIATOR,W.F.RE | 55020A | 55020-1181-8R | 1 | ||
| GUARD,CHAIN,BLACK PAI | 55020B | 55020-4024 | 1 | ||
| GUARD,RR-STAY | 55020C | 55020-4026 | 1 | ||
| GUARD,H-LAMP,L.GREEN | 55020D | 55020-4027-7F | 1 | US | |
| GUARD,H.LAMP,W.F.RED | 55020E | 55020-4027-8R | 1 | ||
| GUARD,DISC BLACK PAIN | 55020F | 55020-4029 | 1 | ||
| COLLAR | 92027 | 92027-251 | 3 | ||
| DAMPER RUBBER,RR FENR | 92075 | 92075-209 | 3 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 4 | ||
| BOLT | 130A | 130B0612 | 4 | ||
| BOLT,FLANGED,8X14 | 130B | 130G0814 | 6 | ||
| BOLT-FLANGED,8X20 | 130C | 130B0820 | 2 | ||
| BOLT-UPSET-WS,6X25 | 180 | 180B0625 | 3 |
| SCREEN,L.GREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SCREEN,W.F.RED | |
| REF # | 14037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,RADIATOR,L.GREE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| GUARD,RADIATOR,W.F.RE | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,CHAIN,BLACK PAI | |
| REF # | 55020B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,RR-STAY | |
| REF # | 55020C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,H-LAMP,L.GREEN | |
| REF # | 55020D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| GUARD,H.LAMP,W.F.RED | |
| REF # | 55020E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,DISC BLACK PAIN | |
| REF # | 55020F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FENR | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X14 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS,6X25 | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
