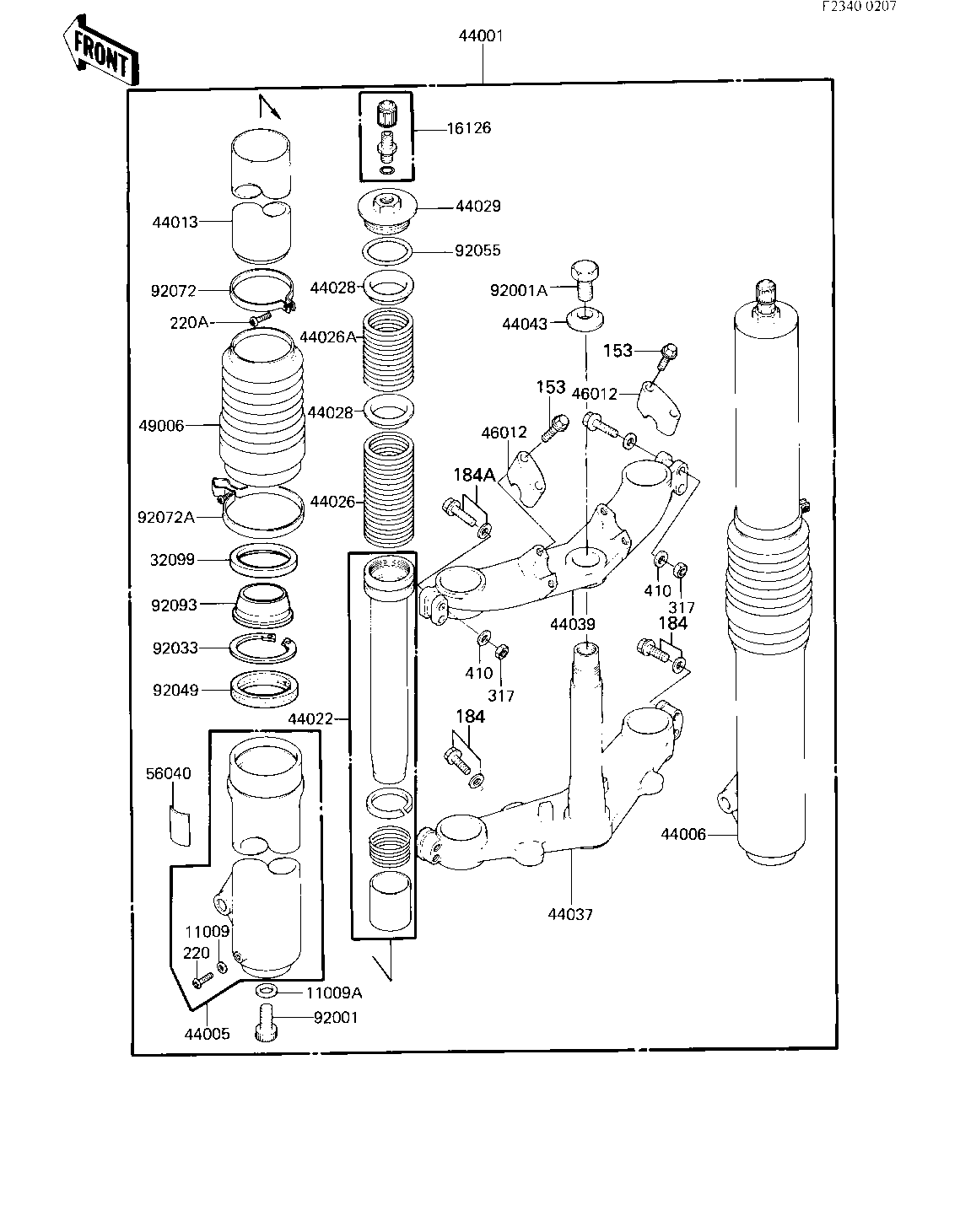

1984 Tecate - FRONT FORK ('84 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
VALVE,AIR FRONT FORK 16126 16126-1048 2
CASE,DUST SHIELD 32099 32099-1012 2
FORK-FRONT,GOLD 44001 44001-4012-8T 1
PIPE-LEFT FORK OUTER 44005 44005-1219-8T 1
PIPE-RIGHT FORK OUTER 44006 44006-1219-8T 1
PIPE-FORK INNER 44013 44013-4003 2
CYLINDER-FORK 44022 44022-4003 2
SPRING-FRONT FORK,LWR 44026 44026-4004 2
SPRING-FRONT FORK,UPP 44026A 44026-4005 2
GUIDE-FORK SPRING 44028 44028-029 4
SEAT-FORK SPRING 44029 44029-4002 2
HOLDER-FORK UNDER 44037 44037-4005 1
HOLDER-FORK UPPER 44039 44039-4008 1
WASHER 44043 44043-052 1
HOLDER-HANDLE 46012 46012-1014 2
BOOTS,FORK 49006 49006-1009 2
LABEL-WARNING 56040 56040-1002 1
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,FORK TOP 92001A 44041-065 1
RING-SNAP,FORK OIL 92033 92033-1100 2
OIL,SEAL,FORK OUTER 92049 92049-1009 2
RING-O,FORK TOP 92055 92055-1095 2
BAND,BOOTS 92072 92072-1008 2
BAND,BOOTS L.H. 92072A 92072-1011 1
DUST SHIELD,FORK OUT 92093 92093-1036 2
183G0840 (Canada) 153 153G0840 4
BOLT-UPSET-WP-SMALL 184 184G0840 4
BOLT-UPSET-WP-SMALL 184A 184G0855 4
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW PAN HEAD 4X8 220A 220B0408 2
NUT,8MM 317 317G0800 4
WASHER-PLAIN-SMALL,8MM 410 410B0800 4
