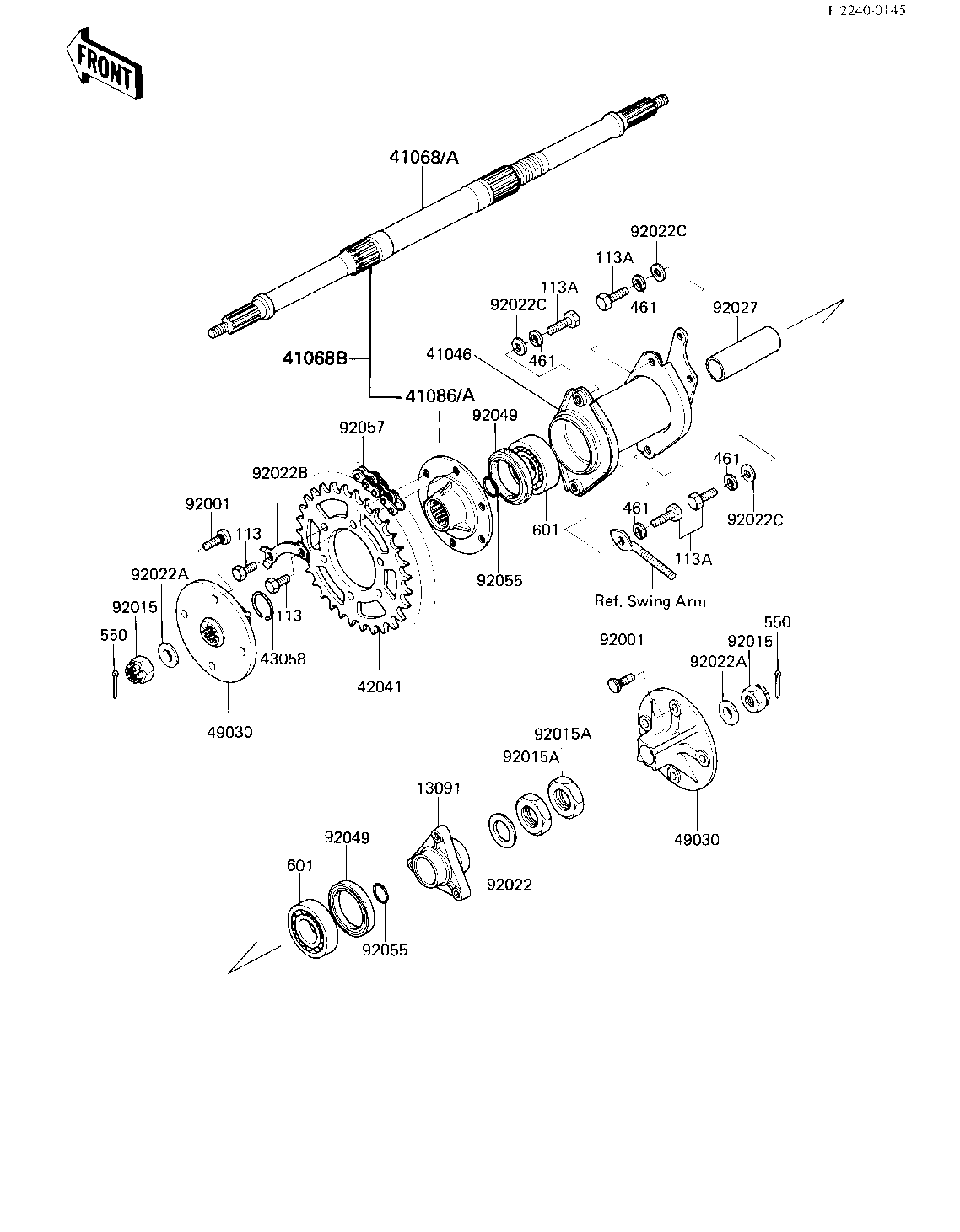

1984 Tecate - REAR HUB/AXLE/CHAIN ('84 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,DISC PLATE | 13091 | 13091-1358 | 1 | ||
| HOUSING | 41046 | 41046-4010-8T | 1 | ||
| AXLE,REAR HUB,L=866 | 41068 | 41068-1174 | 1 | (JKAXTMA1 EB502512 - ) | |
| AXLE,REAR HUB | 41068A | 41068-5001 | 1 | (-JKAXTMA1EB502511) | |
| AXLE,REAR HUB | 41068B | 41068-5001 | 1 | (INCLUDES 41068-1174 & 41068-1 | |
| FLANGE,REAR SPROCKET | 41086 | 41086-1056 | 1 | (JKAXTMA1 EB502512 -) | |
| FLANGE,REAR SPROCKET | 41086A | 41086-1056 | 1 | (-JKAXTMA1EB502511) | |
| SPROCKET-HUB,42T | 42041 | 42041-1130 | 1 | ||
| RING | 43058 | 43058-4002 | 1 | ||
| RR-HUB | 49030 | 49030-4013 | 2 | ||
| BOLT,LUG | 92001 | 92001-4006 | 8 | ||
| NUT CASTLE,18MM | 92015 | 42045-018 | 2 | ||
| NUT,LOCK,32MM | 92015A | 92015-1493 | 2 | ||
| WASHER,32.5X43X2.3 | 92022 | 92022-1225 | 1 | ||
| WASHER,18.3X34X4.5 | 92022A | 92022-1658 | 2 | ||
| WASHER,18.3X34X4.5 | 92022B | 92022-1658 | 3 | ||
| WASHER,12.5X28X4.5 | 92022C | 92022-4037 | 3 | ||
| COLLAR | 92027 | 92027-4025 | 1 | ||
| SEAL-OIL,REAR HUB | 92049 | 92049-4001 | 2 | ||
| RING-0,33X1.6 | 92055 | 92055-4002 | 2 | ||
| DR CHAIN EK520SH-0 82 | 92057 | 92057-4012 | 1 | ||
| BOLT,HEX HEAD,10X16 | 113 | 113G1016 | 6 | ||
| BOLT-SMALL-FINE,12X30 | 113A | 113P1230 | 4 | ||
| WASHER SPRING 12MM | 461 | 461F1200 | 4 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 2 | ||
| BEARING-BALL,#6007 | 601 | 601A6007 | 2 |
| HOLDER,DISC PLATE | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING | |
| REF # | 41046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,REAR HUB,L=866 | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAXTMA1 EB502512 - ) |
| AXLE,REAR HUB | |
| REF # | 41068A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (-JKAXTMA1EB502511) |
| AXLE,REAR HUB | |
| REF # | 41068B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (INCLUDES 41068-1174 & 41068-1 |
| FLANGE,REAR SPROCKET | |
| REF # | 41086 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAXTMA1 EB502512 -) |
| FLANGE,REAR SPROCKET | |
| REF # | 41086A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (-JKAXTMA1EB502511) |
| SPROCKET-HUB,42T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RR-HUB | |
| REF # | 49030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,LUG | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,32MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,32.5X43X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.3X34X4.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.3X34X4.5 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.5X28X4.5 | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,REAR HUB | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-0,33X1.6 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DR CHAIN EK520SH-0 82 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,10X16 | |
| REF # | 113 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-FINE,12X30 | |
| REF # | 113A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 12MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6007 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
