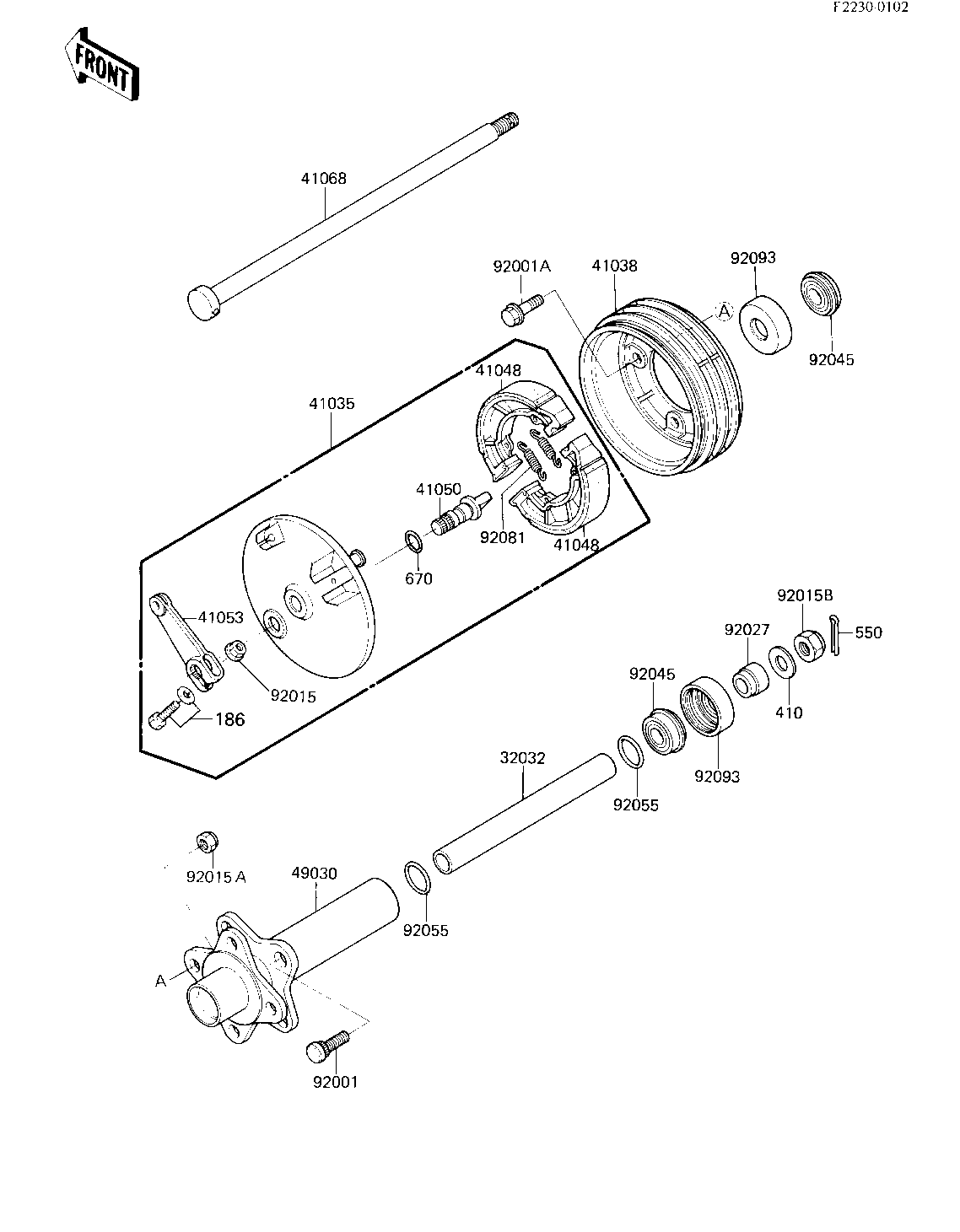

1984 Tecate - FRONT HUB/BRAKE ('84 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COLLAR | 32032 | 32032-4118 | 1 | ||
| PANEL-ASSY-BRAKE,FR | 41035 | 41035-4011 | 1 | ||
| DRUM,FR | 41038 | 41038-4016 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1068 | 2 | ||
| CAM SHAFT,BRAKE | 41050 | 41050-1002 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-4003 | 1 | ||
| AXLE,17X405 | 41068 | 41068-4019 | 1 | ||
| HUB,FRONT | 49030 | 49030-4010 | 1 | ||
| BOLT,LUG | 92001 | 92001-4006 | 4 | ||
| BOLT,FLANGED,10X22 | 92001A | 92001-4034 | 4 | ||
| NUT-6MM | 92015 | 92015-1078 | 1 | ||
| NUT,10MM | 92015A | 92015-1429 | 4 | ||
| NUT-SELF LOCKING | 92015B | 92019-012 | 1 | ||
| COLLAR,FRONT AXLE,L=2 | 92027 | 92027-4032 | 1 | ||
| BEARING-BALL,#6203 ZN | 92045 | 92045-4006 | 2 | ||
| RING-O | 92055 | 92055-4001 | 2 | ||
| SPRING-BRAKE SHOE | 92081 | 42020-004 | 2 | ||
| SEAL | 92093 | 92093-4007 | 2 | ||
| BOLT-UPSET-WP | 186 | 186G0635 | 1 | ||
| WASHER PLAIN 16MM | 410 | 410B1600 | 1 | ||
| PIN,COTTER | 550 | 550D3230 | 1 | ||
| "O" RING,15MM | 670 | 670B2015 | 1 |
| COLLAR | |
| REF # | 32032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASSY-BRAKE,FR | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DRUM,FR | |
| REF # | 41038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,BRAKE | |
| REF # | 41050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-BRAKE CAM | |
| REF # | 41053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,17X405 | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,FRONT | |
| REF # | 49030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,LUG | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X22 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-SELF LOCKING | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FRONT AXLE,L=2 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6203 ZN | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP | |
| REF # | 186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 16MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,COTTER | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,15MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
