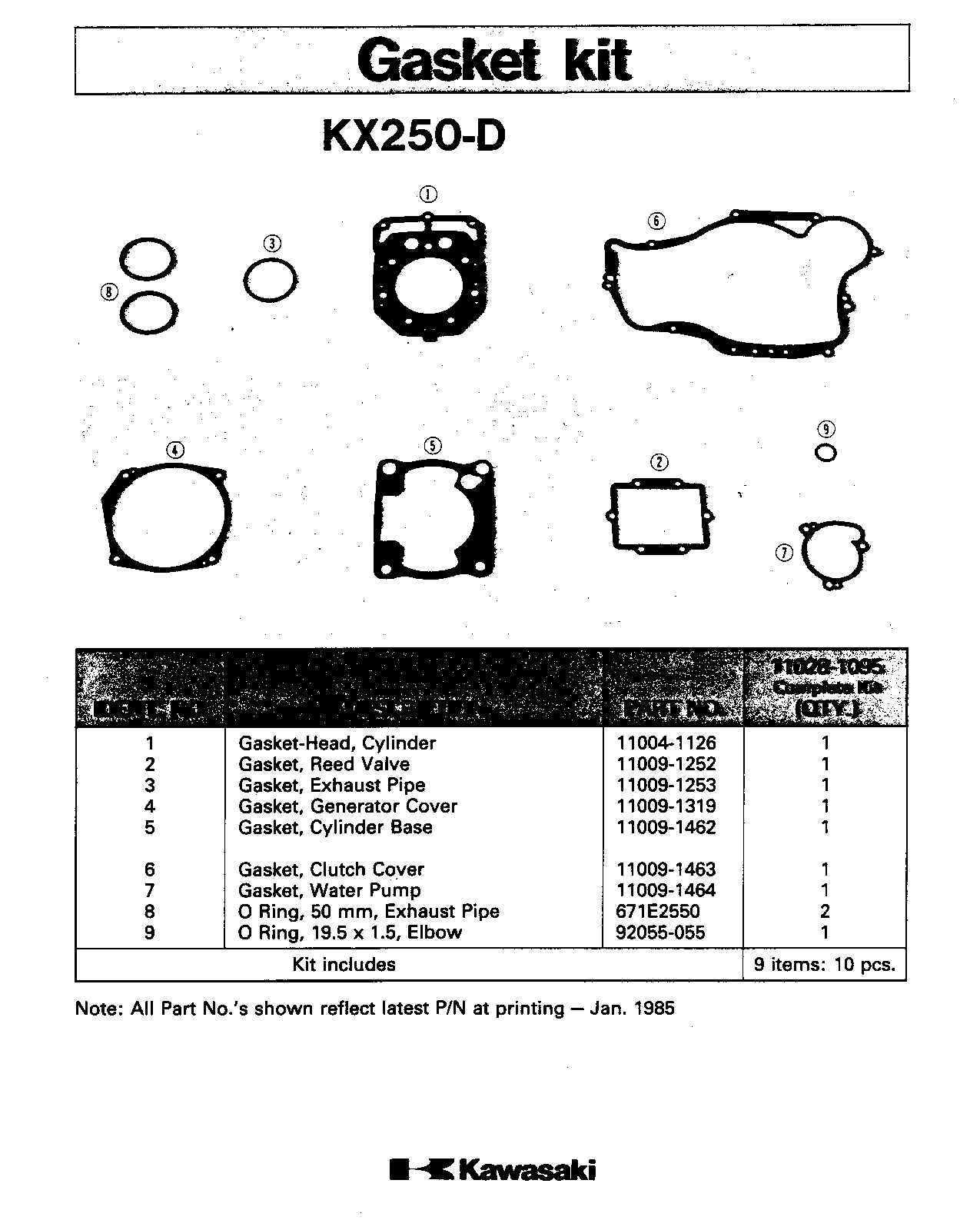

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD,CYLINDER | 1 | 11004-1126 | 1 | ||
| GASKET,REED VALVE | 2 | 11009-1252 | 1 | ||
| GASKET,EXHAUST PIPE | 3 | 11009-1253 | 1 | ||
| GASKET,GENERATOR COVE | 4 | 11009-1319 | 1 | ||
| GASKET,CYLINDER BASE | 5 | 11009-1462 | 1 | ||
| GASKET,CLUTCH COVER | 6 | 11009-1463 | 1 | ||
| GASKET,WATER PUMP COV | 7 | 11009-1464 | 1 | ||
| O RING,50MM | 8 | 671E2550 | 2 | ||
| "O" RING | 9 | 92055-055 | 1 |
| GASKET-HEAD,CYLINDER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,REED VALVE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GENERATOR COVE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLUTCH COVER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,WATER PUMP COV | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,50MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
