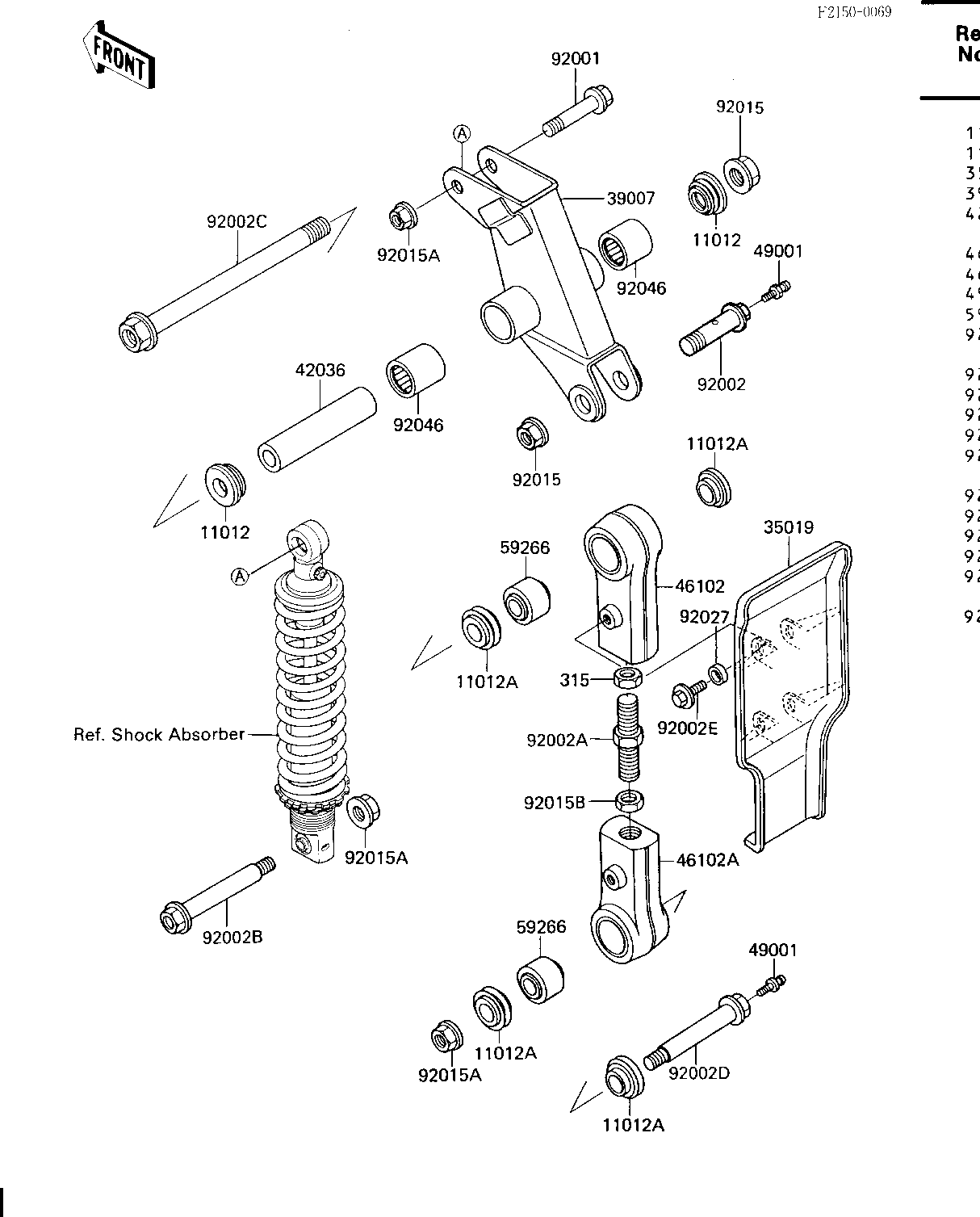

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SWING ARM | 11012 | 11012-1207 | 2 | ||
| CAP,ROD | 11012A | 11012-1418 | 4 | ||
| FLAP,ROD | 35019 | 35019-1166 | 1 | ||
| ARM-SUSP,UNI TRAK | 39007 | 39007-5006 | 1 | ||
| SLEEVE,SUSPENSION AR | 42036 | 42036-1144 | 1 | ||
| ROD,UNI TRAK | 46102 | 46102-1130 | 1 | ||
| ROD,UNI TRAK | 46102A | 46102-1131 | 1 | ||
| NIPPLE-GREASE,ROD BO | 49001 | 49001-1051 | 2 | ||
| JOINT-BALL,ROD | 59266 | 59266-1056 | 2 | ||
| BOLT,FLANGED,10X48 | 92001 | 92001-1962 | 1 | ||
| BOLT,FLANGED,14X57 | 92002 | 92002-1390 | 1 | ||
| BOLT,ROD | 92002A | 92002-1394 | 1 | ||
| BOLT,10X68 | 92002B | 92002-1395 | 1 | ||
| BOLT,14X122 | 92002C | 92002-1396 | 1 | ||
| BOLT,ROD,10X65 | 92002D | 92002-1397 | 1 | ||
| BOLT,6X14 | 92002E | 92150-1340 | 4 | ||
| NUT,14MM | 92015 | 92015-1407 | 2 | ||
| NUT,10MM | 92015A | 92015-1415 | 3 | ||
| NUT,14MM | 92015B | 92015-1463 | 1 | ||
| COLLAR | 92027 | 92027-1885 | 4 | ||
| BEARING-NEEDLE,TA203 | 92046 | 92046-1128 | 2 | ||
| NUT-HEX-FINE | 315 | 315G1400 | 1 |
