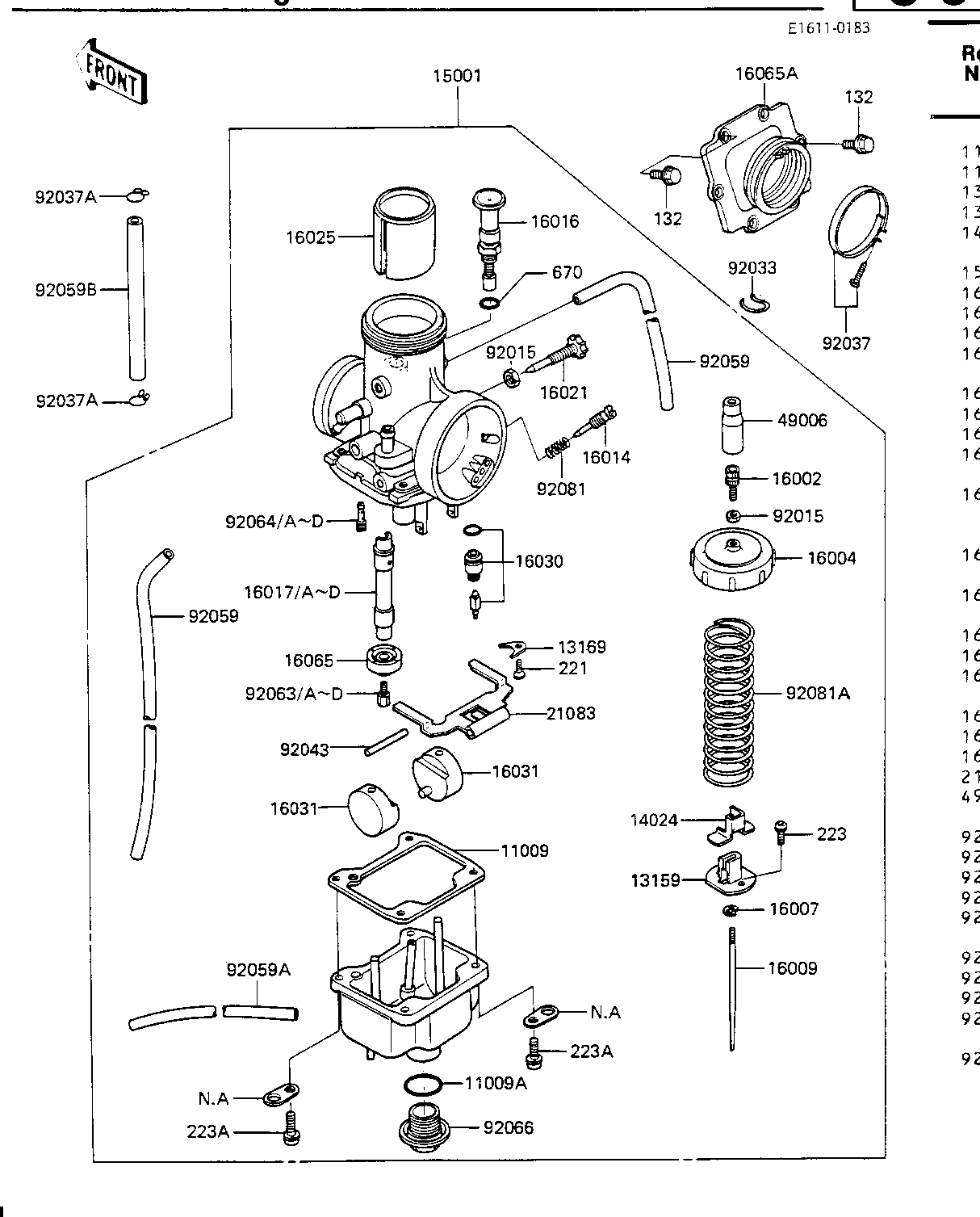

1985 KX250 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1488 1
GASKET-COVER 11009A 16038-009 1
CONNECTOR,THROTTLE 13159 13159-1010 1
PLATE,LOCK 13169 13169-1923 1
COVER,THROTTLE 14024 14025-1478 1
CARBURETOR-ASSY 15001 15001-1111 1
CABLE ADJUSTER 16002 16002-011 1
CAP-CHAMBER,MIXING 16004 16004-1056 1
SPRING SEAT THRTL VL 16007 16007-002 1
NEEDLE-JET,6DJ1 16009 16009-1251 1
SCREW 16014 16014-006 1
PLUNGER,STARTER 16016 16016-1064 1
JET-NEEDLE,R-4 16017 16017-1212 1
JET-NEEDLE,R-6 16017A 16017-1213 1 (OPTION)
JET-NEEDLE,R-2 16017B 16017-1250 1 (OPTION)
JET-NEEDLE,R-0 16017C 16017-1238 1 (OPTION)
JET-NEEDLE-R-8 16017D 16017-1246 1 (OPTION)
SCREW-THROTTLE STOP 16021 16021-1108 1
VALVE-THROTTLE,CA 3. 16025 16025-1118 1
VALVE-FLOAT,3.0 16030 16030-1060 1
FLOAT 16031 16031-1062 2
HOLDER,NEEDLE JET 16065 16065-1045 1
HOLDER-CARBURETOR 16065A 16065-1124 1
ARM 21083 21083-1055 1
BOOT,CARBURETOR 49006 49006-1169 1
NUT-CABLE ADJUST LOC 92015 16003-006 2
CIRCLIP 92033 92036-018 1
CLAMP,CARBURETOR HOL 92037 92037-1313 1
CLAMP,CHAIN OILER 92037A 92037-147 2
FLOAT PIN 92043 16032-003 1
TUBE,3.5X6.5X410 92059 92059-1142 2
TUBE,3.5X6.5X350 92059A 92059-1211 1
TUBE,5.8X10.8X230 92059B 92059-1431 1
MAIN JET NO 360A 92063 92063-032 1 (OPTION)
JET-MAIN NO 370A 92063A 92063-033 1 (OPTION)
JET-MAIN NO 330A 92063B 92063-048 1 (OPTION)
MAIN JET NO 340A 92063C 92063-049 1 (OPTION)
JET-MAIN NO 350A 92063D 92063-050 1
JET-PILOT NO 30 92064 92064-022 1
JET-PILOT NO 35 92064A 92064-023 1
JET-PILOT NO 40 92064B 92064-024 1 (OPTION)
JET-PILOT NO 25 92064C 92064-032 1 (OPTION)
JET-PILOT,#27.5 92064D 92064-1033 1 (OPTION)
PLUG,MAIN JET 92066 92066-1206 1
SPRING-THR STOP SCRE 92081 16022-007 1
SPRING,THROTTLE VALV 92081A 92081-1818 1
BOLT-FLANGED-SMALL 132 132G0620 6
SCREW CNTSNK HD 4X8 221 221B0408 1
SCREW-PAN-WS-CROS 223 223B0307 2
SCREW-PAN-WS-CROS 223A 223B0516 4
"O" RING,9MM 670 670B1509 1
