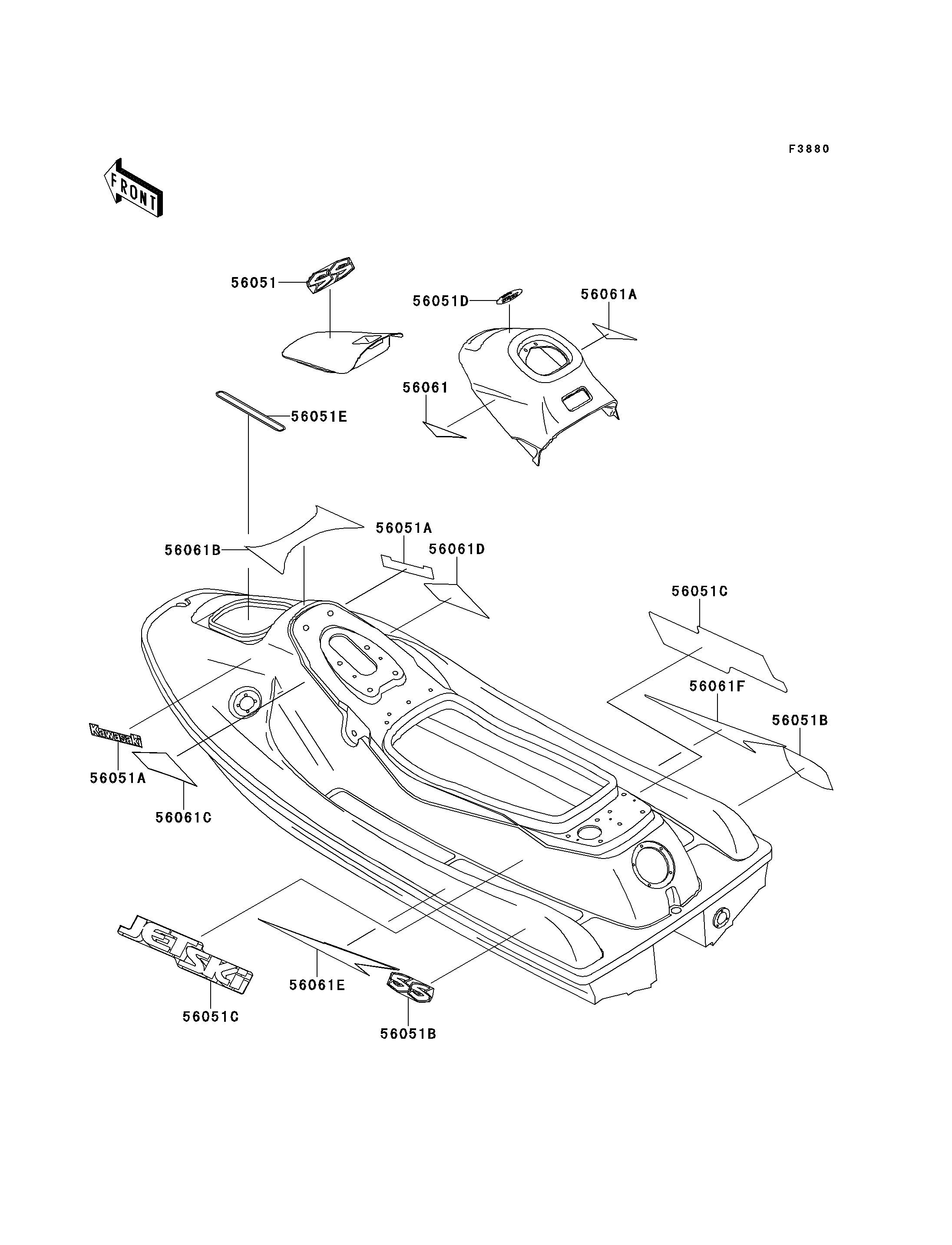

Parts Diagrams |
56051
56051A
56051A
56051B
56051B
56051C
56051C
56051D
56051E
56061
56061A
56061B
56061C
56061D
56061E
56061F
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,HATCH COVER,SS | 56051 | 56051-3723 | 1 | ||
| MARK,DECK,KAWASAKI | 56051A | 56051-3724 | 2 | ||
| MARK,DECK,SS | 56051B | 56051-3725 | 2 | ||
| MARK,DECK,JET SKI | 56051C | 56051-3726 | 2 | ||
| MARK,METER COVER,JET SKI | 56051D | 56051-3735 | 1 | ||
| MARK,MARINE ENGINE | 56051E | 56051-3741 | 1 | ||
| PATTERN,HANDLE COVER,LH | 56061 | 56061-3735 | 1 | ||
| PATTERN,HANDLE COVER,RH | 56061A | 56061-3736 | 1 | ||
| PATTERN,DECK,FR | 56061B | 56061-3737 | 1 | ||
| PATTERN,DECK,CNT,LH | 56061C | 56061-3738 | 1 | ||
| PATTERN,DECK,CNT,RH | 56061D | 56061-3739 | 1 | ||
| PATTERN,DECK,RR,LH | 56061E | 56061-3740 | 1 | ||
| PATTERN,DECK,RR,RH | 56061F | 56061-3741 | 1 |
