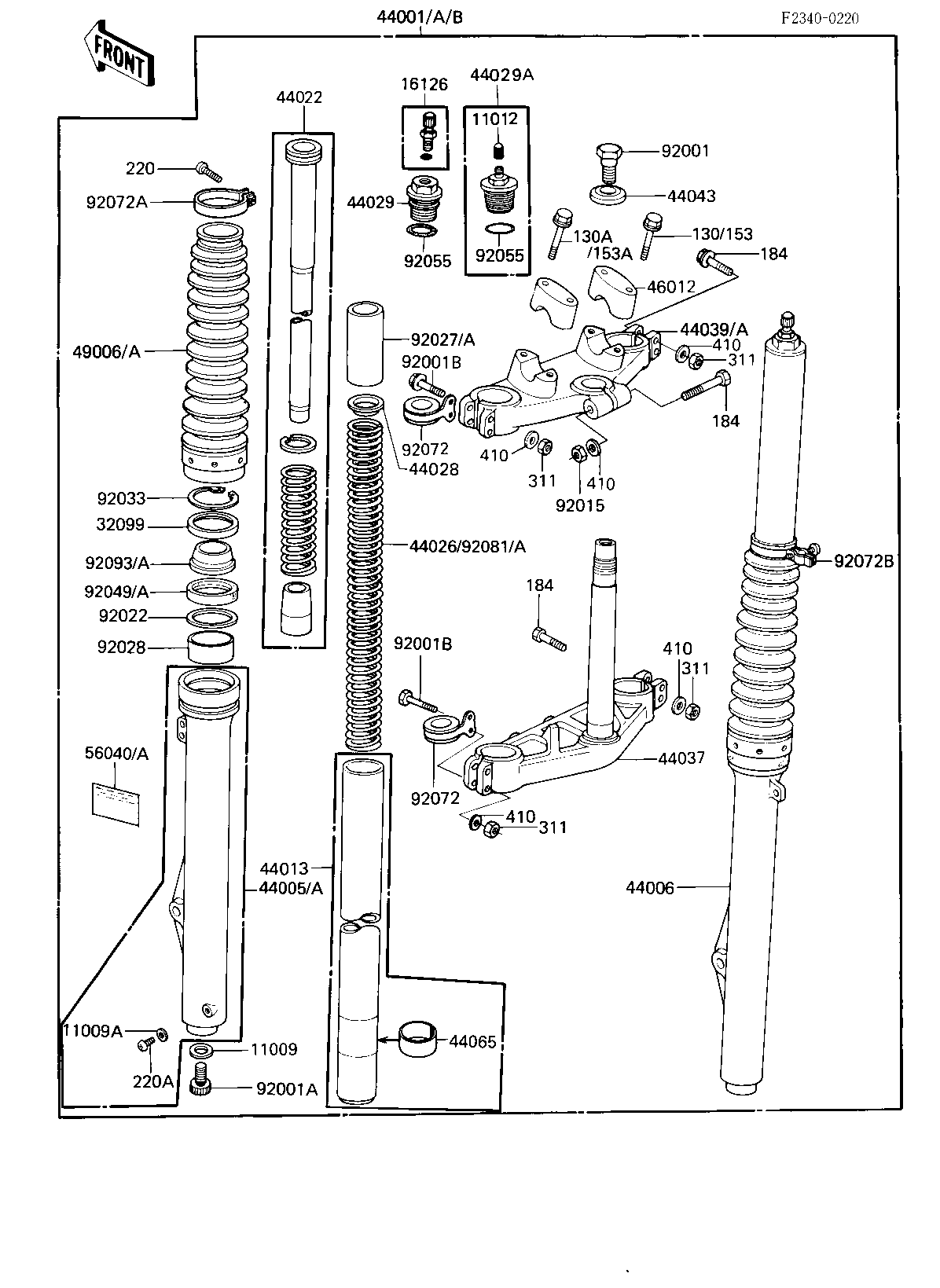

1983 KDX200 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1127 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
VALVE,AIR FRONT FORK 16126 16126-1048 2
CASE,DUST SHIELD 32099 32099-1013 2
FORK-FRONT 44001 44001-1398 1
PIPE-LEFT FORK OUTER 44005 44005-1209 1
PIPE-RIGHT FORK OUTER 44006 44006-1123 1
PIPE-FORK INNER 44013 44013-1102 2
CYLINDER-FORK 44022 44022-1088 2
SPRING-FRONT FORK 44026 44026-1205 2
GUIDE,FORK SPRING 44028 44028-1003 2
SEAT-FORK SPRING 44029 44029-1042 2
HOLDER-FORK UNDER 44037 44037-1103 1
HOLDER-FORK UPPER 44039 44039-1043 1
WASHER 44043 44043-052 1
BUSHING,FORK PIPE 44065 92028-1126 2
HOLDER-HANDLE 46012 46012-1014 2
BOOT,FORK 49006A 49006-1174 2
LABEL-WARNING 56040 56040-1002 1
BOLT,FORK TOP 92001 44041-065 1
BOLT,FORK CYLINDER 92001A 92001-1309 2
BOLT FLANGED 8X55 92001B 92001-1398 4
NUT,LOCK,8MM 92015 92015-1124 1
WASHER,FORK OUT PIPE 92022 92022-1262 2
COLLAR,FORK SPRING 92027 92027-1535 2
BUSHING-FRONT FORK,OU 92028 44065-1091 2
SNAP RING,FORK OUTER 92033 92033-1047 2
OIL SEAL,FORK OUT TUB 92049 92049-1042 2
"0" RING,FORK TOP CAP 92055 92055-1050 2
CLAMP,CABLE 92072 92072-1040 2
BAND,BOOT 92072A 92072-1046 1
BAND,BOOT,RH 92072B 92072-1094 1
SPRING,K=0.32 92081 92081-1582 2 (OPTION)
SPRING,FRONT FORK,K=0 92081A 92081-1583 2 (OPTION)
DUST SHIELD,FORK OUTR 92093 92093-1035 2
BOLT-UPSET-WS-SMALL 153 183G0835 2
BOLT-WS-SMALL 153A 153G0850 2
BOLT-UPSET-WP-SMALL 184 184G0855 5
SCREW-PAN-CROS 220 220B0316 1
SCREW PAN HEAD 4X8 220A 220B0408 2
NUT 8MM 311 311G0800 8
WASHER PLAIN 8MM 410 410B0800 9
