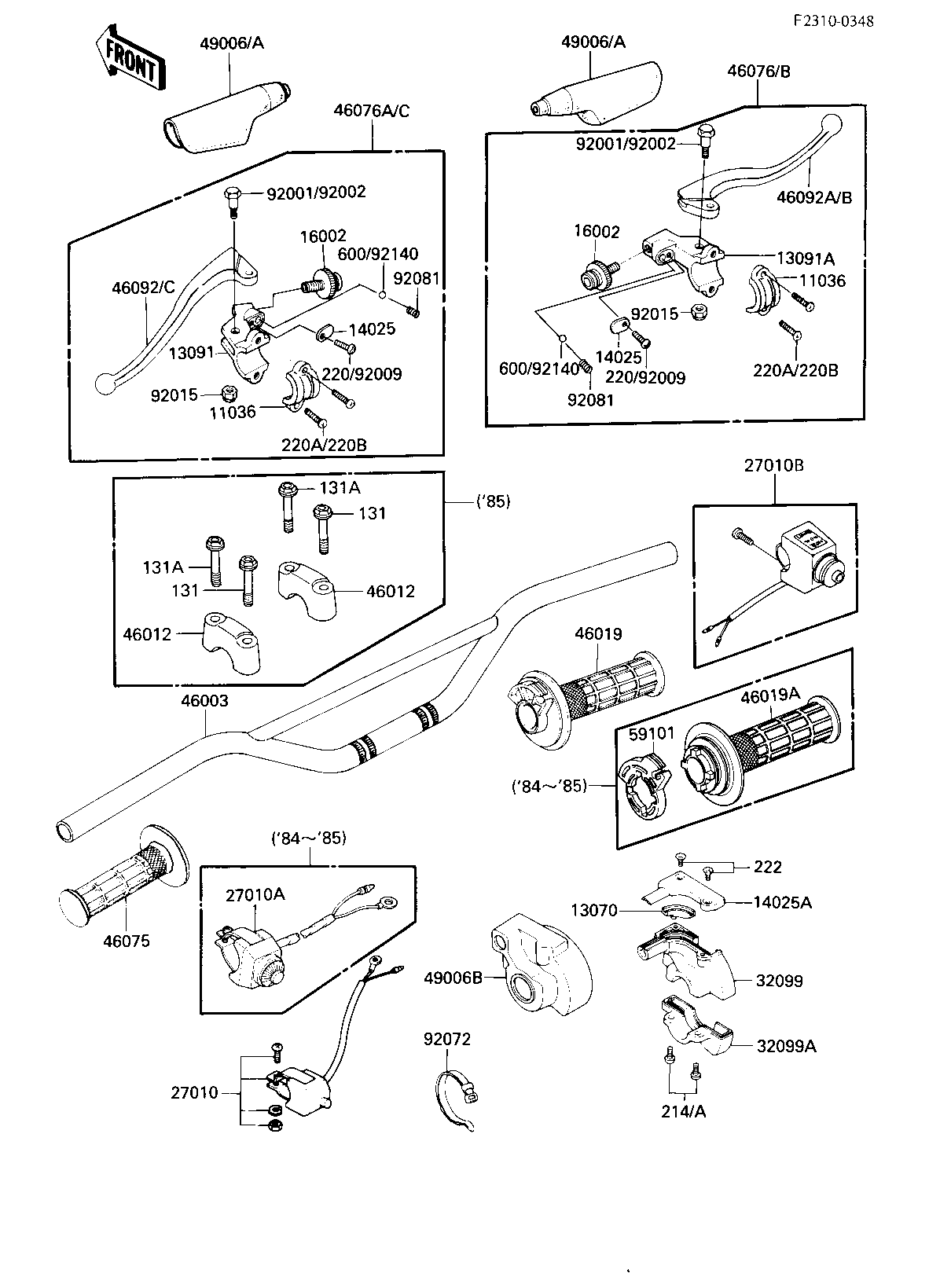

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A | 11036 | 11036-1297 | 2 | ||
| GUIDE,THROTTLE PEACE | 13070 | 13070-1073 | 1 | ||
| HOLDER,CLUTCH LEVER | 13091 | 13091-1170 | 1 | ||
| HOLDER,BRAKE LEVER | 13091A | 13091-1171 | 1 | ||
| COVER,LEVER HOLDER | 14025 | 14025-1593 | 2 | ||
| COVER,THROTTLE CASE U | 14025A | 14025-1646 | 1 | ||
| ADJUSTER-CABLE | 16002 | 16002-1012 | 2 | ||
| SWITCH,ASSY,ENG STOP | 27010 | 27010-1018 | 1 | ||
| CASE,THROTTLE UPP | 32099 | 32099-1036 | 1 | ||
| CASE,THROTTLE LWR | 32099A | 32099-1044 | 1 | ||
| HANDLEBAR | 46003 | 46003-1093 | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1026 | 1 | ||
| GRIP,LH | 46075 | 46075-1024 | 1 | ||
| LEVER-ASSY-GRIP,BRAKE | 46076 | 46076-1116 | 1 | ||
| LEVER-ASSY-GRIP,CLUTC | 46076A | 46076-1117 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1110 | 1 | ||
| LEVER-GRIP,BRAKE | 46092A | 46092-1109 | 1 | ||
| DUST COVER | 49006 | 46071-003 | 2 | ||
| BOOT,THROTTLE CASE | 49006B | 49006-1097 | 1 | ||
| BOLT,LEVER SET | 92001 | 92001-1757 | 2 | ||
| NUT | 92015 | 92019-008 | 2 | ||
| BAND,SHORT | 92072 | 92072-030 | 2 | ||
| SPRING,LEVER HOLDER | 92081 | 92081-1521 | 2 | ||
| SCREW 5X18 | 214 | 214B0518 | 2 | ||
| SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
| SCREW-PAN-CROS | 220A | 220B0514 | 4 | ||
| SCREW OVL CNTSNK 4X12 | 222 | 222E0412 | 2 | ||
| BALL STEEL 7/32' | 600 | 600A0700 | 2 |
