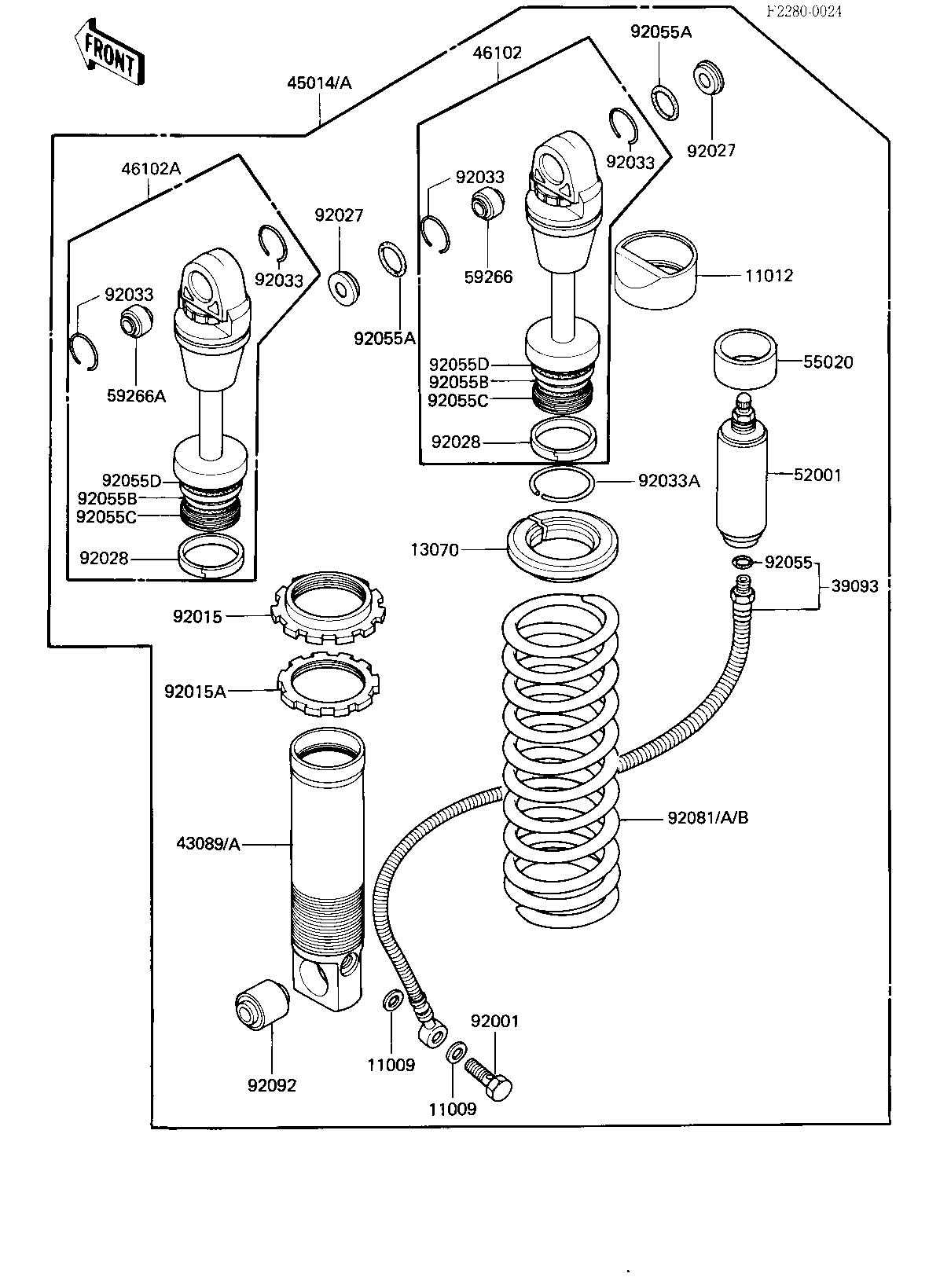

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FORK CYLINDER | 11009 | 44045-057 | 2 | ||
| CAP,REARSHOCK | 11012 | 11012-1278 | 1 | ||
| GUIDE,SPRING | 13070 | 13070-1075 | 1 | ||
| PIPE-COMP-SUSP | 39093 | 39093-1084 | 1 | ||
| CYLINDER-SHOCKABSORBE | 43089 | 43089-1049 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-1205 | 1 | ||
| ROD,REARSHOCK | 46102 | 46102-1058 | 1 | ||
| TANK-OIL,RR SHOCK | 52001 | 52001-1104 | 1 | ||
| GUARD,AIR TANK | 55020 | 55020-1044 | 1 | ||
| JOINT-BALL | 59266 | 59266-1014 | 1 | ||
| JOINT-BALL,REAR SHOCK | 59266A | 59266-1053 | 1 | ||
| BOLT,PIPE-COMP-SUSP | 92001 | 92001-1752 | 1 | ||
| NUT,SPRING ADJUST | 92015 | 92015-1239 | 1 | ||
| NUT,SPRING ADJUST LOC | 92015A | 92015-1240 | 1 | ||
| COLLAR,REARSHOCK | 92027 | 92027-1534 | 2 | ||
| BUSHING,ROD | 92028 | 92028-1198 | 1 | ||
| RING-SNAP,REARSHOCK | 92033 | 92033-1090 | 2 | ||
| RING-SNAP,REARSHOCK | 92033A | 92033-1091 | 1 | ||
| "0" RING | 92055 | 92055-1099 | 1 | ||
| RING-O,REARSHOCK | 92055A | 92055-1156 | 2 | ||
| RING-O,ROD | 92055B | 92055-1181 | 1 | ||
| RING-O,ROD | 92055C | 92055-1158 | 1 | ||
| RING-O,ROD | 92055D | 92055-1181 | 1 | ||
| SPRING,SHOCKABSORBER, | 92081 | 92081-1518 | 1 | ||
| SPRING,SHOCKABSORBER | 92081A | 92081-1584 | 1 | (OPTION) | |
| BUSHING-RUBBER,SHOCKA | 92092 | 92092-1008 | 1 |
