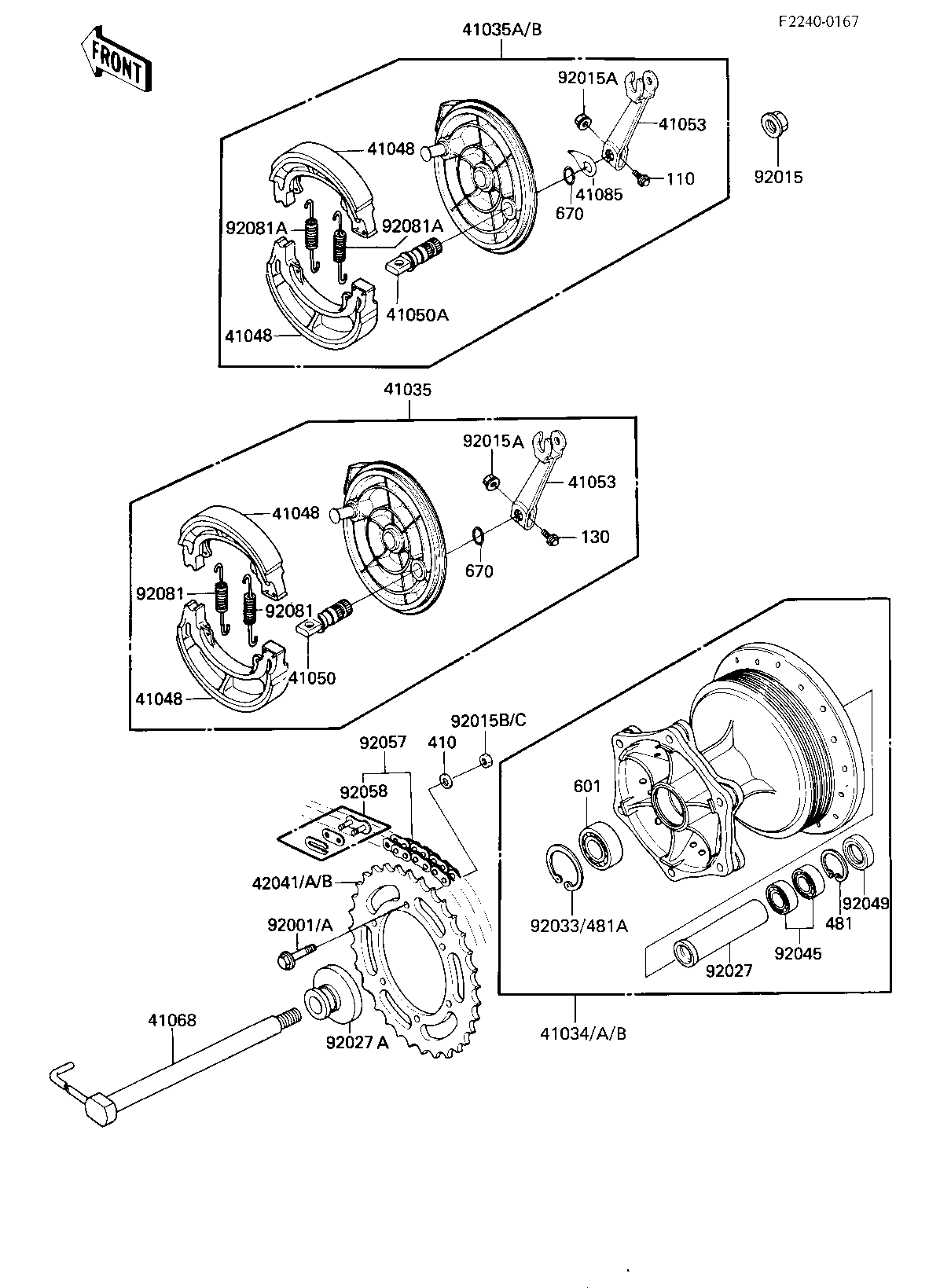

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,RR | 41034 | 41034-5002 | 1 | ||
| PANEL-ASSY-BRAKE,RR | 41035 | 41035-1094 | 1 | ||
| PANEL-ASSY-BRAKE,RR | 41035B | 41035-1186 | 2 | ||
| SHOE-BRAKE | 41048 | 42019-013 | 2 | ||
| CAM-BRAKE,REAR | 41050 | 41050-1022 | 1 | ||
| LEVER-BRAKE CAM,RR | 41053 | 41053-1033 | 1 | ||
| AXLE,RR | 41068 | 41068-1074 | 1 | ||
| SPROCKET-HUB,48T | 42041 | 42041-1125 | 1 | ||
| SPROCKET-HUB,49T | 42041B | 42041-1183 | 1 | (OPTION) | |
| BOLT,FLANGED,8X35 | 92001A | 92001-1577 | 6 | ||
| NUT,16M/M | 92015 | 92015-1015 | 1 | ||
| NUT-6MM | 92015A | 92015-1078 | 1 | ||
| NUT,8MM | 92015B | 92015-1134 | 6 | ||
| COLLAR,REAR DRUM,L=10 | 92027 | 92027-1459 | 1 | ||
| COLLAR,AXLE | 92027A | 92027-1531 | 1 | ||
| BEARING-BALL | 92045 | 92045-1053 | 2 | ||
| SEAL-OIL,BJN22325 | 92049 | 92049-1103 | 1 | ||
| CHAIN,DRIVE,112L | 92057 | 92057-1117 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1051 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 2 | ||
| BOLT,FLANGED,6X30 | 130 | 130G0630 | 6 | ||
| WASHER PLAIN 8MM | 410 | 410B0800 | 6 | ||
| CIRCLIP 30MM | 481 | 481J3000 | 1 | ||
| CIRCLIP,42MM | 481A | 92033-1041 | 1 | ||
| BEARING-BALL,#6004U | 601 | 601B6004U | 1 | ||
| "O" RING,12MM | 670 | 670B2012 | 1 |
