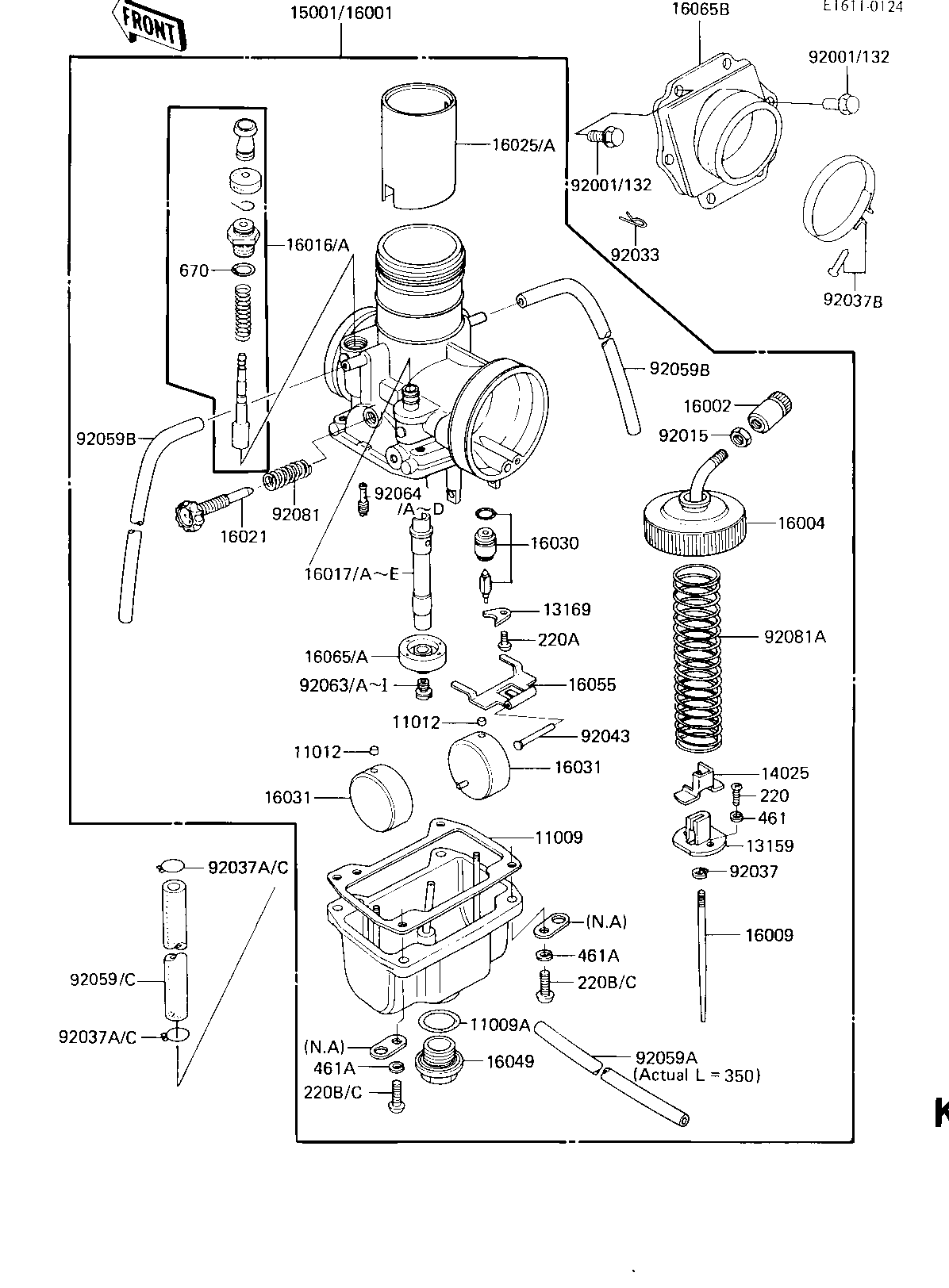

1983 KDX200 - CARBURETOR (KDX200-A1/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FLOAT CHAMBER | 11009 | 11009-1275 | 1 | ||
| GASKET-COVER | 11009A | 16038-009 | 1 | ||
| CAP,FLOAT | 11012 | 11012-1047 | 2 | ||
| CONNECTOR,THROTTLE | 13159 | 13159-1010 | 1 | ||
| PLATE, LOCK | 13169 | 13169-1190 | 1 | ||
| COVER,THROTTLE,VALVE | 14025 | 14025-1113 | 1 | ||
| CARBURETOR | 16001 | 16001-1793 | 1 | ||
| ADJUSTER,CABLE | 16002 | 16002-1006 | 1 | ||
| CAP-CHAMBER,MIXING | 16004 | 16004-1013 | 1 | ||
| NEEDLE-JET,5FJ57 | 16009 | 16009-1152 | 1 | ||
| PLUNGER,STARTER | 16016 | 16016-1026 | 1 | ||
| JET-NEEDLE,R-6 | 16017 | 16017-1106 | 1 | ||
| SCREW,THROTTLE STOP | 16021 | 16021-1034 | 1 | ||
| VALVE-THROTTLE,CA3.0 | 16025 | 16025-1082 | 1 | ||
| VALVE-FLOAT,3.3 | 16030 | 16030-1020 | 1 | ||
| FLOAT | 16031 | 16031-029 | 2 | ||
| COVER,MAIN JET | 16049 | 16049-006 | 1 | ||
| ARM,FLOAT | 16055 | 16055-009 | 1 | ||
| HOLDER-CARBURETOR | 16065A | 16065-1052 | 1 | ||
| HOLDER-CARBURETOR | 16065B | 16065-1070 | 1 | ||
| BOLT-FLANGED-SMALL | 92001 | 132G0620 | 6 | ||
| NUT CABLE ADJUST LOCK | 92015 | 16003-004 | 1 | ||
| CIRCLIP | 92033 | 92036-018 | 1 | ||
| CIRCLIP | 92037 | 16008-010 | 1 | ||
| CLAMP,CARB CONECT HOS | 92037A | 92037-056 | 2 | ||
| CLAMP,CARBURETOR HOLD | 92037B | 92037-1313 | 1 | ||
| PIN,FLOAT | 92043 | 16032-008 | 1 | ||
| HOSE,FUEL,6.5OX11.5O | 92059 | 92059-1026 | 1 | ||
| TUBE,3.5X6.5X350 | 92059A | 92059-1211 | 1 | ||
| TUBE,4X7X400,OVERFLOW | 92059B | 92059-1292 | 2 | ||
| TUBE,5.8X10.8X180 | 92059C | 92059-1443 | 1 | ||
| MAIN JET NO 130R | 92063E | 92063-057 | 1 | (OPTION) | |
| JET-MAIN NO 132.5R | 92063F | 92063-103 | 1 | (OPTION) | |
| MAIN JET NO 135R | 92063G | 92063-104 | 1 | ||
| MAIN JET,#A137.5 | 92063H | 92063-1087 | 1 | (OPTION) | |
| MAIN JET,#140A | 92063I | 92063-116 | 1 | (OPTION) | |
| JET-PILOT NO 40 | 92064B | 92064-024 | 1 | ||
| SPRING,THRTL STP SCRW | 92081 | 92081-1200 | 1 | ||
| SPRING,THROTTLE VALVE | 92081A | 92081-1432 | 1 | ||
| SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
| SCREW PAN HEAD 4X6 | 220A | 220B0406 | 1 | ||
| SCREW PAN HEAD 5X16 | 220B | 220B0516 | 4 | ||
| WASHER SPRING 3MM | 461 | 461F0300 | 2 | ||
| WASHER SPRING 5MM | 461A | 461F0500 | 4 | ||
| "O" RING,9MM | 670 | 670B1509 | 1 |
| GASKET,FLOAT CHAMBER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-COVER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,FLOAT | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONNECTOR,THROTTLE | |
| REF # | 13159 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE, LOCK | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,THROTTLE,VALVE | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR | |
| REF # | 16001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER,CABLE | |
| REF # | 16002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-CHAMBER,MIXING | |
| REF # | 16004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE-JET,5FJ57 | |
| REF # | 16009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUNGER,STARTER | |
| REF # | 16016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JET-NEEDLE,R-6 | |
| REF # | 16017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,THROTTLE STOP | |
| REF # | 16021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-THROTTLE,CA3.0 | |
| REF # | 16025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-FLOAT,3.3 | |
| REF # | 16030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT | |
| REF # | 16031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,MAIN JET | |
| REF # | 16049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM,FLOAT | |
| REF # | 16055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CARBURETOR | |
| REF # | 16065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CARBURETOR | |
| REF # | 16065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT CABLE ADJUST LOCK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CARB CONECT HOS | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CARBURETOR HOLD | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,FLOAT | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE,FUEL,6.5OX11.5O | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.5X6.5X350 | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,4X7X400,OVERFLOW | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.8X10.8X180 | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAIN JET NO 130R | |
| REF # | 92063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-MAIN NO 132.5R | |
| REF # | 92063F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| MAIN JET NO 135R | |
| REF # | 92063G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAIN JET,#A137.5 | |
| REF # | 92063H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| MAIN JET,#140A | |
| REF # | 92063I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-PILOT NO 40 | |
| REF # | 92064B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THRTL STP SCRW | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE VALVE | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 3X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X6 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X16 | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 3MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| "O" RING,9MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
