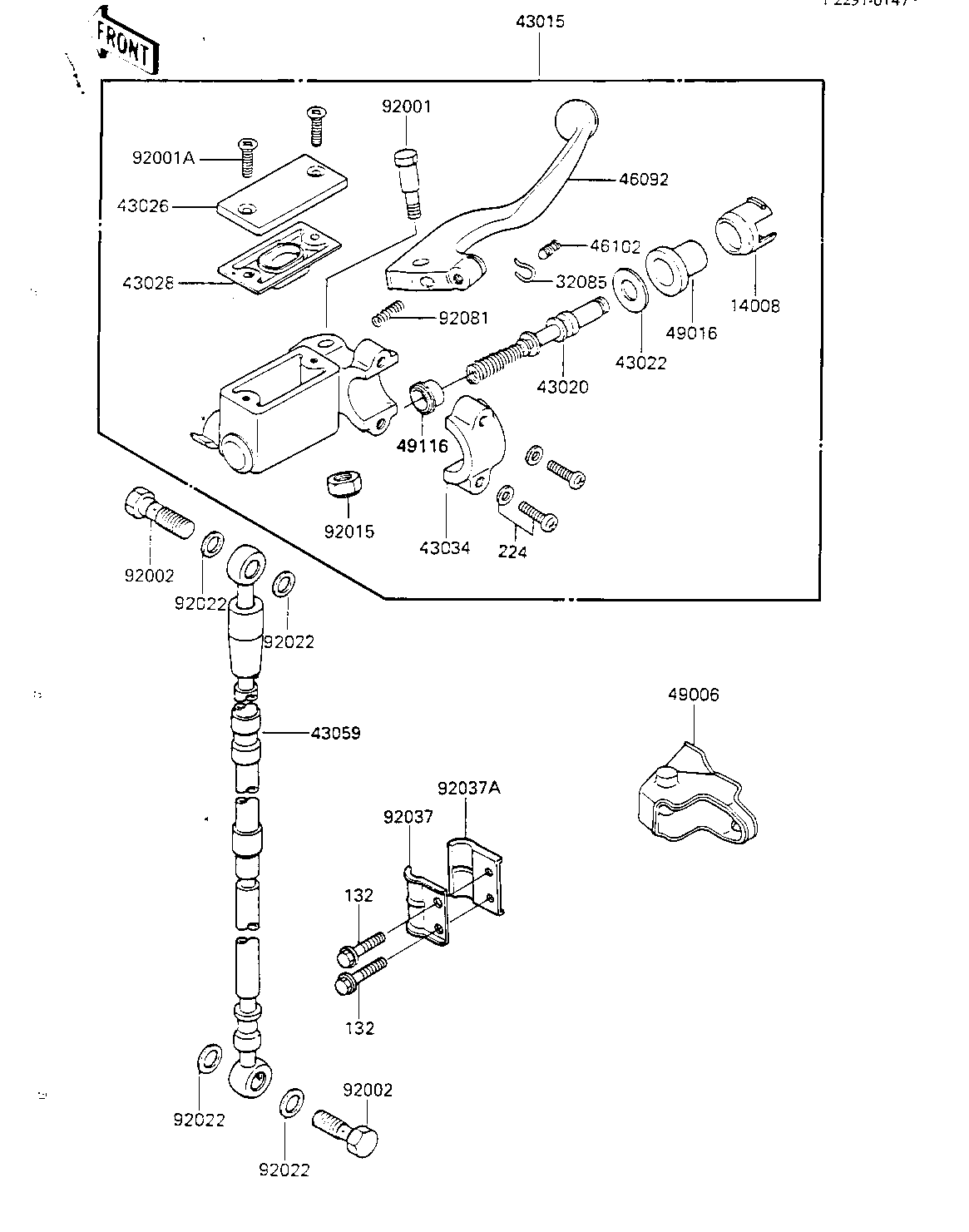

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LINER | 14008 | 14008-1030 | 1 | ||
| STOPPER,BRAKE LEVER R | 32085 | 32085-1087 | 1 | ||
| CYLINDER-ASSY-MASTER | 43015 | 43015-1281 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1021 | 1 | ||
| STOPPER-BRAKE | 43022 | 43022-1008 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1019 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1030 | 1 | ||
| HOLDER-BRAKE | 43034 | 43034-1012 | 1 | ||
| HOSE-BRAKE,FR | 43059 | 43059-1288 | 1 | ||
| LEVER-GRIP,BRAKE | 46092 | 46092-1108 | 1 | ||
| ROD,BRAKE LEVER ADJUS | 46102 | 46102-1120 | 1 | ||
| BOOT,BRAKE LEVER | 49006 | 49006-1090 | 1 | ||
| COVER-SEAL | 49016 | 49016-1035 | 1 | ||
| VALVE-ASSY,MASTER CYL | 49116 | 49116-1057 | 1 | ||
| BOLT,6X37.3,BLACK | 92001 | 92001-1512 | 1 | ||
| SCREW-COUNTERSUNK | 92001A | 92001-1532 | 2 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
| CLAMP,BRAKE HOSE,OUTS | 92037 | 92037-1362 | 1 | ||
| CLAMP,BRAKE HOSE,INSI | 92037A | 92037-1363 | 1 | ||
| SPRING,BRAKE LEVER | 92081 | 92081-1428 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 2 | ||
| SCREW-PAN-WP-CROS | 224 | 224B0625 | 2 |
