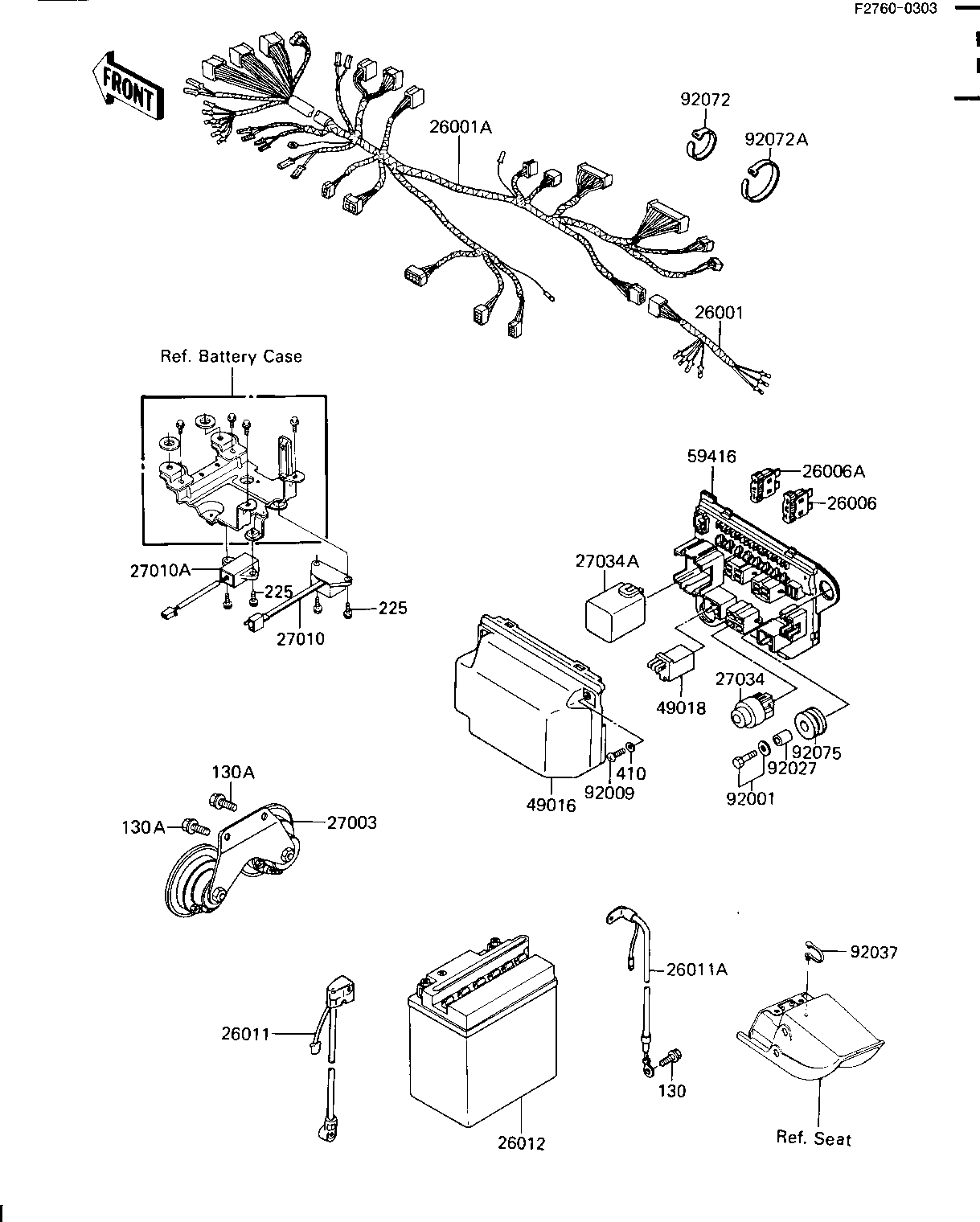

1985 LTD Shaft - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HARNESS,RR | 26001 | 26001-1650 | 1 | ||
| HARNESS,MAIN | 26001A | 26001-1651 | 1 | ||
| FUSE,30A-G | 26006 | 26006-1006 | 2 | ||
| FUSE,10A-R | 26006A | 26006-1007 | 7 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-1279 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-1280 | 1 | ||
| YUA BAT YB14L-A2 | 26012 | 26012-1008 | 1 | ||
| HORN,DOUBLE | 27003 | 27003-1209 | 1 | ||
| SWITCH,RESERVE LIGHTI | 27010 | 27010-1069 | 1 | ||
| SWITCH,TURN SIGNAL OP | 27010A | 27010-1166 | 1 | ||
| RELAY,STARTER | 27034 | 27034-1006 | 3 | ||
| RELAY,STARTER | 27034A | 27034-1007 | 1 | ||
| COVER-SEAL | 49016 | 49016-1050 | 1 | ||
| DIODE | 49018 | 49018-1006 | 2 | ||
| CASE-ELECTRIC | 59416 | 59416-1056 | 1 | ||
| BOLT,6X22 | 92001 | 92002-1262 | 2 | ||
| SCREW,TAPPING,4X10 | 92009 | 92009-1021 | 2 | ||
| COLLAR,REAR FENDER | 92027 | 92027-162 | 2 | ||
| CLAMP | 92037 | 92037-1290 | 1 | ||
| BAND,MIDDLE | 92072 | 92072-031 | 4 | ||
| BAND,LONG | 92072A | 92072-032 | 1 | ||
| DAMPER | 92075 | 92075-1562 | 2 | ||
| BOLT,FLANGED,6X8 | 130 | 130B0608 | 1 | ||
| BOLT-FLANGED,8X12,BLA | 130A | 130C0812 | 2 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0620 | 4 | ||
| WASHER PLAIN 4MM | 410 | 410B0400 | 2 |
| HARNESS,RR | |
| REF # | 26001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,30A-G | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE,10A-R | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(+) | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(-) | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT YB14L-A2 | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN,DOUBLE | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,RESERVE LIGHTI | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,TURN SIGNAL OP | |
| REF # | 27010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY,STARTER | |
| REF # | 27034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RELAY,STARTER | |
| REF # | 27034A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIODE | |
| REF # | 49018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-ELECTRIC | |
| REF # | 59416 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X22 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR FENDER | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,MIDDLE | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BAND,LONG | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X8 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X12,BLA | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WSP-CROS | |
| REF # | 225 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 4MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
