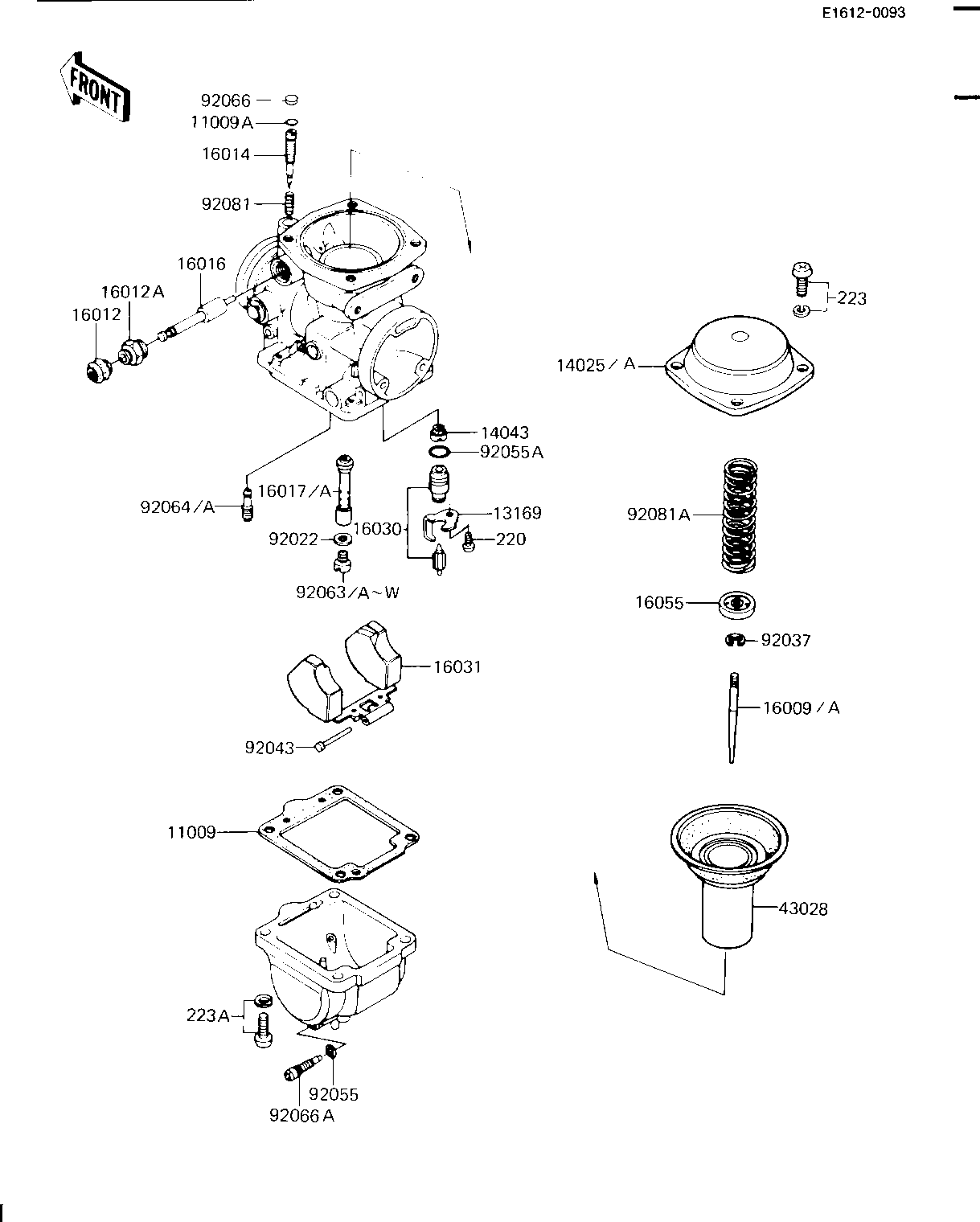

1985 LTD Shaft - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1241 4
"O" RING 11009A 16038-022 4
PLATE 13169 13169-1482 4
COVER,MIXING CHAMBER, 14025 14025-1931 2
COVER,MIXING CHAMBER, 14025A 14025-1932 2
FILTER,FLOAT VALVE 14043 14043-1010 4
NEEDLE-JET-5C50 16009 16009-1100 4 CA,US
NEEDLE-JET,5C48 (Canada) 16009A 16009-1101 4 CA
CAP-STARTER PLUNGER 16012 16012-1010 4
CAP-STARTER PLUNGER 16012A 16012-1011 4
SCREW-PILOT AIR 16014 16014-1014 4
PLUNGER 16016 16016-1019 4
JET-NEEDLE,Y-7 16017 16017-1263 4 CA,US
JET-NEEDLE (Canada) 16017A 16017-1267 4 CN
VALVE-FLOAT 16030 16030-1016 4
FLOAT 16031 16031-1013 4
PLATE,NEEDLE 16055 16055-010 4
DIAPHRAGM,VALVE 43028 43028-1034 4
WASHER MAIN JET 92022 16034-001 4
CIRCLIP 92037 16008-014 4
PIN,FLOAT 92043 16032-008 4
"0" RING 92055 92055-044 4
"0" RING 92055A 92055-1105 4
MAIN JET NO 125R 92063A 92063-055 4 CN
JET-MAIN,#A127.5 92063B 92063-1100 2 CN
MAIN JET NO 130R 92063E 92063-057 4 CN
JET-MAIN NO 117.5R 92063F 92063-077 4 (RACING USE ONLY)
MAIN JET NO 120R 92063G 92063-078 4 (RACING USE ONLY)
JET-MAIN,#A122.5 92063H 92063-1101 2
JET-MAIN NO 132.5R 92063J 92063-103 4 (RACING USE ONLY)
JET-MAIN,#A127.5 92063L 92063-1100 2
JET-MAIN,#A122.5 92063N 92063-1101 2
JET-MAIN,#A125 92063Q 92063-1102 4 (RACING USE ONLY)
JET-MAIN,#A130 92063S 92063-1103 4 (RACING USE ONLY)
JET-MAIN,#A132.5 92063T 92063-1104 4 (RACING USE ONLY)
JET-MAIN,#A120 92063U 92063-1106 4 (RACING USE ONLY)
JET-MAIN,#117.5 92063V 92063-1107 4 (RACING USE ONLY)
JET-PILOT,#A37.5 92064 92064-1036 4
PLUG,PILOT SCREW 92066 92066-1051 4
SCREW,DRAIN 92066A 92066-1064 4
SPRING,PILOT SCREW 92081 16022-016 4
SPRING,DPHRGM VALVE 92081A 92081-1363 4
SCREW PAN HEAD 4X6 220 220B0406 4
SCREW-PAN-WS-CROS 223 223B0510 14
SCREW-PAN-WS-CROS 223A 223C0516 16
