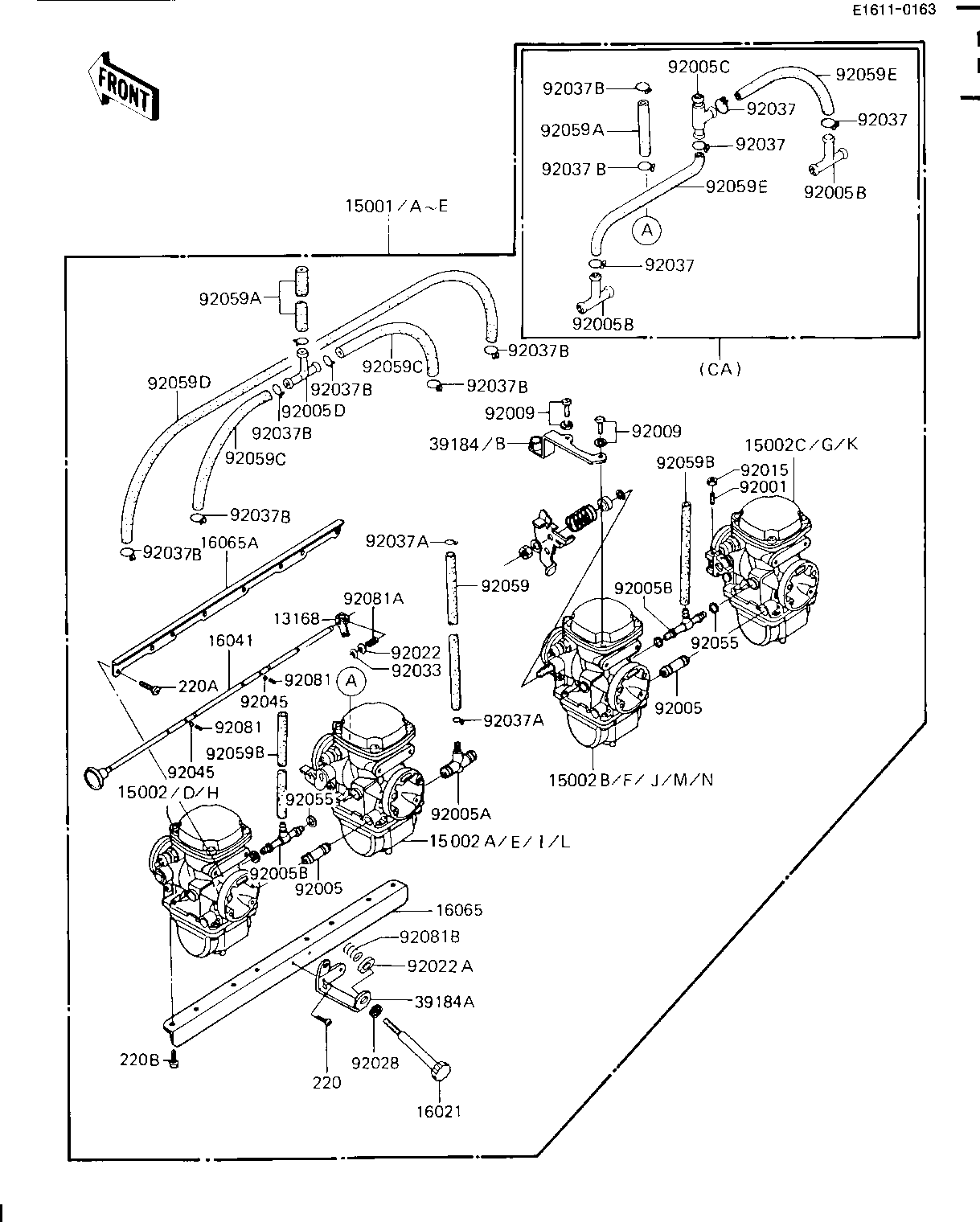

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER,CHOCK | 13168 | 13168-1091 | 4 | ||
CARBURETOR-ASSY | 15001 | 15001-1074 | 1 | US | |
CARBURATOR-ASSY (Canada) | 15001A | 15001-1075 | 1 | CN | |
CARBURETOR-ASSY | 15001B | 15001-1087 | 1 | CA | |
CARBURETOR,LH,OUTSIDE | 15002 | 15002-1090 | 1 | US | |
CARBURETOR,LH,INSIDE | 15002A | 15002-1091 | 1 | US | |
CARBURETOR,RH,INSIDE | 15002B | 15002-1092 | 1 | US | |
CARBURETOR,RH,OUTSIDE | 15002C | 15002-1093 | 1 | US | |
CARBURATOR,LH,OUTSIDE (Canada) | 15002D | 15002-1094 | 1 | CN | |
CARBURATOR,LH,INSIDE (Canada) | 15002E | 15002-1095 | 1 | CN | |
CARBURATOR,RH,INSIDE (Canada) | 15002F | 15002-1096 | 1 | CN | |
CARBURATOR,RH,OUTSIDE (Canada) | 15002G | 15002-1097 | 1 | CN | |
CARBURETOR,LH,OUTSIDE | 15002H | 15002-1098 | 1 | CA | |
CARBURETOR,LH,INSIDE | 15002I | 15002-1099 | 1 | CA | |
CARBURETOR,RH,INSIDE | 15002J | 15002-1100 | 1 | CA | |
CARBURETOR,RH,OUTSIDE | 15002K | 15002-1101 | 1 | CA | |
SCREW-THROTTLE STOP | 16021 | 16021-1103 | 1 | ||
SHAFT-CARBURETOR,CHOC | 16041 | 16041-1024 | 1 | ||
HOLDER-CARBURETOR,LWR | 16065 | 16065-1043 | 1 | ||
HOLDER-CARBURETOR,UPP | 16065A | 16065-1044 | 1 | ||
BRACKET-ASSY,THROTTLE | 39184 | 39184-1006 | 1 | ||
BRACKET-ASSY,IDLING A | 39184A | 39184-1007 | 1 | ||
BOLT,ADJUSTING | 92001 | 92001-1447 | 3 | ||
FITTING,FUEL | 92005 | 92005-1035 | 2 | ||
FITTING,FUEL | 92005A | 92005-1036 | 1 | ||
FITTING,AIR VENT | 92005B | 92005-1045 | 2 | ||
FITTING,T-TYPE | 92005C | 92005-1135 | 1 | CA | |
FITTING,T-TYPE | 92005D | 92005-1118 | 1 | CN,US | |
SCREW,PAN HEAD,5X14 | 92009 | 16033-016 | 2 | ||
NUT,THROTTLE VLV ADST | 92015 | 92015-1119 | 3 | ||
WASHER,SPRING | 92022 | 92022-1255 | 4 | ||
WASHER,THROTTLE STOP | 92022A | 92022-1491 | 1 | ||
BUSHING,IDLING ADJUST | 92028 | 92028-1266 | 1 | ||
RING-SNAP,E | 92033 | 92033-1066 | 4 | ||
CLAMP-PIPE | 92037 | 92037-072 | 4 | CA | |
CLAMP,HOSE | 92037A | 92037-1184 | 2 | ||
CLAMP,BREATHER HOSE | 92037B | 92037-174 | 2 | CA | |
CLAMP,BREATHER HOSE | 92037B | 92037-174 | 6 | US | |
CLAMP,BREATHER HOSE | 92037B | 92037-174 | 8 | CN | |
BALL,STEEL,1/8" | 92045 | 600A0400 | 2 | ||
"0" RING | 92055 | 92055-510 | 4 | ||
TUBE,7.5X12.5X250 | 92059 | 92059-1187 | 1 | ||
TUBE,5X9X150 | 92059A | 92059-1188 | 1 | ||
TUBE,6.5X9.5X400 | 92059B | 92059-1222 | 2 | ||
HOSE,OVERFLOW,5X270L | 92059D | 92059-1475 | 1 | ||
TUBE,6.5X10.5X250 | 92059E | 92059-1483 | 2 | CA | |
SPRING,FAST IDLE SHFT | 92081 | 92081-1260 | 2 | ||
SPRING,CHOCK SHAFT | 92081A | 92081-1364 | 4 | ||
SPRING,IDLING ADJUST | 92081B | 92081-1377 | 1 | ||
SCREW PAN HEAD 5X8 | 220 | 220B0508 | 1 | ||
SCREW-PAN-CROS | 220A | 220C0510 | 8 | ||
SCREW-PAN-CROS, 6X14 | 220B | 220C0614 | 8 |
