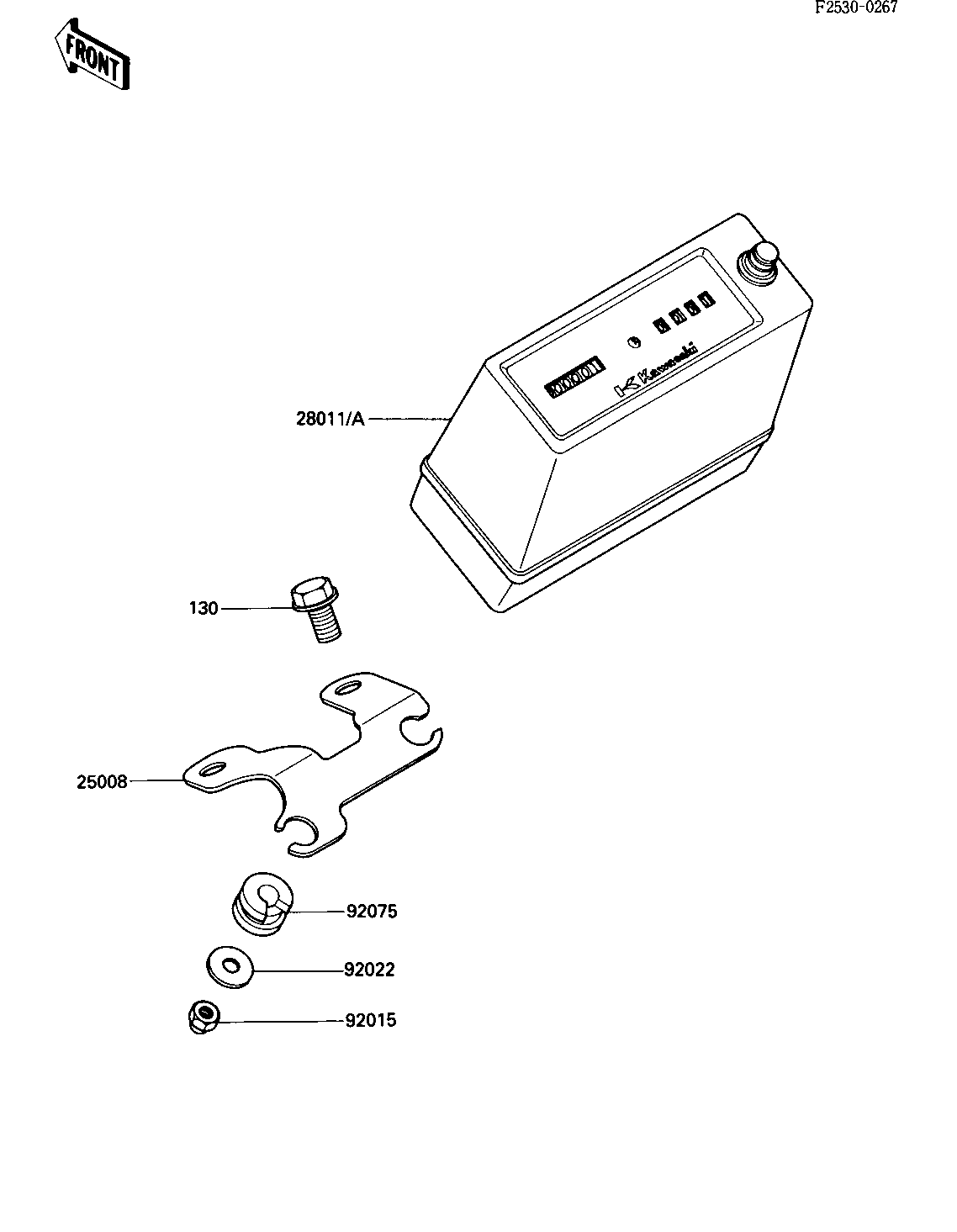

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-METER | 25008 | 25008-1121 | 1 | (OPTION) | |
| METER,MILE | 28011 | 28011-1074 | 1 | US | |
| METER,KM (Canada) | 28011A | 28011-1075 | 1 | CN | |
| NUT-CAP,5MM | 92015 | 322C0500 | 2 | (OPTION) | |
| WASHER,5.2X16X16X1.2T | 92022 | 25009-004 | 2 | (OPTION) | |
| DAMPER RUBBER,METER | 92075 | 92075-1209 | 2 | (OPTION) | |
| BOLT,FLANGE | 130 | 130B0812 | 2 | (OPTION) |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| METER,MILE | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| METER,KM (Canada) | |
| REF # | 28011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| NUT-CAP,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
| WASHER,5.2X16X16X1.2T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
| DAMPER RUBBER,METER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
| BOLT,FLANGE | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
