Parts Diagrams |

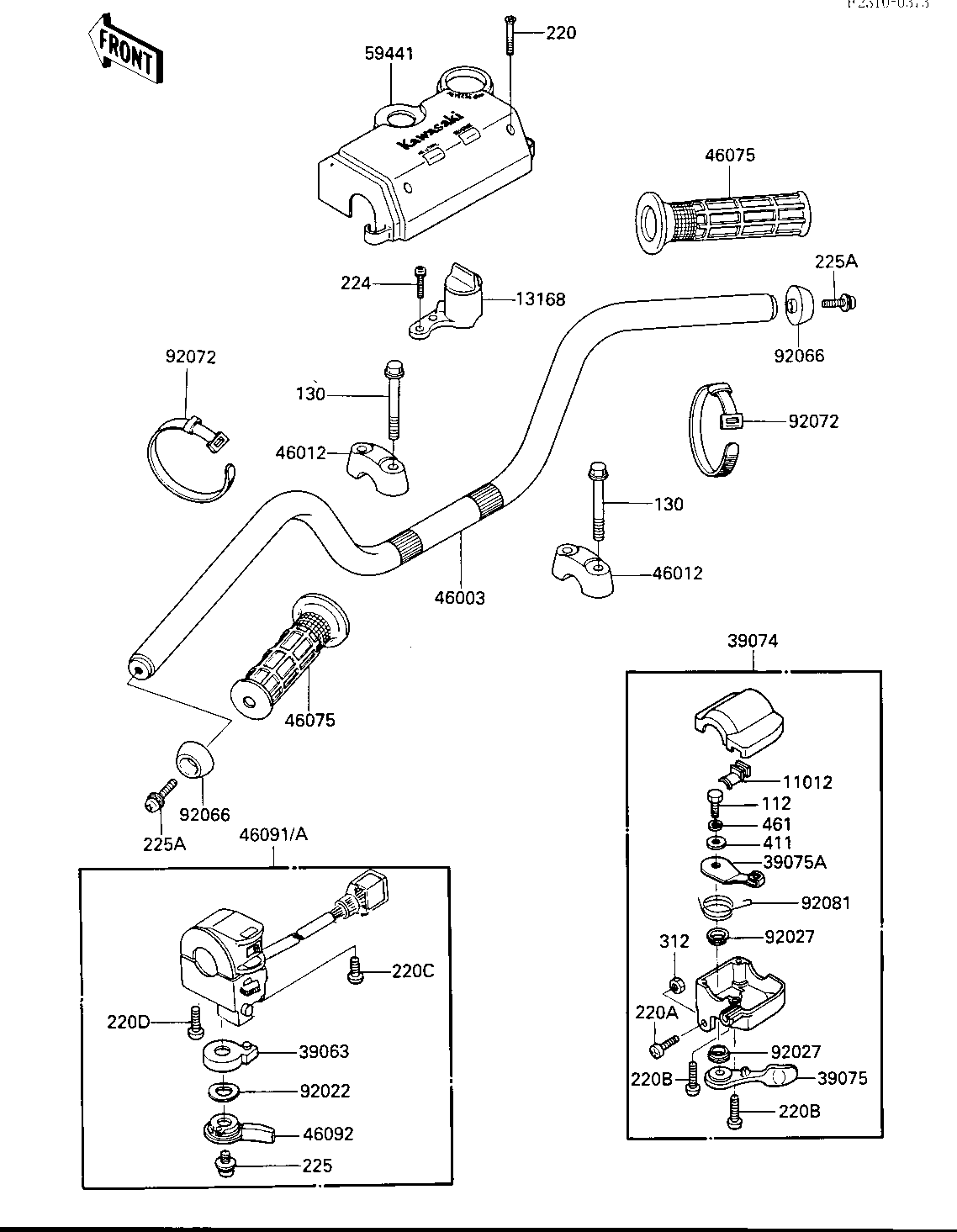

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1425 | 1 | ||
| LEVER,REVERSE | 13168 | 13168-1274 | 1 | ||
| HOUSING-CONTROL,STARTER CABLE | 39063 | 39063-3712 | 2 | ||
| LEVER-ASSY-THROTTLE | 39074 | 39074-1052 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-1053 | 1 | ||
| LEVER-THROTTLE,ARM | 39075A | 39075-1054 | 1 | ||
| HANDLE | 46003 | 46003-1196 | 1 | ||
| HOLDER-HANDLEBAR | 46012 | 46012-008 | 2 | ||
| GRIP | 46075 | 46075-1056 | 2 | ||
| HOUSING-ASSY-CONTROL, | 46091 | 46091-1389 | 1 | (SUBSTITUTES 46091-1389 ) | |
| HOUSING-ASSY-CONTROL, | 46091A | 46091-1389 | 1 | ||
| LEVER-GRIP,STARTER | 46092 | 46092-1116 | 2 | ||
| COVER-HANDLE | 59441 | 59441-1060 | 1 | ||
| WASHER,WAVE | 92022 | 92022-1635 | 2 | ||
| COLLAR | 92027 | 92027-1982 | 2 | ||
| PLUG,HANDLE | 92066 | 92066-1191 | 2 | ||
| BAND,MIDDLE | 92072 | 92072-031 | 2 | ||
| SPRING | 92081 | 92081-1685 | 1 | ||
| BOLT-UPSET | 112 | 112D0614 | 1 | ||
| BOLT-FLANGED | 130 | 130C0860 | 4 | ||
| SCREW-PAN-CROS | 220 | 220C0430 | 2 | ||
| SCREW-PAN-CROS | 220A | 220C0525 | 1 | ||
| SCREW-PAN-CROS | 220B | 220C0530 | 2 | ||
| SCREW-PAN-CROS | 220C | 220C0535 | 2 | ||
| SCREW-PAN-CROS | 220D | 220C0545 | 2 | ||
| SCREW-PAN-WP-CROS,5X20 | 224 | 224B0520 | 2 | ||
| SCREW-PAN-WSP-CROS | 225 | 225C0512 | 2 | ||
| SCREW-PAN-WSP-CROS,6X20 | 225A | 225C0620 | 2 | ||
| NUT-HEX | 312 | 312C0500 | 1 | ||
| WASHER PLAIN 6MM | 411 | 411E0600 | 1 | ||
| WASHER SPRING 6MM | 461 | 461L0600 | 1 |
