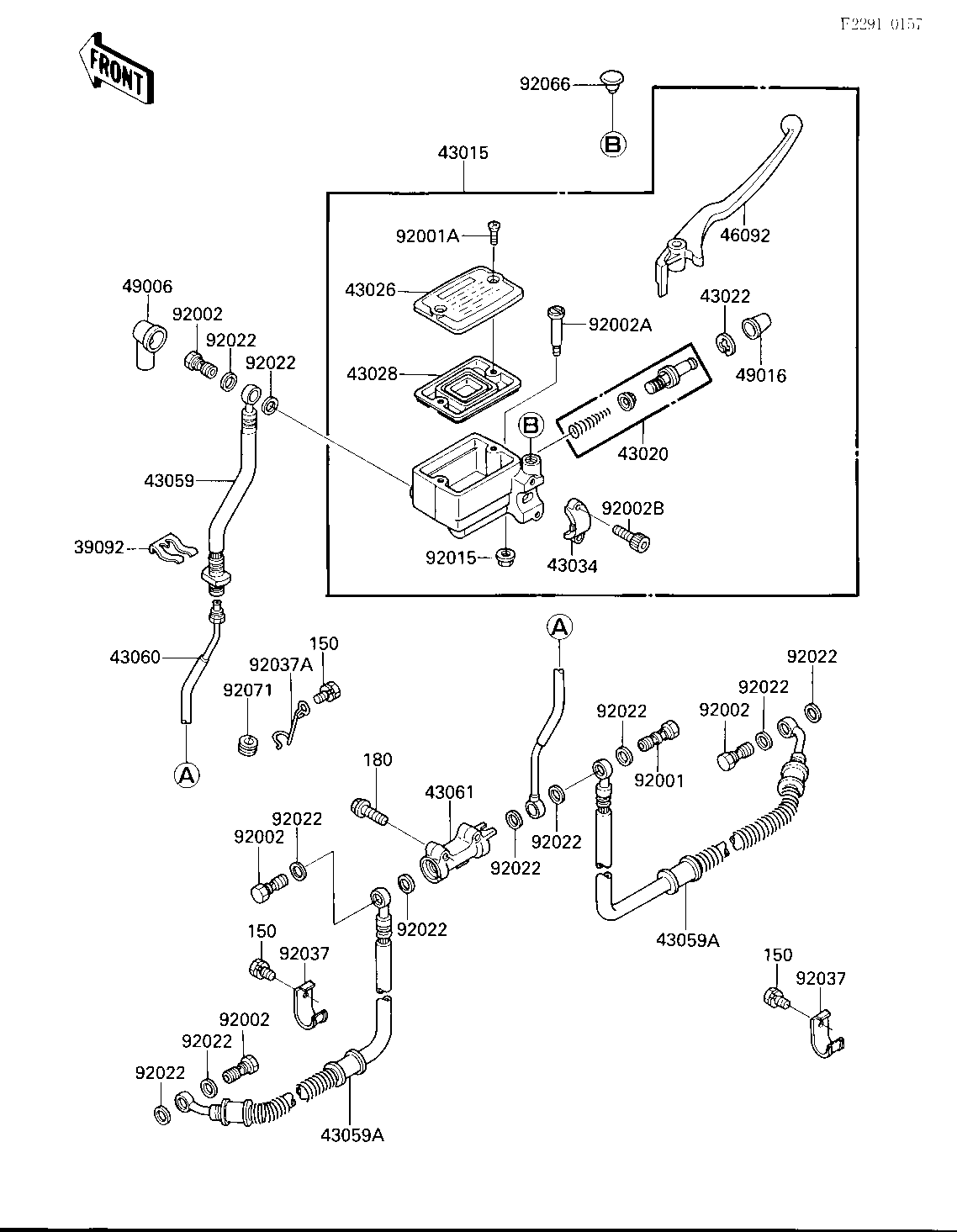

1986 Bayou 300 - FRONT MASTER CYLINDER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-HAIR | 39092 | 39092-1052 | 1 | ||
| CYLINDER-ASSY-MASTER, | 43015 | 43015-1295 | 1 | ||
| PISTON-COMP-BRAKE,FR | 43020 | 43020-1056 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE,FR | 43026 | 43026-1055 | 1 | ||
| DIAPHRAGM,MASTER CYLI | 43028 | 43028-1058 | 1 | ||
| HOLDER-BRAKE,MASTER C | 43034 | 43034-1053 | 1 | ||
| HOSE-BRAKE,FR,UPP | 43059 | 43059-1311 | 1 | ||
| HOSE-BRAKE,FR,LWR | 43059A | 43059-1312 | 2 | ||
| PIPE-BRAKE,FR | 43060 | 43060-1051 | 1 | ||
| JOINT,FR BRAKE HOSE | 43061 | 43061-1002 | 1 | ||
| LEVER-GRIP,FRONT BRAK | 46092 | 46092-1127 | 1 | ||
| BOOT,DUST | 49006 | 49006-1041 | 1 | ||
| COVER-SEAL,MASTER CYL | 49016 | 49016-1044 | 1 | ||
| BOLT | 92001 | 92002-1909 | 1 | ||
| BOLT,MASTER CYLINDER | 92001A | 92001-1727 | 2 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 4 | ||
| BOLT,LEVER SET | 92002A | 92002-1322 | 1 | ||
| BOLT,SOCKET,6X10 | 92002B | 92002-1324 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 11 | ||
| CLAMP | 92037 | 92037-1683 | 2 | ||
| CLAMP | 92037A | 92037-1684 | 1 | ||
| PLUG,9.5X8 | 92066 | 92066-1077 | 1 | ||
| GROMMET | 92071 | 92071-1128 | 1 | ||
| BOLT-WS,6X12 | 150 | 150C0612 | 3 | ||
| BOLT-UPSET-WS | 180 | 180D0630 | 2 |
