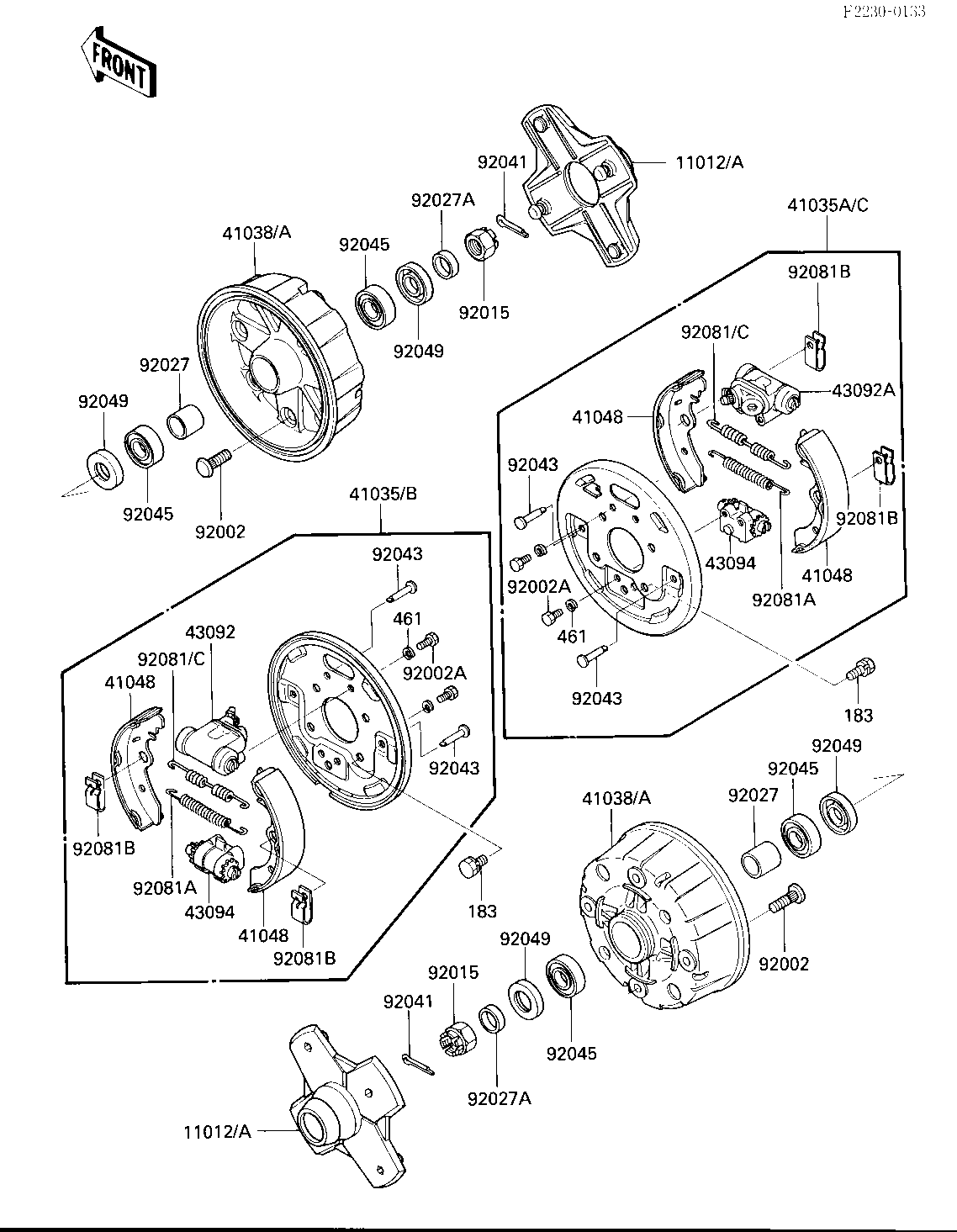

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1452 | 2 | ||
| CAP,WHEEL | 11012A | 11012-1480 | 2 | (OPTION) | |
| PANEL-ASSY-BRAKE,FR,L | 41035 | 41035-1202 | 1 | ( - JKALF8A1 GA004249) | |
| PANEL-ASSY-BRAKE,FR,R | 41035A | 41035-1203 | 1 | ( - JKALF8A1 GA004249) | |
| PANEL-ASSY-BRAKE,FR,L | 41035B | 41035-1202 | 1 | (JKALF8A1 GA004250 - ) | |
| PANEL-ASSY-BRAKE,FR,R | 41035C | 41035-1203 | 1 | (JKALF8A1 GA004250 - ) | |
| DRUM,FR | 41038 | 41038-1164 | 2 | ( - JKALF8A1 GA004249) | |
| DRUM,FR | 41038A | 41038-1164 | 2 | (JKALF8A1 GA004250 - ) | |
| SHOE-BRAKE | 41048 | 41048-1061 | 8 | ||
| CYLINDER,BRAKE,FR,LH | 43092 | 43092-1051 | 2 | ||
| CYLINDER,BRAKE,FR,RH | 43092A | 43092-1052 | 2 | ||
| ADJUSTER,BRAKE | 43094 | 43094-1051 | 4 | ||
| BOLT,10X30 | 92002 | 92002-1388 | 8 | ||
| BOLT | 92002A | 92002-1586 | 16 | ||
| NUT CASTLE,18MM | 92015 | 42045-018 | 2 | ||
| COLLAR,20X25X25 | 92027 | 92027-1898 | 2 | ||
| COLLAR,20X25X9 | 92027A | 92027-1899 | 2 | ||
| COTTER,4.0X35 | 92041 | 92041-1053 | 2 | ||
| PIN | 92043 | 92043-1295 | 8 | ||
| BEARING-BALL | 92045 | 92045-1148 | 4 | ||
| SEAL-OIL | 92049 | 92049-1224 | 4 | ||
| SPRING,SHOE | 92081 | 92081-1970 | 2 | ||
| SPRING,SHOE | 92081A | 92081-1903 | 4 | ||
| SPRING,SHOE CLAMP | 92081B | 92081-1904 | 8 | ||
| SPRING,SHOE | 92081C | 92081-1970 | 2 | ||
| BOLT-UPSET-WS-SMALL | 183 | 183J0814 | 8 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 16 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,WHEEL | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PANEL-ASSY-BRAKE,FR,L | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALF8A1 GA004249) |
| PANEL-ASSY-BRAKE,FR,R | |
| REF # | 41035A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALF8A1 GA004249) |
| PANEL-ASSY-BRAKE,FR,L | |
| REF # | 41035B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKALF8A1 GA004250 - ) |
| PANEL-ASSY-BRAKE,FR,R | |
| REF # | 41035C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKALF8A1 GA004250 - ) |
| DRUM,FR | |
| REF # | 41038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | ( - JKALF8A1 GA004249) |
| DRUM,FR | |
| REF # | 41038A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (JKALF8A1 GA004250 - ) |
| SHOE-BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CYLINDER,BRAKE,FR,LH | |
| REF # | 43092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CYLINDER,BRAKE,FR,RH | |
| REF # | 43092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER,BRAKE | |
| REF # | 43094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X30 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,20X25X25 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,20X25X9 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COTTER,4.0X35 | |
| REF # | 92041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOE | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOE CLAMP | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOE | |
| REF # | 92081C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS-SMALL | |
| REF # | 183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
