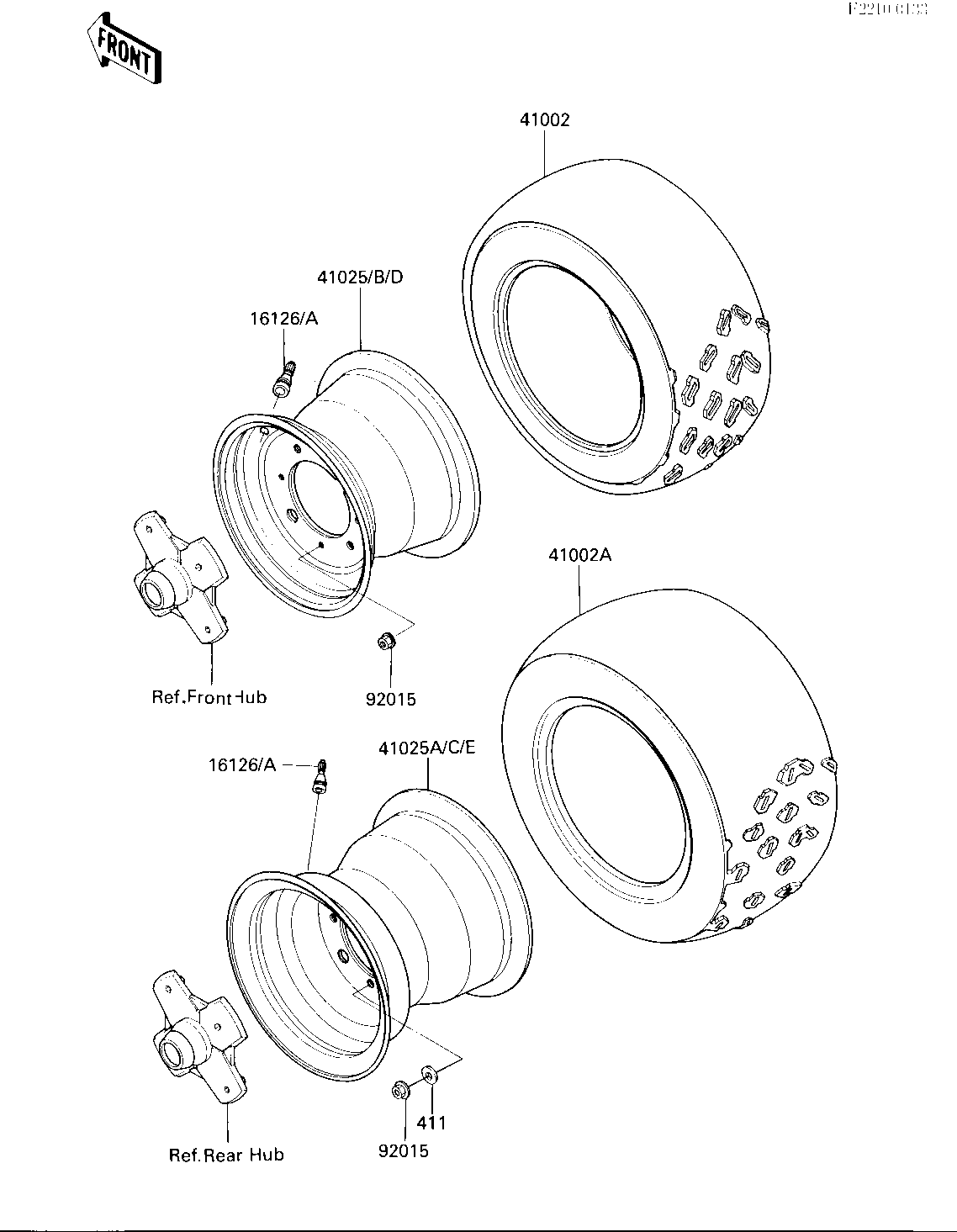

1986 Bayou 300 - WHEELS/TIRES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-1140 4 CN
VALVE,TIRE 16126A 16126-4001 4 US
TIRE,FR,22X9.00-10 KT 41002 41002-1525 2
TIRE,RR,24X11.00-10 K 41002A 41002-1526 2
RIM,FR,10X7.00,AL 41025 41025-1124 2 (OPTION)
RIM,RR,10X8.50,AL 41025A 41025-1125 2 (OPTION)
RIM-FRONT-SIL 41025B 41025-1128-F2 2 US
RIM-REAR-SILVER 41025C 41025-1129-F2 2 US
41025-1128-F2 (Canada) 41025D 41025-1152-F2 2 CN
41025-1129-F2 (Canada) 41025E 41025-1153-F2 2 CN
NUT,FLANGED,10MM 92015 92015-1335 16
WASHER PLAIN 10MM 411 411B1000 8
