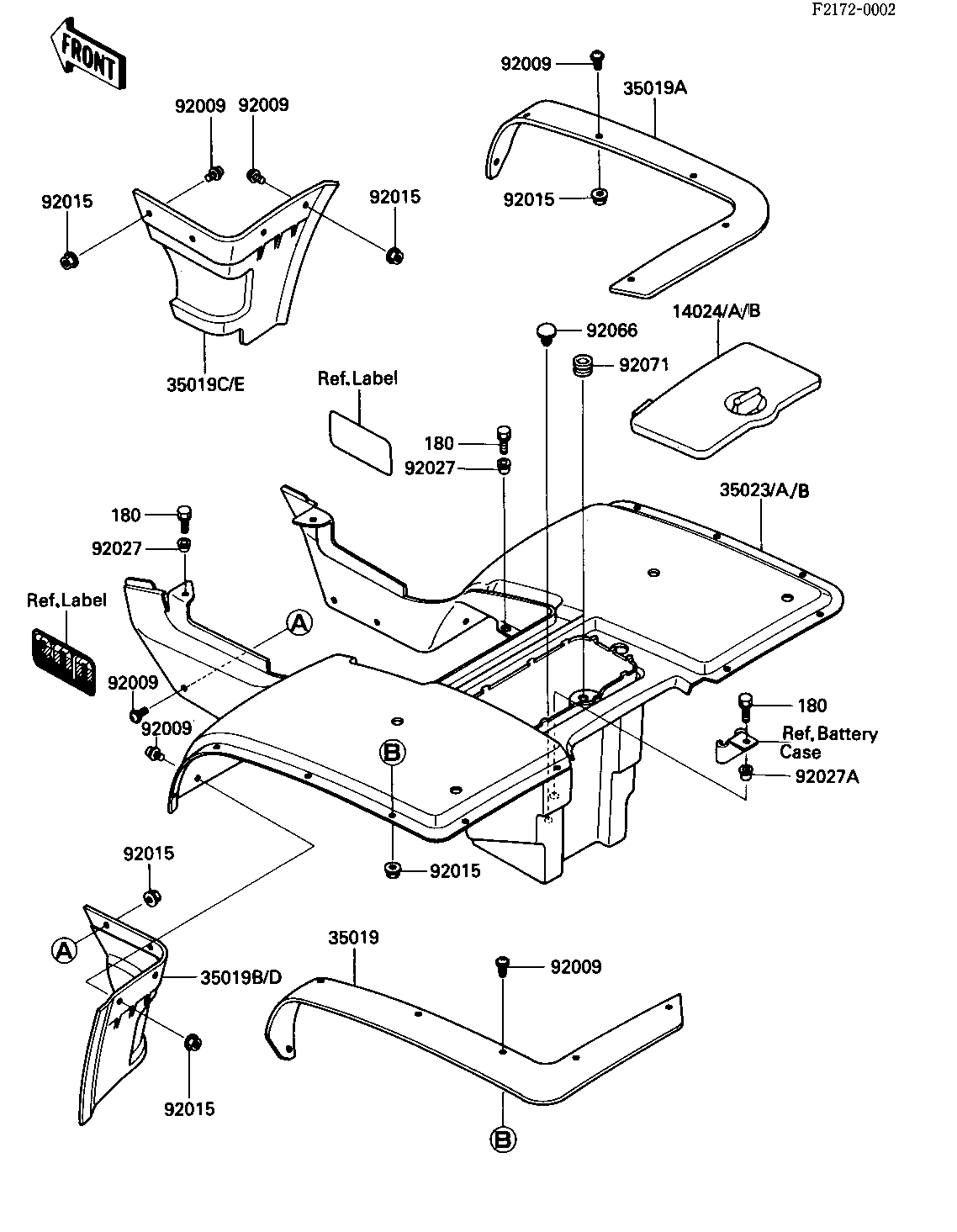

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,REAR FENDER,EBONY (Canad | 14024 | 14024-1095-6C | 1 | CN | |
| COVER-FRAME,EBONY | 14024A | 14024-1095-6D | 1 | US | |
| COVER-FRAME-RED | 14024B | 14024-1095-6L | 1 | ||
| FLAP,RR,LH | 35019 | 35019-1150 | 1 | ||
| FLAP,RR,RH | 35019A | 35019-1151 | 1 | ||
| FLAP,RR,LWR,LH | 35019B | 35019-1152 | 1 | US | |
| FLAP,RR,LWR,RH | 35019C | 35019-1153 | 1 | US | |
| FLAP (Canada) | 35019D | 35019-1160 | 1 | CN | |
| FLAP (Canada) | 35019E | 35019-1161 | 1 | CN | |
| FENDER-REAR,EBONY (Canada) | 35023 | 35023-1139-6C | 1 | CN | |
| FENDER-REAR-EBONY | 35023A | 35023-1139-6D | 1 | US | |
| FENDER-REAR-RED | 35023B | 35023-1139-6L | 1 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 20 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1237 | 20 | ||
| COLLAR,REAR FENDER | 92027 | 92027-1181 | 4 | ||
| COLLAR,L=5.6 | 92027A | 92027-1933 | 2 | ||
| RUBBER PLUG | 92066 | 92074-038 | 1 | ||
| GROMMET | 92071 | 92071-1131 | 1 | ||
| BOLT-UPSET-WS | 180 | 180D0618 | 6 |
| COVER,REAR FENDER,EBONY (Canad | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| COVER-FRAME,EBONY | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| COVER-FRAME-RED | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,RR,LH | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,RR,RH | |
| REF # | 35019A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,RR,LWR,LH | |
| REF # | 35019B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FLAP,RR,LWR,RH | |
| REF # | 35019C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FLAP (Canada) | |
| REF # | 35019D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| FLAP (Canada) | |
| REF # | 35019E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| FENDER-REAR,EBONY (Canada) | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| FENDER-REAR-EBONY | |
| REF # | 35023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FENDER-REAR-RED | |
| REF # | 35023B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR FENDER | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=5.6 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RUBBER PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
