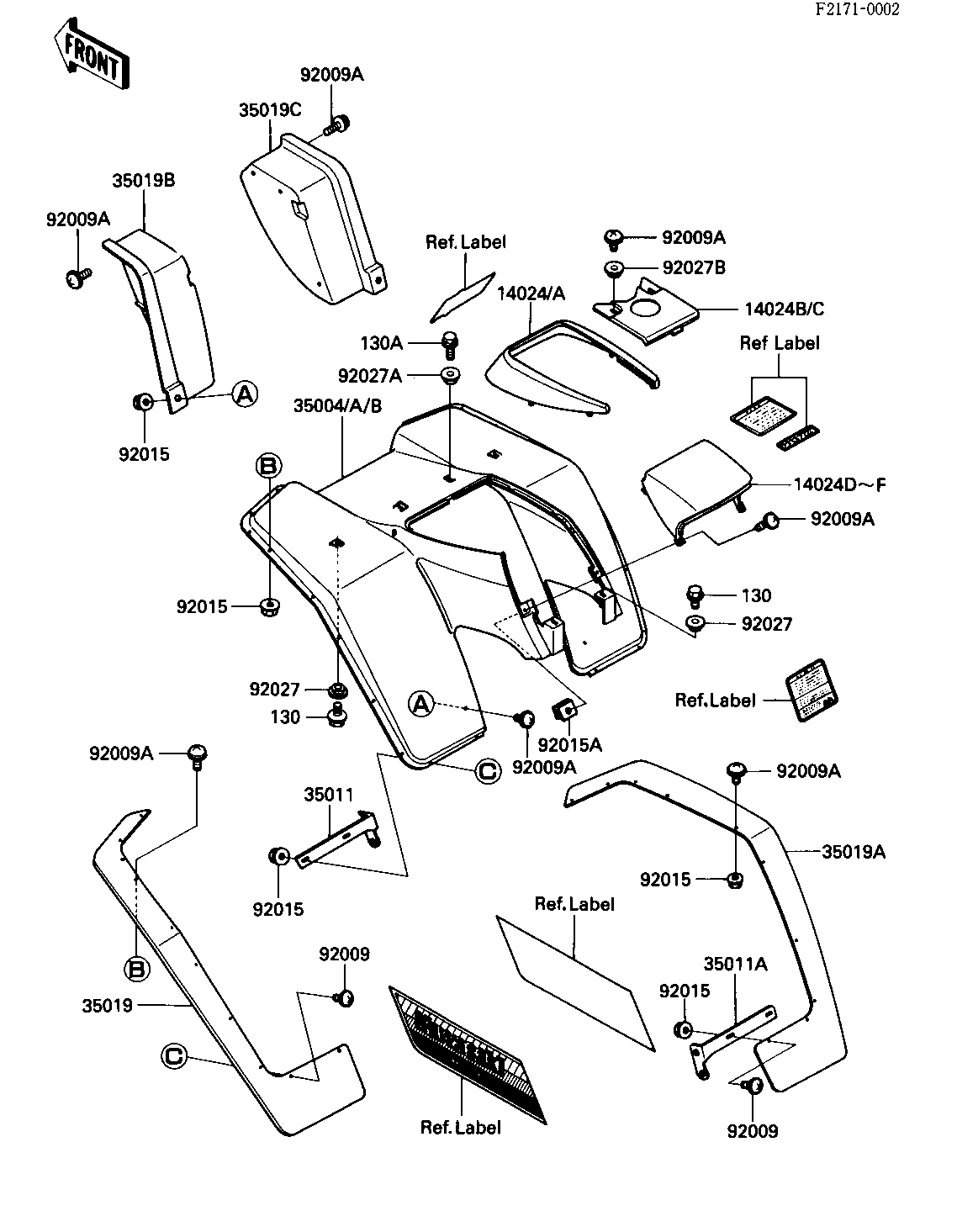

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FRONT FENDER,FR,EBO (Can | 14024 | 14024-1064-6C | 1 | CN | |
| COVER-FRONT-EBONY | 14024A | 14024-1064-6D | 1 | US | |
| 14024-1080-6D (Canada) | 14024B | 14024-1080-6C | 1 | CN | |
| COVER-REAR | 14024C | 14024-1080-6D | 1 | US | |
| COVER,FRONT FENDER,RR,EBO (Can | 14024D | 14024-1093-6C | 1 | CN | |
| COVER-REAR-EBONY | 14024E | 14024-1093-6D | 1 | US | |
| COVER-REAR-RED | 14024F | 14024-1093-6L | 1 | ||
| FENDER-FRONT,EBONY (Canada) | 35004 | 35004-1172-6C | 1 | CN | |
| FENDER-FRONT-EBONY | 35004A | 35004-1172-6D | 1 | CN | |
| FENDER-FRONT-RED | 35004B | 35004-1172-6L | 1 | ||
| STAY | 35011 | 35011-1259 | 1 | ||
| STAY | 35011A | 35011-1260 | 1 | ||
| FLAP,FR,LH | 35019 | 35019-1146 | 1 | ||
| FLAP,FR,RH | 35019A | 35019-1147 | 1 | ||
| FLAP,FR,INSIDE,LH | 35019B | 35019-1148 | 1 | ||
| FLAP,FR,INSIDE,RH | 35019C | 35019-1149 | 1 | ||
| SCREW | 92009 | 92009-1663 | 4 | ||
| SCREW,6X14 | 92009A | 92009-1288 | 28 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1237 | 22 | ||
| NUT | 92015A | 92015-1678 | 2 | ||
| COLLAR | 92027 | 92027-122 | 4 | ||
| COLLAR | 92027A | 92027-1909 | 2 | ||
| COLLAR,L=4.7 | 92027B | 92027-1964 | 2 | ||
| BOLT-FLANGED,6X16 | 130 | 130C0616 | 4 | ||
| BOLT-FLANGED,8X20 | 130A | 130C0820 | 2 |
| COVER,FRONT FENDER,FR,EBO (Can | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| COVER-FRONT-EBONY | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| 14024-1080-6D (Canada) | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| COVER-REAR | |
| REF # | 14024C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| COVER,FRONT FENDER,RR,EBO (Can | |
| REF # | 14024D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| COVER-REAR-EBONY | |
| REF # | 14024E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| COVER-REAR-RED | |
| REF # | 14024F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,EBONY (Canada) | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| FENDER-FRONT-EBONY | |
| REF # | 35004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| FENDER-FRONT-RED | |
| REF # | 35004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY | |
| REF # | 35011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FR,LH | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FR,RH | |
| REF # | 35019A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FR,INSIDE,LH | |
| REF # | 35019B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FR,INSIDE,RH | |
| REF # | 35019C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 28 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=4.7 | |
| REF # | 92027B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
