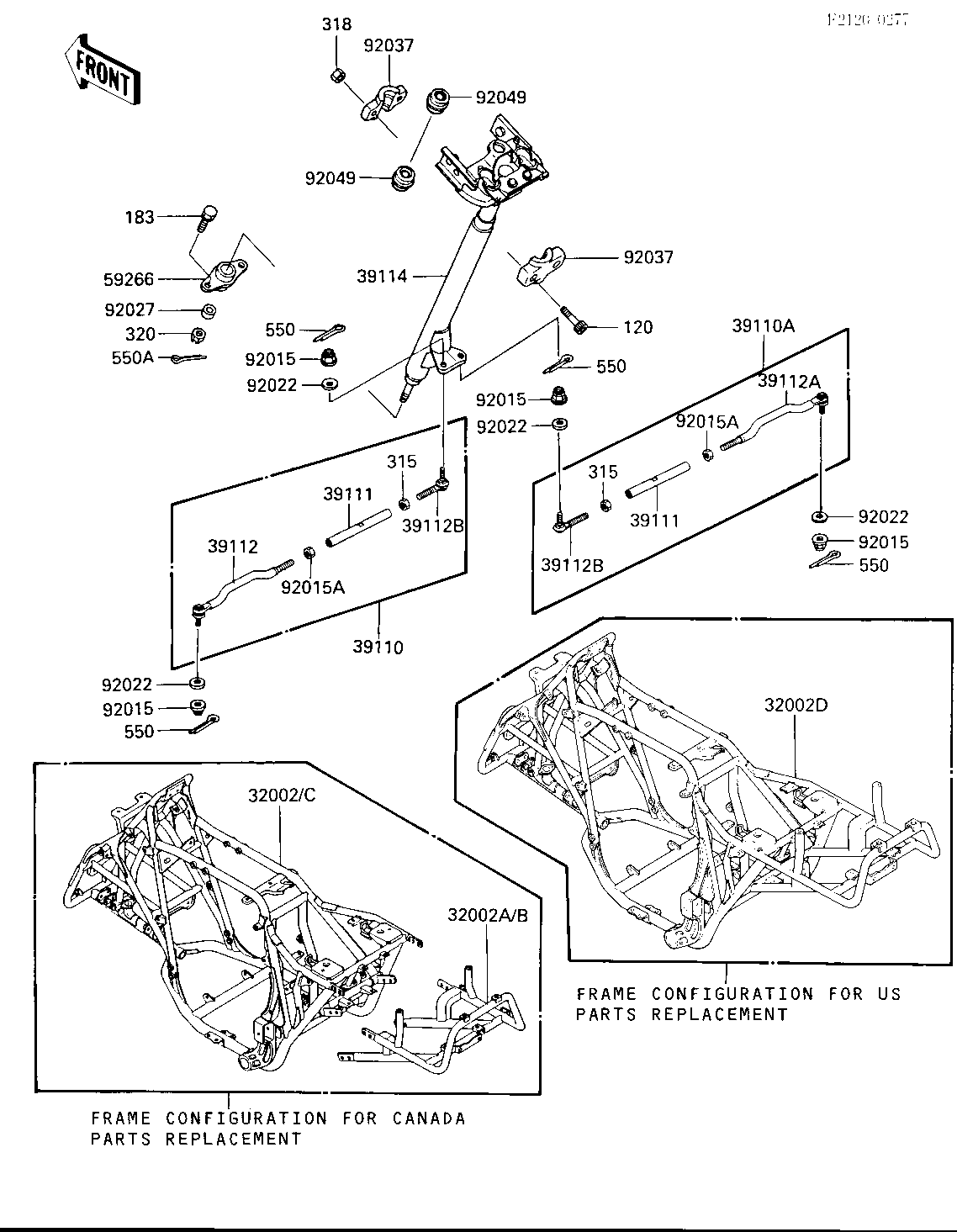

1986 Bayou 300 - FRAME/STEERING

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME,COMP 32002 32002-1906 1 CN
FRAME-COMP,RR 32002A 32002-1811 1 CN
FRAME-COMP,RR 32002B 32002-1811 1 (NOT AVAILABLE, SEE REF NO. 32
FRAME-COMP,RR 32002B 32002-1811 1 (NOT AVAILABLE, SEE REF NO. 32
FRAME,COMP 32002C 32002-1906 1 (NOT AVAILABLE, SEE REF NO. 32
FRAME,COMP 32002C 32002-1906 1 (NOT AVAILABLE, SEE REF NO. 32
FRAME,COMP 32002D 32002-1906 1 US
ROD-ASSY-TIE,LH 39110 39110-1061 1
ROD-ASSY-TIE,RH 39110A 39110-1062 1
ROD-TIE 39111 39111-1062 2
RODEND-TIE 39112 39112-1055 1
RODEND-TIE 39112A 39112-1056 1
RODEND-TIE 39112B 39112-1057 2
SHAFT-COMP-STRG 39114 39114-1052 1
JOINT-BALL 59266 59266-1066 1
NUT,LOCK,FLANGED,10MM 92015 92015-1338 4
NUT,LOCK,12MM 92015A 92015-1532 2
WASHER,PLAIN 92022 92022-239 4
COLLAR,10X21.3X7 92027 92027-1817 1
CLAMP,STEERING SHAFT 92037 92037-1572 2
SEAL-OIL,MY25X33X8 92049 92049-1199 2
BOLT,ALLEN,8X45 120 120P0845 2
BOLT-UPSET-WS-SMALL 183 183G0822 2
NUT-HEX-FINE 315 315C1200 2
NUT 8MM 318 318B0800 2
NUT-CASTLE 320 320H1000 1
PIN COTTER 2.0X15 550 550D2015 4
PIN,COTTER,2.5X18 550A 550D2518 1
