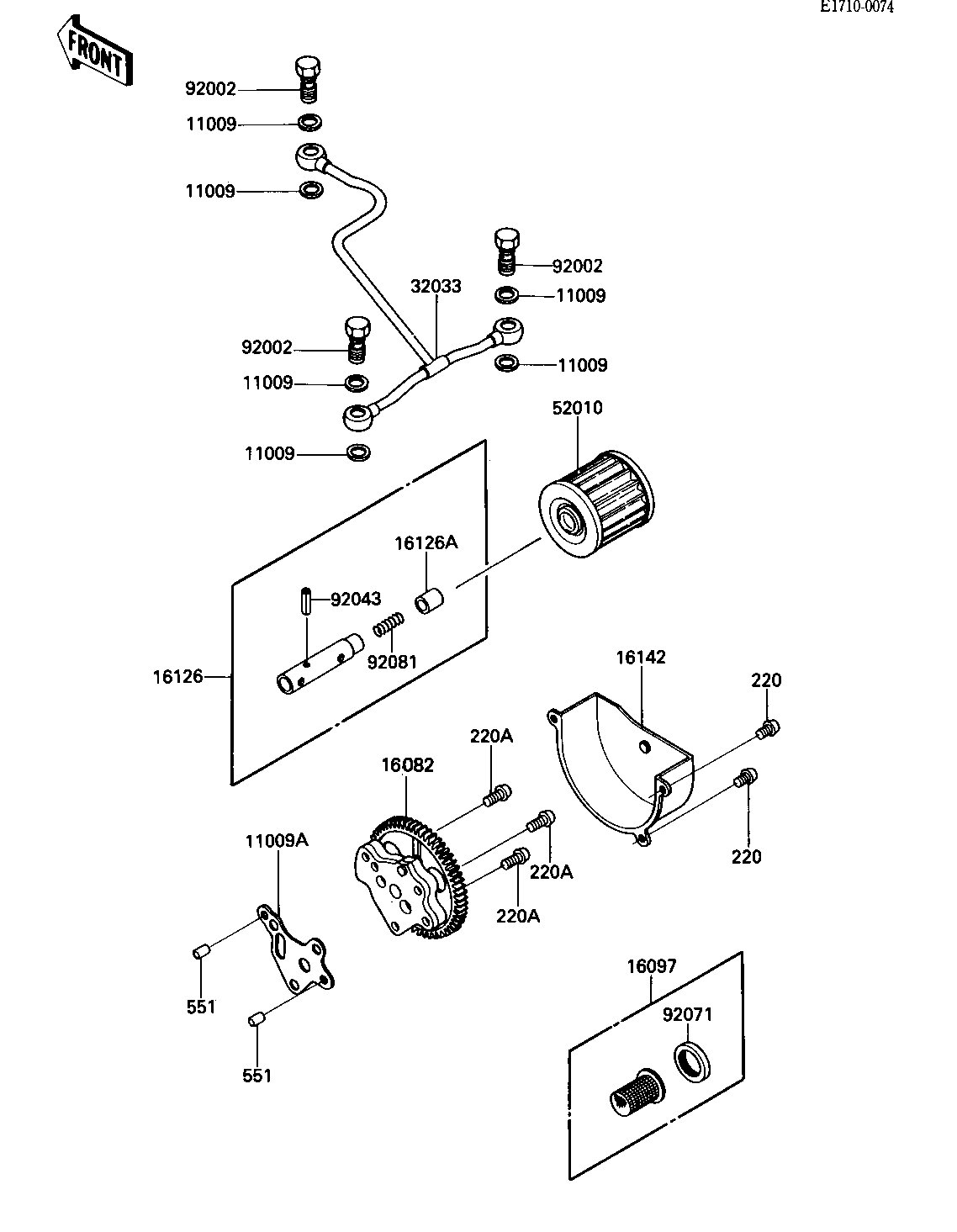

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 6 | ||
| GASKET,OIL PUMP | 11009A | 11009-1520 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-1068 | 1 | ||
| STRAINER ASSY,OIL | 16097 | 16097-1001 | 1 | ||
| BOLT ASSY,OIL FILTER | 16126 | 16156-002 | 1 | ||
| PISTON | 16126A | 92136-002 | 1 | ||
| COVER-PUMP | 16142 | 16142-1064 | 1 | ||
| PIPE,OIL | 32033 | 32033-1744 | 1 | ||
| FILTER,OIL | 52010 | 16099-004 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 3 | ||
| SPRING PIN | 92043 | 92043-123 | 1 | ||
| GROMMET,OIL STRAINER | 92071 | 92071-100 | 1 | ||
| SPRING,PISTON | 92081 | 92081-043 | 1 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 3 | ||
| SCREW PAN HEAD 6X25 | 220A | 220B0625 | 3 | ||
| PIN,DOWEL,6X8 | 551 | 551A0608 | 2 |
| GASKET,10X14.5X1.5 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GASKET,OIL PUMP | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-ASSY-OIL | |
| REF # | 16082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STRAINER ASSY,OIL | |
| REF # | 16097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT ASSY,OIL FILTER | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON | |
| REF # | 16126A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE,OIL | |
| REF # | 32033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER,OIL | |
| REF # | 52010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,OIL STRAINER | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PISTON | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,6X8 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
