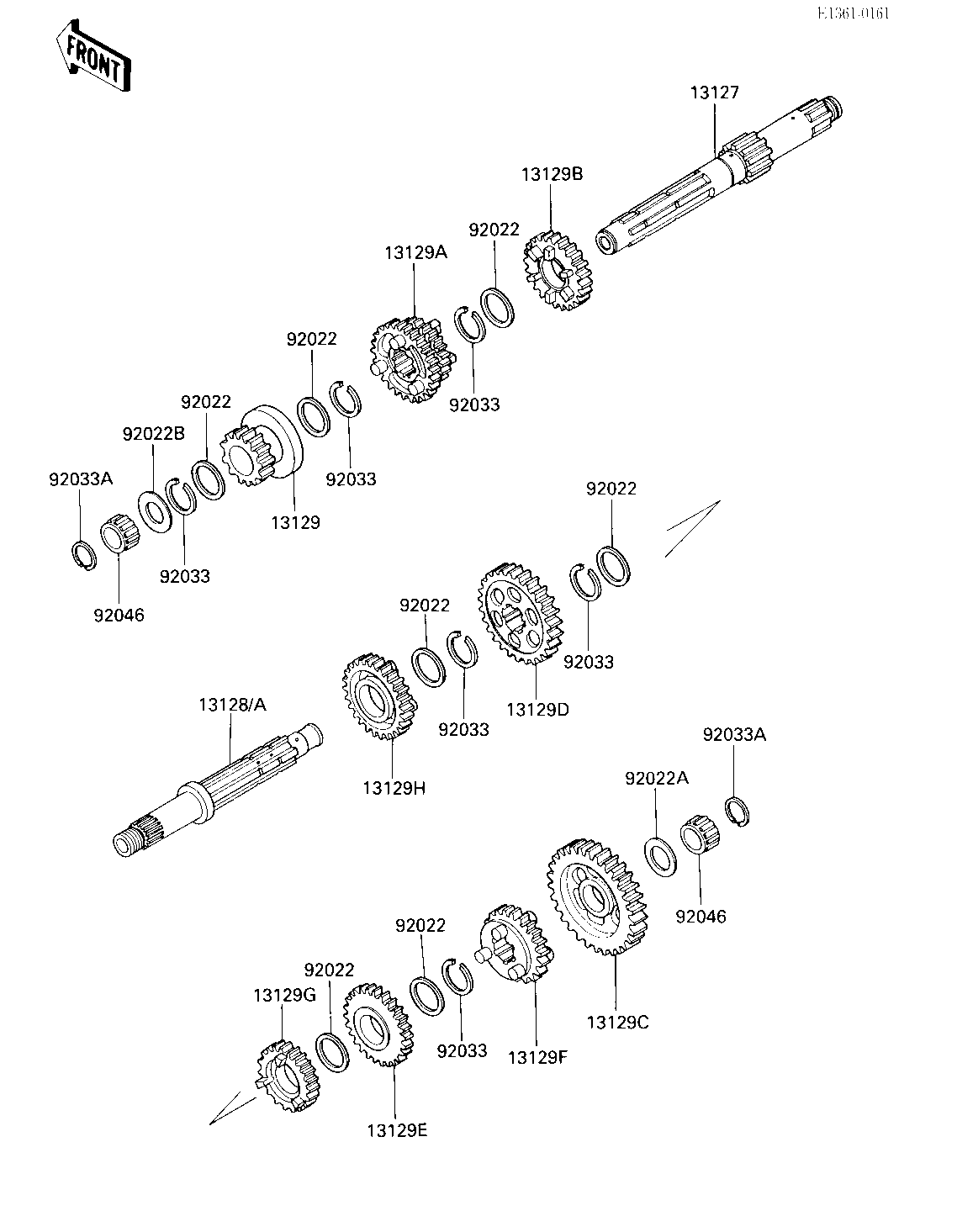

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1127 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1121 | 1 | ( - LF300AE013931) | |
| SHAFT-TRANSMISSION OU | 13128A | 13128-1132 | 1 | ( LF300AE013932 - ) | |
| GEAR,INPUT 2ND,14T | 13129 | 13129-1680 | 1 | ||
| GEAR,INPUT TOP&3RD,26 | 13129A | 13129-1681 | 1 | ||
| GEAR,INPUT 4TH,23T | 13129B | 13129-1682 | 1 | ||
| GEAR,OUTPUT LWR,34T | 13129C | 13129-1683 | 1 | ||
| GEAR,OUTPUT 2ND,27T | 13129D | 13129-1684 | 1 | ||
| GEAR,OUTPUT 3RD,26T | 13129E | 13129-1685 | 1 | ||
| GEAR,OUTPUT 4TH,22T | 13129F | 13129-1686 | 1 | ||
| GEAR,OUTPUT TOP,20T | 13129G | 13129-1687 | 1 | ||
| GEAR-REVERSE,26T | 13129H | 13129-1688 | 1 | ||
| WASHER-PLAIN | 92022 | 92022-198 | 7 | ||
| WASHER,17.3X28X1.0 | 92022A | 92022-255 | 1 | ||
| WASHER,PLAIN | 92022B | 92022-270 | 1 | ||
| CIRCLIP,25MM | 92033 | 92033-025 | 6 | ||
| CIRCLIP,16MM | 92033A | 92033-032 | 2 | ||
| BEARING-NEEDLE | 92046 | 92046-1184 | 2 |
| SHAFT-TRANSMISSION IN | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - LF300AE013931) |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( LF300AE013932 - ) |
| GEAR,INPUT 2ND,14T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP&3RD,26 | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 4TH,23T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LWR,34T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,27T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,26T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,22T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,20T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-REVERSE,26T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X28X1.0 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,25MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,16MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
