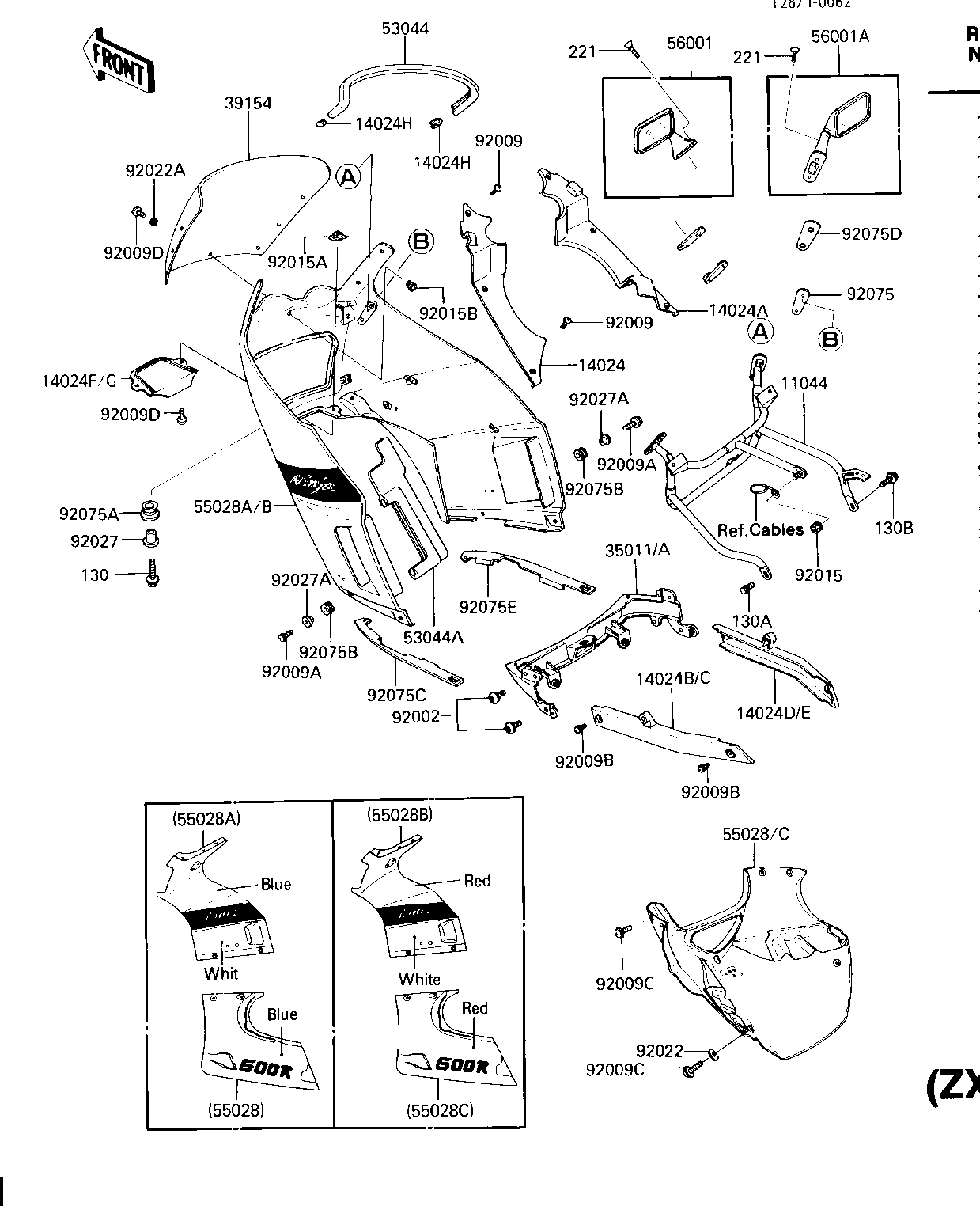

1986 Ninja® 600 - FAIRING (ZX600-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWLING,UPP 11044 11044-1076 1
COVER,UPP,INNER,LH 14024 14025-1726 1
COVER,UPP,INNER,RH 14024A 14025-1727 1
COVER,SIDE PANEL,LH,F 14024B 14025-1732-B1 1
COVER,SIDE PANEL,LH,B 14024C 14025-1732-R6 1
COVER,SIDE PANEL,RH,F 14024D 14025-1733-B1 1
COVER,SIDE PANEL,RH,B 14024E 14025-1733-R6 1
COVER,HEAD LAMP BULB, 14024F 14025-1735-M4 1
COVER,HEAD LAMP VALVE 14024G 14025-1735-6L 1
COVER,WINDSHIELD END 14024H 14025-1756 2
STAY,COWLING,LWR,F.RE 35011 35011-1246-B1 1
STAY,COWLING,LWR,BLUE 35011A 35011-1246-R6 1
WINDSHIELD 39154 39154-1105 1
TRIM,COWLING 53044 53044-1120 1
TRIM 53044A 53044-1135 2
COWLING.,LWR,L.P.BLUE 55028 55048-5283-M4 1
COWLING.,UPP,BLUE/WHI 55028A 55048-5275-S3 1
COWLING.,UPP,RED/WHIT 55028B 55048-5276-P9 1
COWLING.,LWR,F.RED 55028C 55048-5286-B1 1
MIRROR-ASSY,LH 56001 56001-1250 1
MIRROR-ASSY,RH 56001A 56001-1251 1
BOLT 92002 92002-1588 4
SCREW 92009 92009-1197 6
SCREW,6X20,BLACK 92009A 92009-1251 4
SCREW,6X14 92009B 92009-1287 4
SCREW,6X14 92009C 92009-1288 6
SCREW 92009D 92009-1654 10
NUT,FLANGED,8MM 92015 92015-1408 1
NUT 92015A 92015-1710 2
NUT,5MM,COWLING 92015B 92015-1343 8
WASHER,6.5X20X1.6.BLA 92022 92022-1346 2
WASHER,NYLON,5.3X11.5 92022A 92022-1521 8
COLLAR,FUEL TANK FITT 92027 92027-1134 2
COLLAR 92027A 92027-1935 4
DAMPER,MIRROR 92075 92075-1492 2
DAMPER 92075A 92160-1007 2
DAMPER 92075B 92075-1634 4
DAMPER,COWLING 92075C 92075-1707 1
DAMPER,MIRROR 92075D 92075-1745 2
DAMPER 92075E 92075-1759 1
BOLT-FLANGED,6X25 130 130J0625 2
BOLT-FLANGED,8X12,BLA 130A 130C0812 1
BOLT-FLANGED,8X16,BLA 130B 130C0816 1
SCREW-CSK-CROS,6X30 221 221C0630 4
