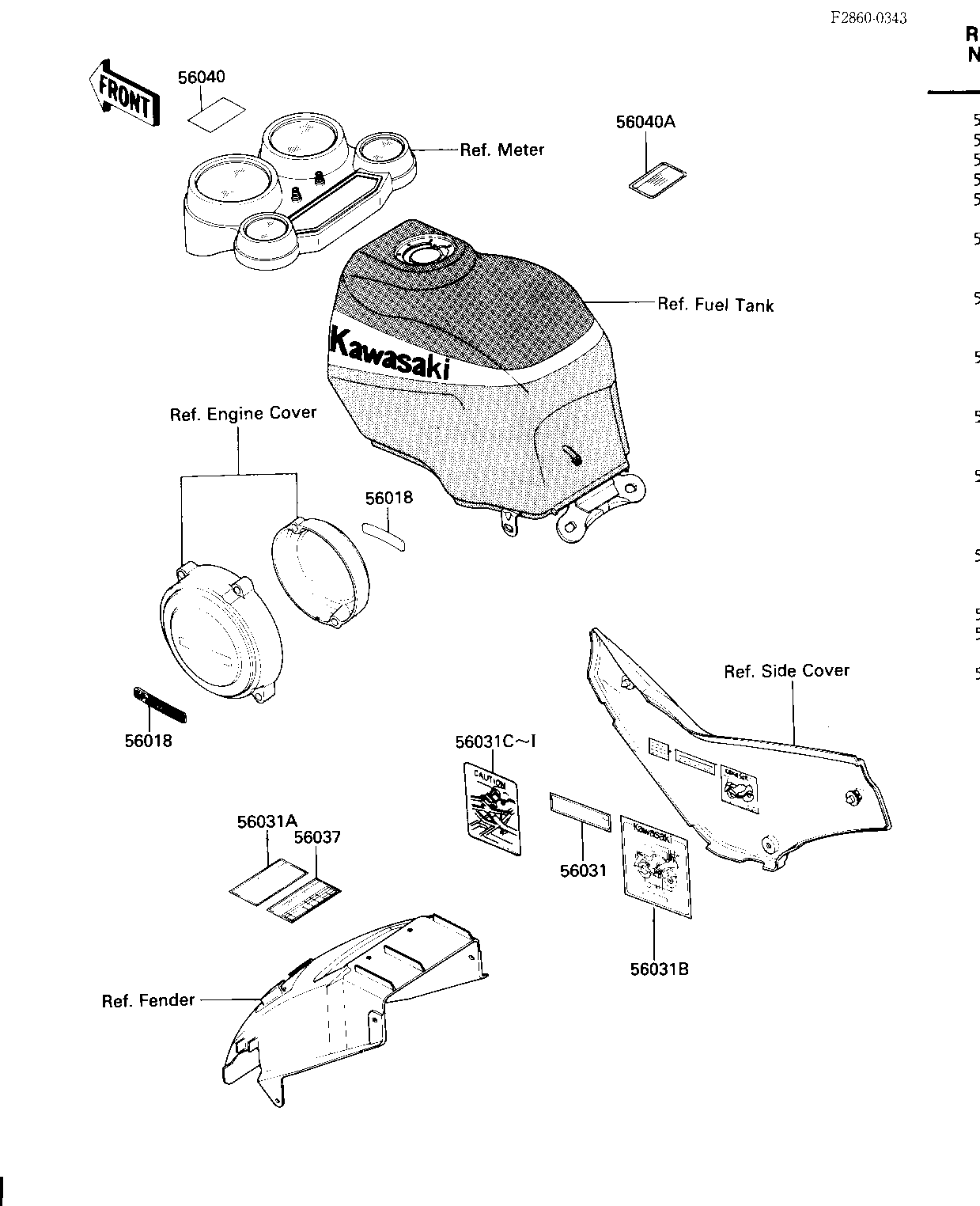

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,LEFT COVER | 56018 | 56018-1501 | 2 | ||
| LABEL,OIL&OIL FILTER | 56031 | 56031-1093 | 1 | ||
| LABEL-MANUAL,CHAIN | 56031A | 56031-1409 | 1 | ||
| LABEL-MANUAL,DAILY SA | 56031B | 56031-1410 | 1 | ||
| LABEL-MANUAL,BATTERY | 56031D | 56031-1411 | 1 | US | |
| LABEL-MANUAL,BATTERY | 56031E | 56031-1411 | 1 | CN | |
| LABEL-MANUAL,BATTERY | 56031F | 56031-1411 | 1 | CA | |
| LABEL-MANUAL,BATTERY | 56031G | 56031-1473 | 1 | US | |
| LABEL-MANUAL,BATTERY | 56031H | 56031-1473 | 1 | CN | |
| LABEL-MANUAL,BATTERY | 56031I | 56031-1473 | 1 | CA | |
| LABEL-SPECIFICATION,T | 56037 | 56037-1316 | 1 | ||
| LABEL,BRAKE-IN | 56040 | 56040-1007 | 1 | CA,US | |
| LABEL-WARNING,FUEL TK | 56040A | 56040-1121 | 1 | CA |
