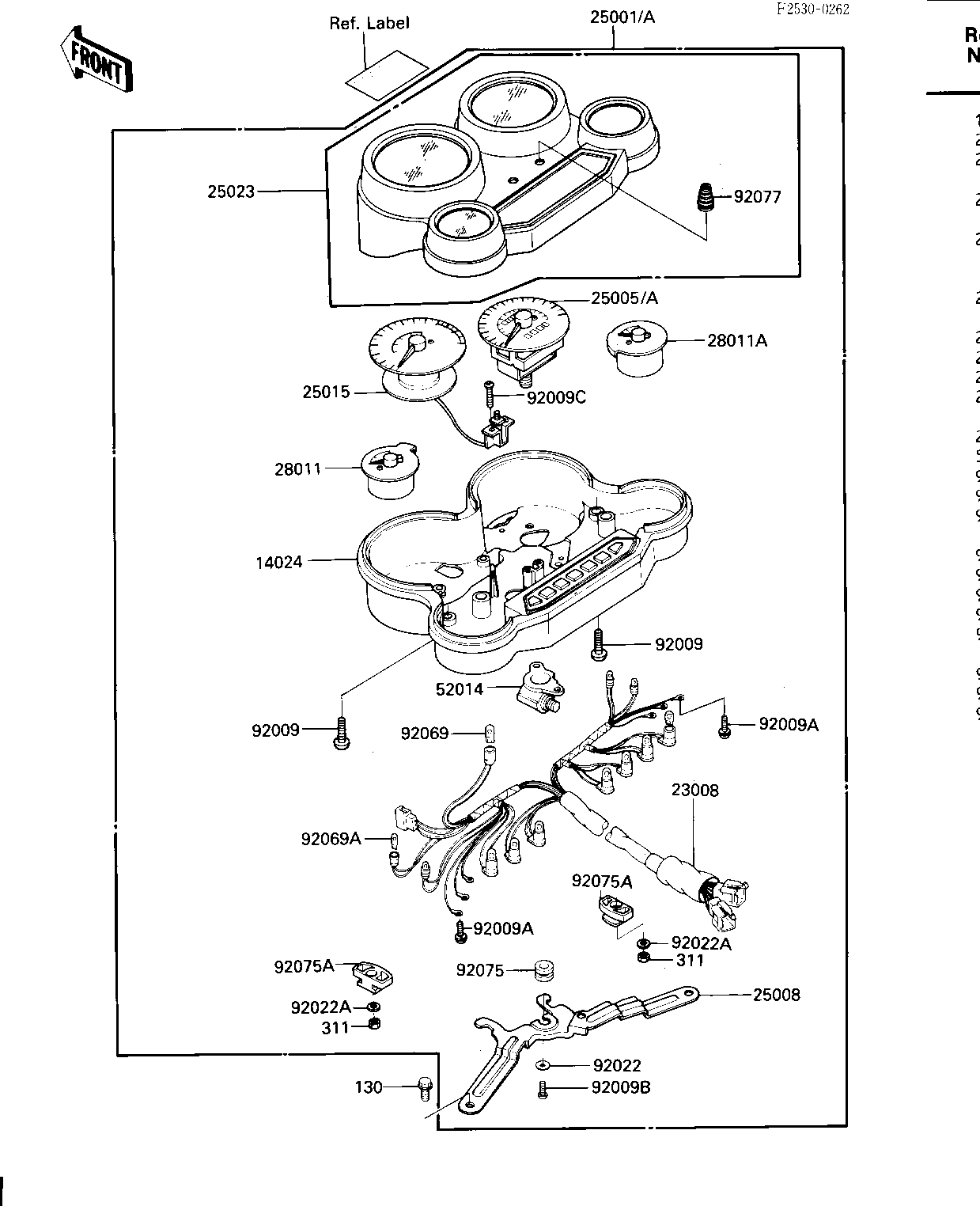

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER HOUSING | 14024 | 14025-1877 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1269 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1597 | 1 | CA,US | |
| METER-ASSY,KPH (Canada) | 25001A | 25001-1616 | 1 | CN | |
| SPEEDOMETER,MPH | 25005 | 25005-1299 | 1 | CA,US | |
| SPEEDOMETER,KPH (Canada) | 25005A | 25005-1300 | 1 | CN | |
| BRACKET-METER | 25008 | 25008-1119 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1237 | 1 | ||
| COVER-METER CASE | 25023 | 25023-1127 | 1 | ||
| METER,FUEL | 28011 | 28011-1062 | 1 | ||
| METER,TEMP | 28011A | 28011-1070 | 1 | ||
| ELBOW,SPEEDOMETER GEA | 52014 | 52014-1006 | 3 | ||
| SCREW,4X16,BLACK | 92009 | 92009-1158 | 3 | ||
| SCREW,3X22 | 92009A | 92009-1293 | 6 | ||
| SCREW,3X12 | 92009B | 92009-1326 | 1 | ||
| SCREW,TAPPING,2.6X12 | 92009C | 92009-1330 | 1 | ||
| WASHER | 92022 | 92022-1374 | 1 | ||
| WASHER,PLAIN,6MM | 92022A | 92022-263 | 2 | ||
| BULB,12V3.4W | 92069 | 92069-1007 | 8 | ||
| BULB,12V3W T-7 | 92069A | 92069-1020 | 4 | ||
| DAMPER,METER BRACKET | 92075 | 92075-1435 | 1 | ||
| DAMPER,METER BRACKET | 92075A | 92075-1495 | 2 | ||
| BOOT,TRIP RESET KNOB | 92077 | 92077-1061 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130C0614 | 2 | ||
| NUT,5MM | 311 | 311B0500 | 2 |
