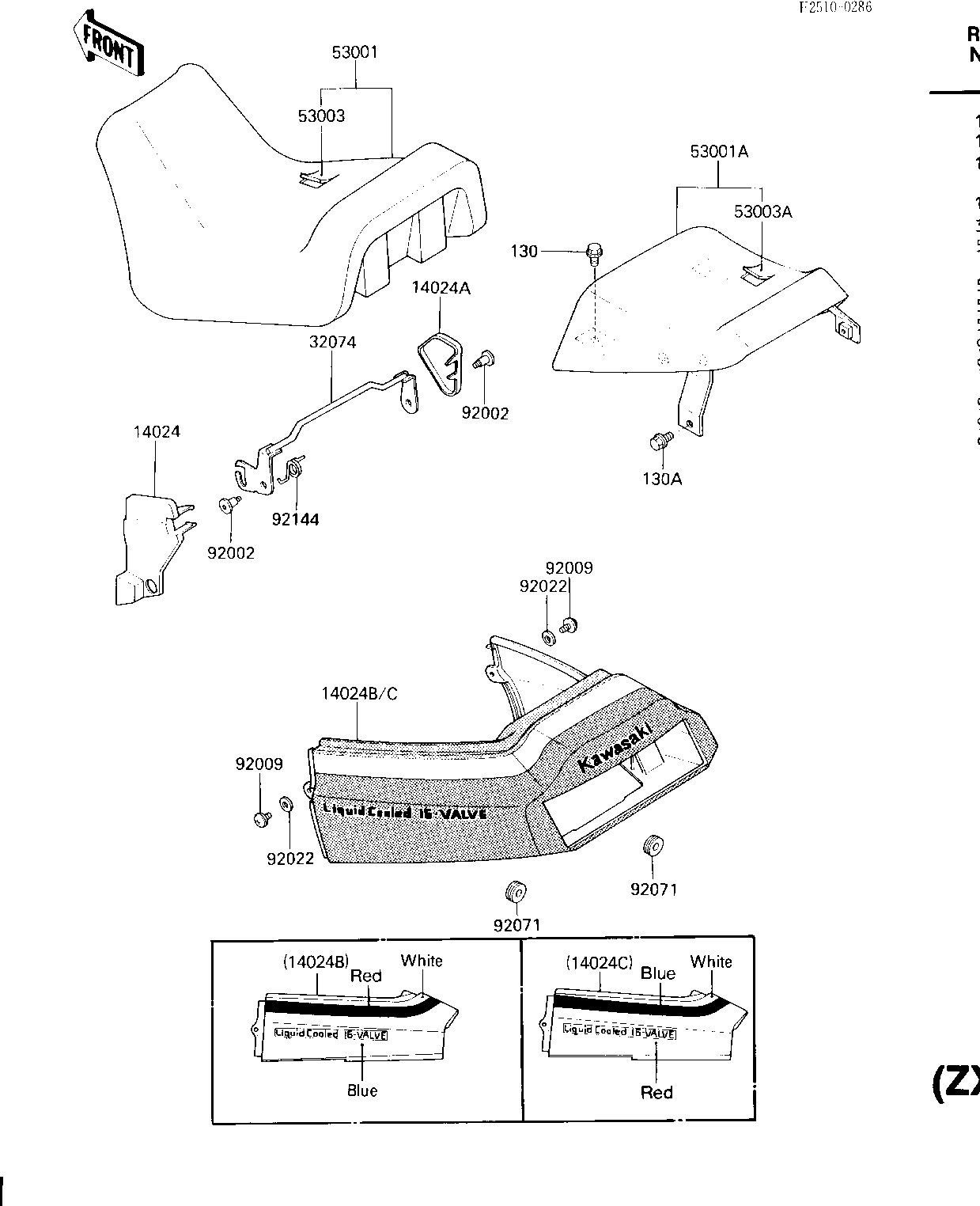

1986 Ninja® 600 - SEAT/SEAT COVER (ZX600-A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SEAT LOCK,LH | 14024 | 14024-1051 | 1 | ||
| COVER,SEAT LOCK,RH | 14024A | 14024-1052 | 1 | ||
| COVER,SEAT,L.P.BLUE/P | 14024B | 14025-5232-S3 | 1 | ||
| COVER,SEAT,F.RED/P.A. | 14024C | 14025-5243-P9 | 1 | ||
| BRACKET-LOCK,SEAT | 32074 | 32074-1113 | 1 | ||
| SEAT-ASSY,FR,BLACK | 53001 | 53001-1415-N3 | 1 | ||
| SEAT-ASSY,RR,BLACK | 53001A | 53001-1416-N3 | 1 | ||
| LEATHER,FRONT SEAT,BL | 53003 | 53003-1130-N3 | 1 | ||
| LEATHER,REAR SEAT,BLA | 53003A | 53003-1131-N3 | 1 | ||
| BOLT | 92002 | 92002-1616 | 2 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 2 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1654 | 2 | ||
| GROMMET | 92071 | 92071-056 | 2 | ||
| SPRING | 92144 | 92144-1086 | 1 | ||
| BOLT | 130 | 130B0612 | 2 | ||
| BOLT,FLANGED,8X14 | 130A | 130G0814 | 2 |
