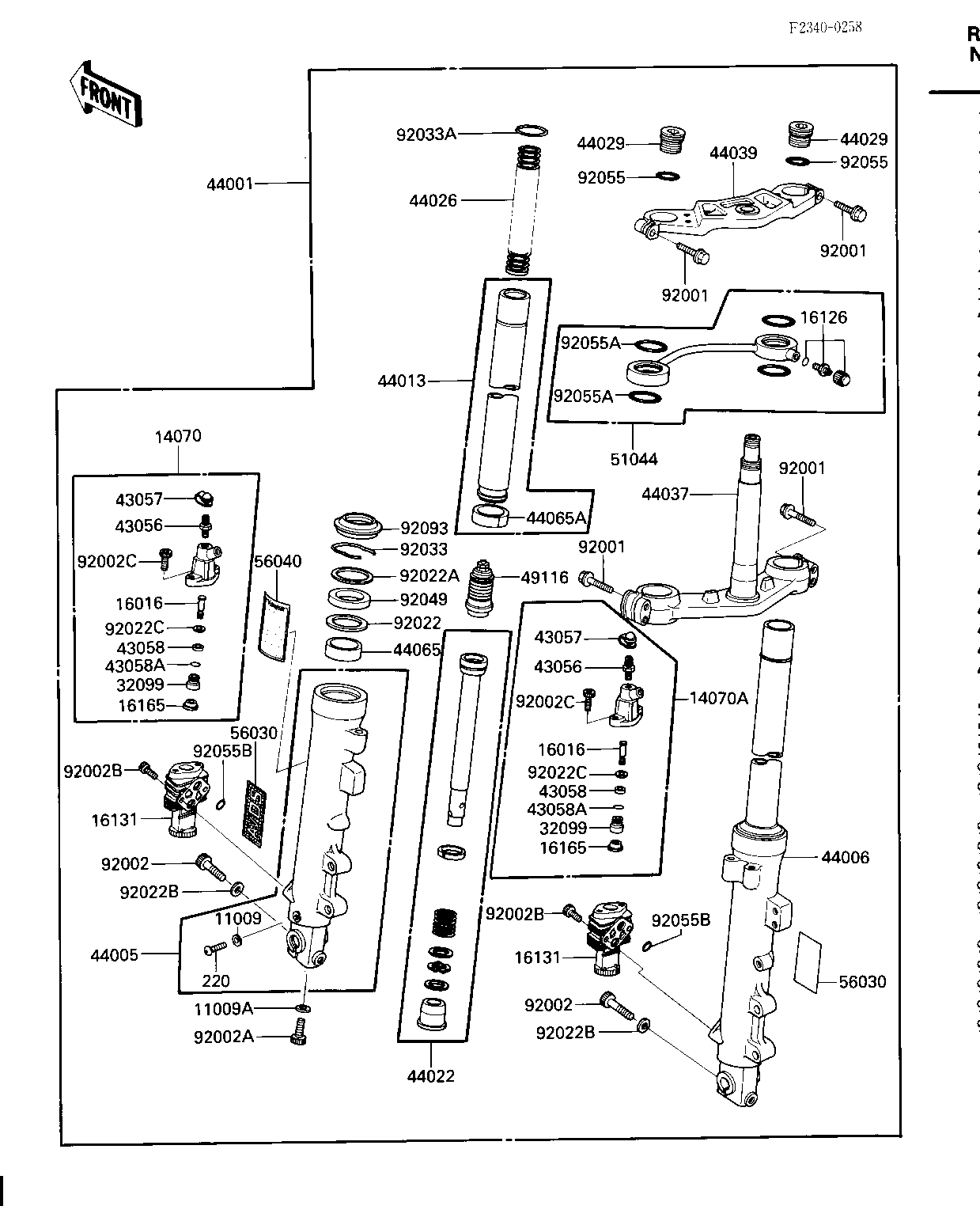

1986 Ninja® 600 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
BODY-BREATHER,ANTI-DI 14070 14070-1070 1
BODY-BREATHER,ANTI-DI 14070A 14070-1060 1
PLUNGER,ANTI-DIVE 16016 16016-1067 2
VALVE AIR 16126 16126-1052 1
BODY-VALVE,FORK,ANTI- 16131 16131-1058 2
SEPARATOR 16165 16165-1051 2
CASE 32099 32099-1067 2
BREEDER 43056 43056-003 2
CAP,BREEDER 43057 43057-003 2
RING 43058 43058-1052 2
RING 43058A 43058-1053 2
FORK-FRONT 44001 44001-1661 1
PIPE-LEFT FORK OUTER 44005 44005-1232 1
PIPE-RIGHT FORK OUTER 44006 44006-1232 1
PIPE-FORK INNER 44013 44013-1231 2
CYLINDER-FORK 44022 44022-1181 2
SPRING-FRONT FORK,K=0 44026 44026-1302 2
SEAT-FORK SPRING 44029 44029-1121 2
HOLDER-FORK UNDER 44037 44037-1180 1
HOLDER-FORK UPPER 44039 44039-1157 1
BUSHING-FRONT FORK 44065 44065-1051 2
BUSHING-FRONT FORK 44065A 44065-1058 2
VALVE-ASSY,FORK 49116 49116-1058 2
TUBE-ASSY 51044 51044-1069 1
LABEL,AVDS MARK 56030 56030-1057 2
LABEL-WARNING,SHOCKAB 56040 56040-1117 1
BOLT,8X40 92001 92001-1188 6
BOLT 92002 92002-1316 2
BOLT 92002A 92002-1317 2
BOLT 92002B 92002-1564 4
BOLT 92002C 92002-1565 4
WASHER,FORK OUTER PIP 92022 92022-1455 2
WASHER,FORK OUTER PIP 92022A 92022-1524 2
WASHER 92022B 92022-1598 2
WASHER 92022C 92022-1636 2
SNAP RING,FORK OUTER 92033 92033-1047 2
RING-SNAP 92033A 92033-1202 2
SEAL-OIL,FORK OUTER T 92049 92049-1372 2
"0" RING,FORK TOP 92055 92055-1051 2
RING-O,TUBE ASSY 92055A 92055-1164 4
RING-O,ANTI-DIVE UNIT 92055B 92055-1201 4
SEAL,FORK OUTER TUBE 92093 92093-1314 2
SCREW PAN HEAD 4X8 220 220E0408 2
