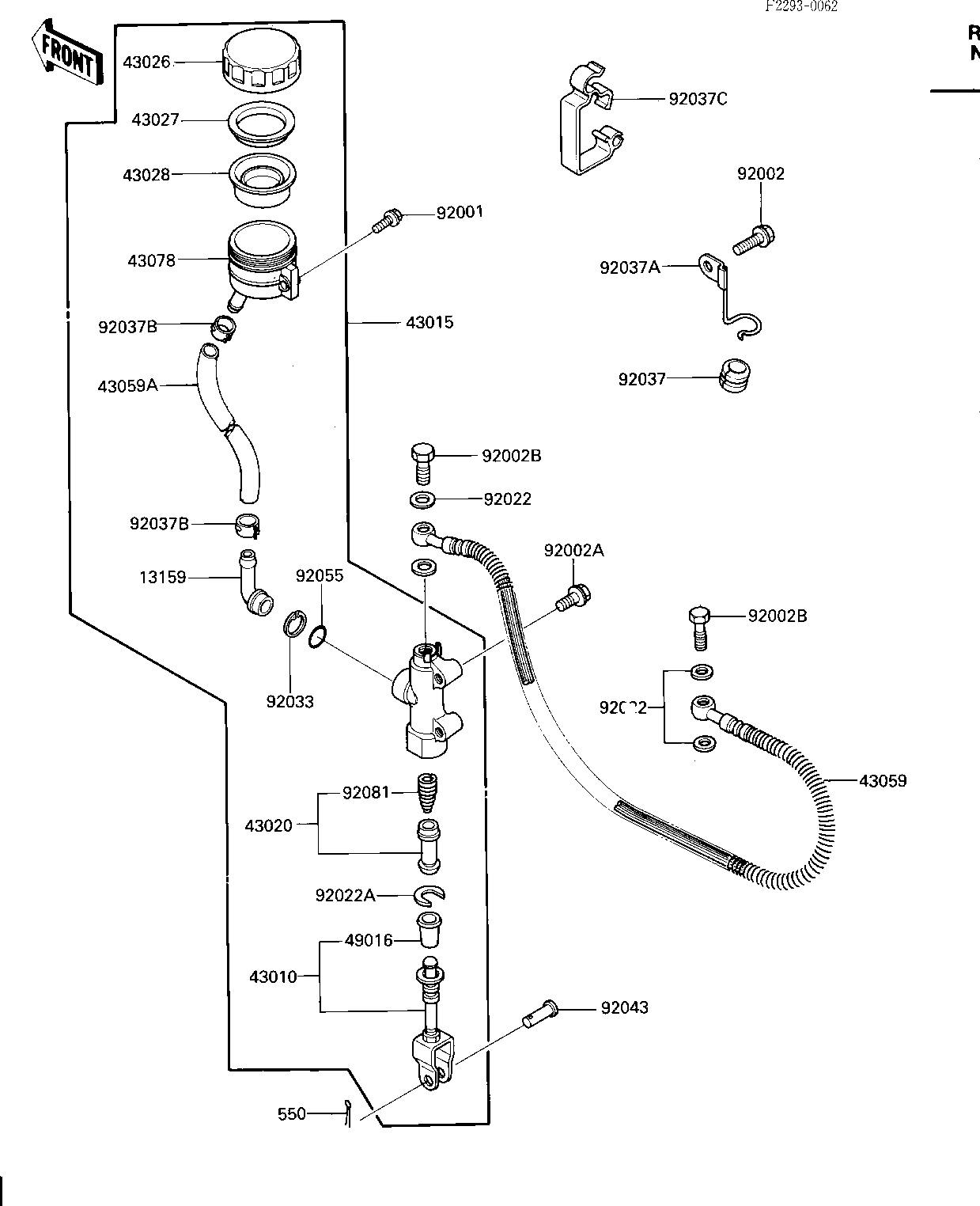

1986 Ninja® 600 - REAR MASTER CYLINDER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CONNECTOR,RR MASTER C | 13159 | 13159-1052 | 1 | ||
| ROD-ASSY-BRAKE | 43010 | 43010-1054 | 1 | ||
| CYLINDER-ASSY-MASTER, | 43015 | 43015-1304 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1054 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1057 | 1 | ||
| HOSE-BRAKE,RR | 43059 | 43059-1618 | 1 | ||
| HOSE-BRAKE,RR MASTER | 43059A | 43059-1313 | 1 | ||
| RESERVOIR,RR MASTER C | 43078 | 43078-1082 | 1 | ||
| COVER-SEAL | 49016 | 49016-1103 | 1 | ||
| BOLT,6X16 | 92001 | 92001-1860 | 1 | ||
| BOLT | 92002 | 92002-1311 | 1 | ||
| BOLT,FLANGED,8X22 | 92002A | 92002-1485 | 2 | ||
| BOLT,OIL,L=23 | 92002B | 92002-1888 | 2 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
| WASHER | 92022A | 92022-1601 | 1 | ||
| RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
| DAMPER RUBBER | 92037 | 43064-007 | 1 | ||
| CLAMP | 92037A | 92037-1540 | 1 | ||
| CLAMP | 92037B | 92037-1547 | 2 | ||
| CLAMP,BRAKE HOSE | 92037C | 92037-1674 | 1 | ||
| PIN | 92043 | 92043-1013 | 1 | ||
| RING-O | 92055 | 92055-1251 | 1 | ||
| SPRING | 92081 | 92081-1737 | 1 | ||
| PIN COTTER 2.0X15 | 550 | 550D2015 | 1 |
