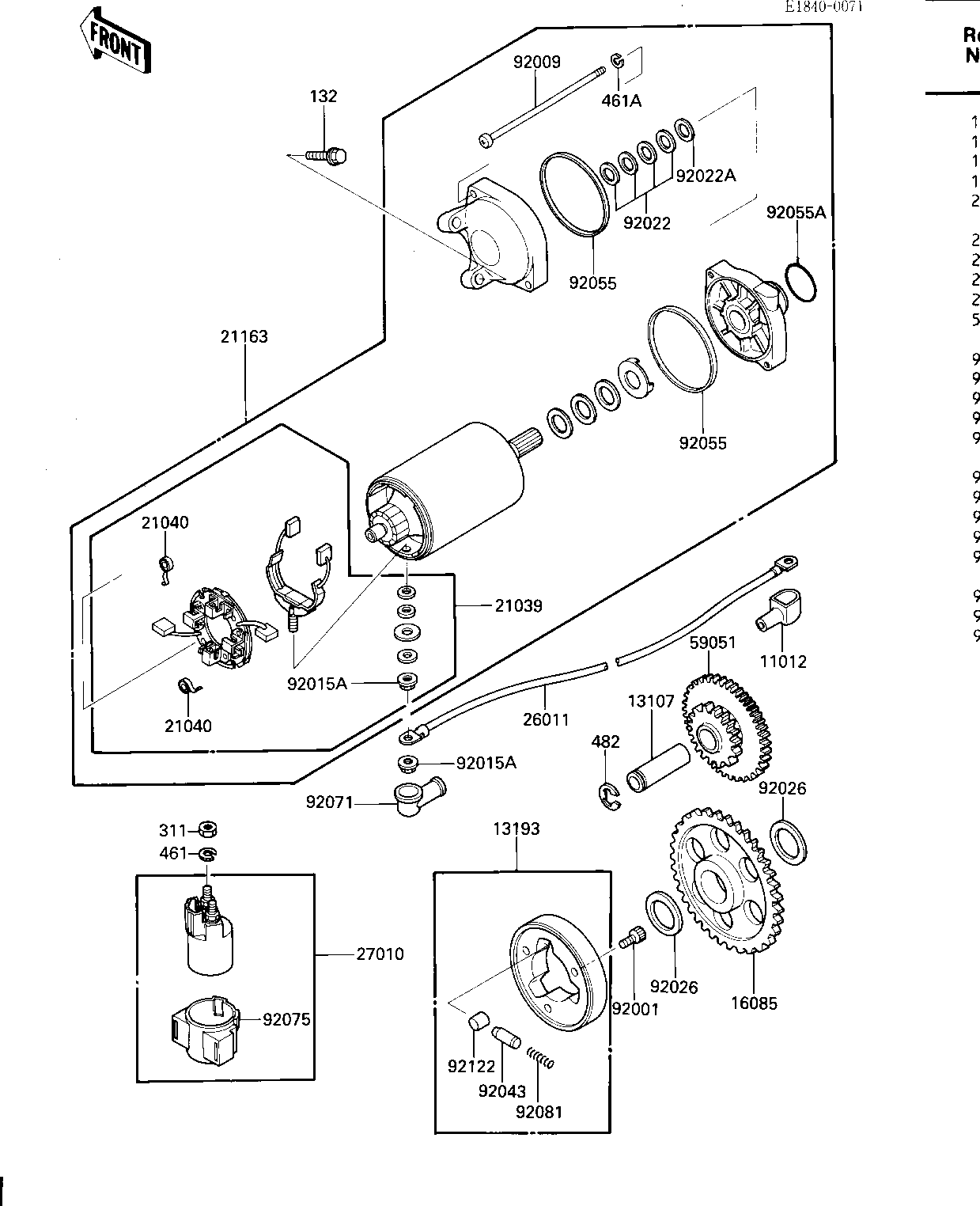

1986 Ninja® 600 - STARTER MOTOR/STARTER CLUTCH
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
| SHAFT,IDLE GEAR | 13107 | 13107-1144 | 1 | ||
| CLUTCH ASSY,ONEWAY | 13193 | 13193-1002 | 1 | ||
| GEAR,ONEWAY CLUTCH | 16085 | 16085-1030 | 1 | ||
| BRUSH,CARBON | 21039 | 21039-1053 | 1 | ||
| SPRING-BRUSH | 21040 | 21040-1003 | 4 | ||
| STARTER-ELECTRIC | 21163 | 21163-1072 | 1 | ||
| WIRE-LEAD,STARTER MTR | 26011 | 26011-1251 | 1 | ||
| SWITCH,MAGNETIC | 27010 | 27010-1209 | 1 | ||
| GEAR-SPUR,IDLE | 59051 | 59051-1138 | 1 | ||
| BOLT,SOCKET,8X10 | 92001 | 92001-1424 | 3 | ||
| SCREW | 92009 | 92009-1397 | 2 | ||
| NUT,6MM | 92015 | 92015-1476 | 2 | ||
| WASHER,THRUST,0.2T | 92022 | 21025-011 | 4 | ||
| WASHER,THRUST,0.8T | 92022A | 92022-1132 | 1 | ||
| SPACER,25X36X3.2 | 92026 | 92026-1025 | 2 | ||
| PIN | 92043 | 92043-132 | 3 | ||
| "0" RING,STARTER MOTR | 92055 | 92055-1086 | 2 | ||
| RING-O | 92055A | 92055-1276 | 1 | ||
| GROMMET,CORD | 92071 | 21017-017 | 1 | ||
| DAMPER MAG SWITCH SHK | 92075 | 21064-002 | 1 | ||
| SPRING,COIL | 92081 | 92081-159 | 3 | ||
| ROLLER | 92122 | 92122-006 | 3 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0625 | 2 | ||
| NUT 6MM | 311 | 311B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 | ||
| WASHER-SPRING,5MM,BLA | 461A | 461K0500 | 2 | ||
| CIRCLIP-TYPE-E | 482 | 482J0300 | 1 |
