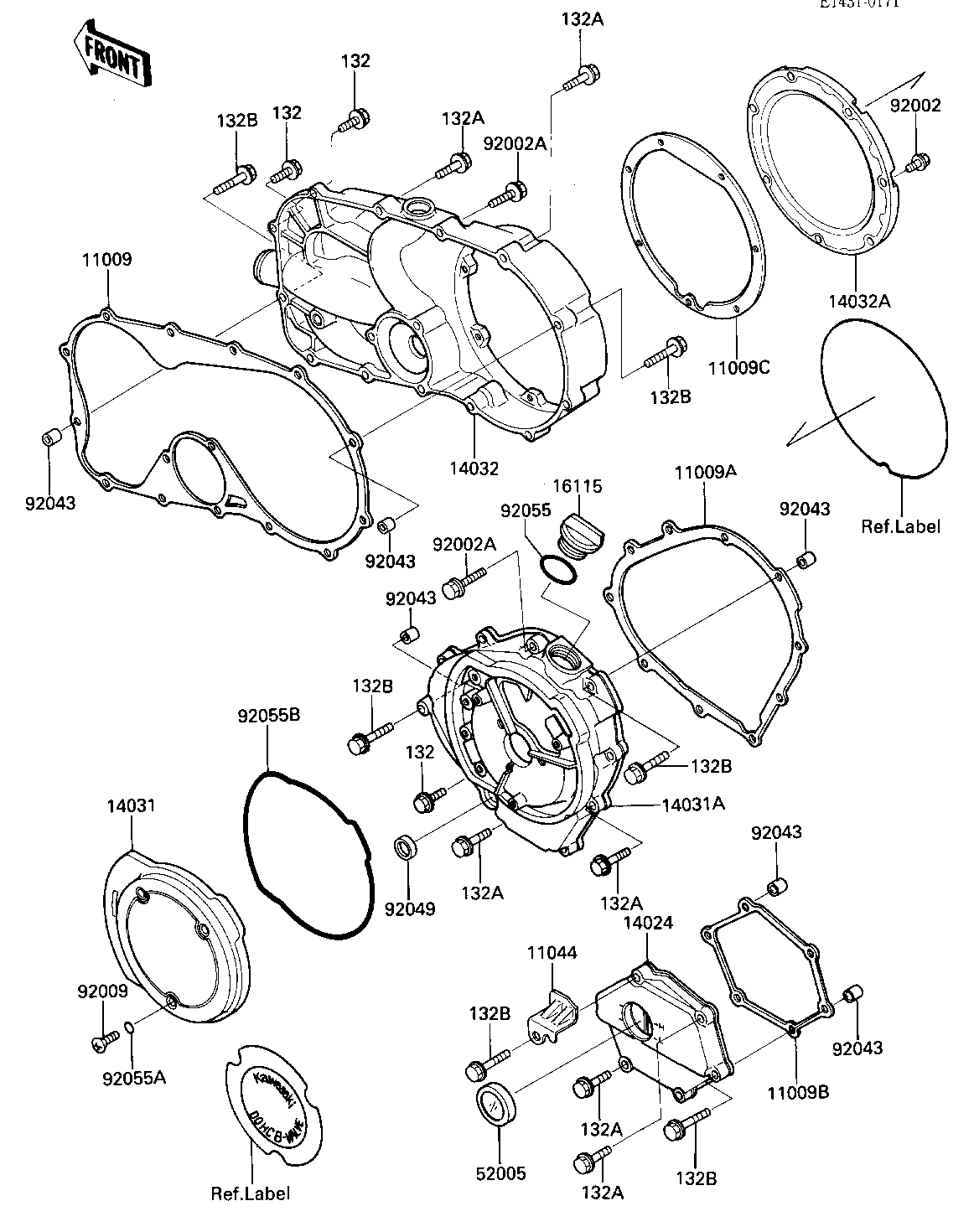

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CLUTCH COVER | 11009 | 11009-1472 | 1 | ||
| GASKET,GENERATOR COVE | 11009A | 11060-1089 | 1 | ||
| GASKET,TRANSMISSION C | 11009B | 11009-1475 | 1 | ||
| GASKET,CLUTCH OUTSIDE | 11009C | 11060-1088 | 1 | ||
| BRACKET | 11044 | 11044-1358 | 1 | ||
| COVER,TRANSMISSION | 14024 | 14024-1069 | 1 | ||
| COVER-GENERATOR,OUTSI | 14031 | 14031-1175 | 1 | ||
| COVER-GENERATOR | 14031A | 14031-1182 | 1 | ||
| COVER-CLUTCH (Canada) | 14032 | 14032-1192 | 1 | ||
| COVER-CLUTCH,OUTSIDE | 14032A | 14032-1200 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1017 | 1 | ||
| BOLT,6X16 | 92002 | 92002-1439 | 7 | ||
| BOLT,6X30 | 92002A | 92002-1534 | 2 | ||
| SCREW | 92009 | 92009-1715 | 3 | ||
| PIN,DOWEL,6.2X8X14 | 92043 | 92043-1263 | 6 | ||
| OIL SEAL,TB13225.5 | 92049 | 92051-005 | 1 | ||
| "0" RING,31MM | 92055 | 92055-049 | 1 | ||
| "O" RING,DYNAMO COVER | 92055A | 92055-109 | 3 | ||
| RING-O | 92055B | 92055-1319 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0625 | 5 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0630 | 16 | ||
| BOLT-FLANGED-SMALL | 132B | 132J0640 | 8 |
