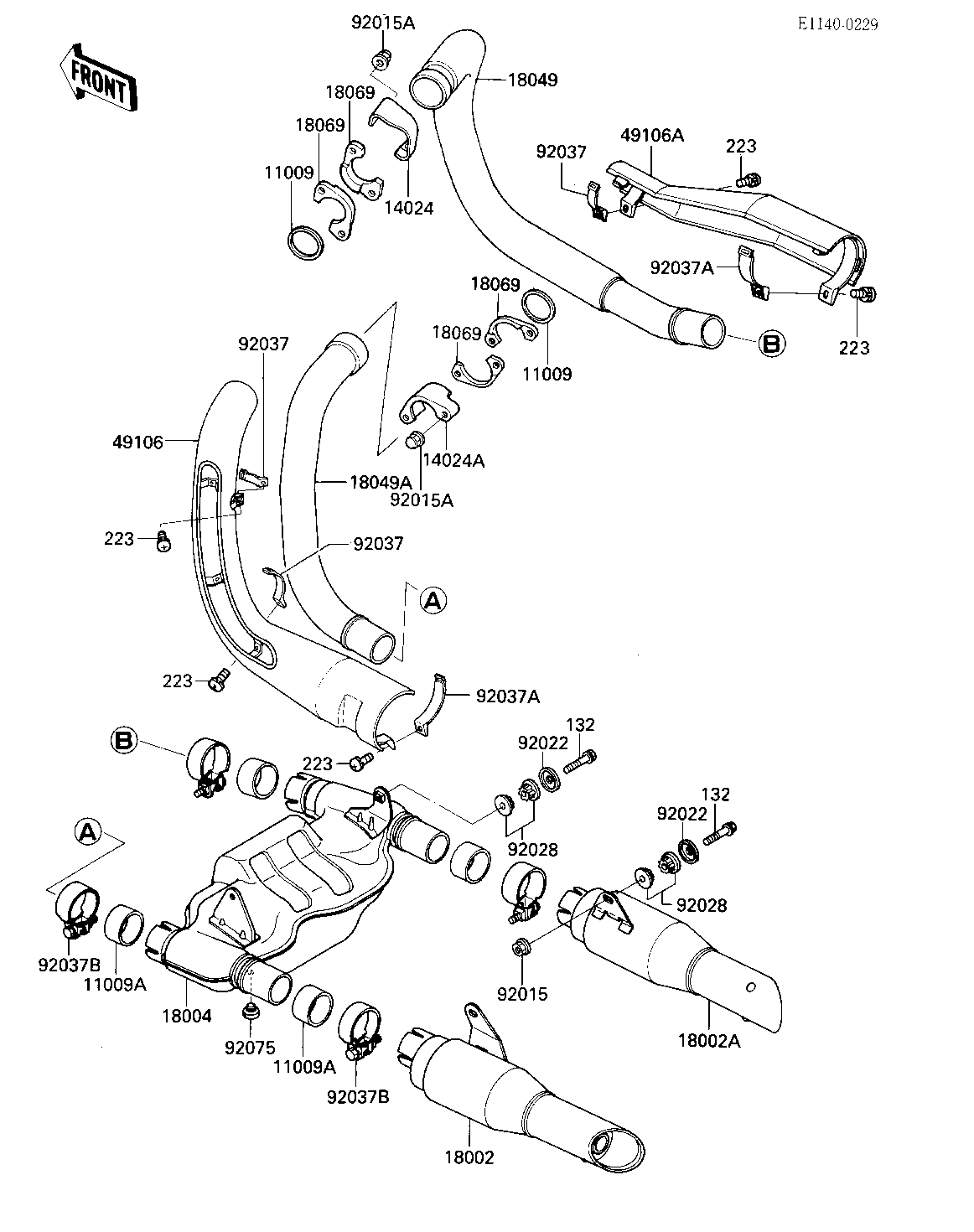

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 11009 | 11060-1119 | 2 | ||
| GASKET,EXHAUST PIPE C | 11009A | 11009-1666 | 4 | ||
| COVER | 14024 | 14024-1091 | 1 | ||
| COVER | 14024A | 14024-1092 | 1 | ||
| BODY-COMP-MUFFLER,LH | 18002 | 18002-1562 | 1 | ||
| BODY-COMP-MUFFLER,RH | 18002A | 18002-1563 | 1 | ||
| CHAMBER-PREMUFFLER | 18004 | 18004-1055 | 1 | ||
| PIPE-EXHAUST,FR | 18049 | 18049-1373 | 1 | ||
| PIPE-EXHAUST,RR | 18049A | 18049-1374 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1061 | 4 | ||
| COVER-MUFFLER,LH | 49106 | 49106-1053 | 1 | ||
| COVER-MUFFLER,RH | 49106A | 49106-1054 | 1 | ||
| NUT,8M/M | 92015 | 92015-1014 | 4 | ||
| NUT,CAP,8MM | 92015A | 92015-1371 | 4 | ||
| WASHER,CAP TYPE | 92022 | 92022-1638 | 4 | ||
| BUSHING-RUBBER,MUFFLE | 92028 | 92028-1329 | 8 | ||
| CLAMP,MUFFLER COVER | 92037 | 92037-1613 | 3 | ||
| CLAMP,MUFFLER COVER | 92037A | 92037-1615 | 2 | ||
| CLAMP,52MM | 92037B | 92037-1633 | 4 | ||
| DAMPER RUBB MAIN STND | 92075 | 92075-005 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0840 | 4 | ||
| SCREW-PAN-WS-CROS | 223 | 223X0620 | 5 |
| GASKET,EXHAUST PIPE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE C | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER,LH | |
| REF # | 18002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER,RH | |
| REF # | 18002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAMBER-PREMUFFLER | |
| REF # | 18004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,FR | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,RR | |
| REF # | 18049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER,LH | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER,RH | |
| REF # | 49106A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,CAP TYPE | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,MUFFLE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MUFFLER COVER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MUFFLER COVER | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,52MM | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB MAIN STND | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
