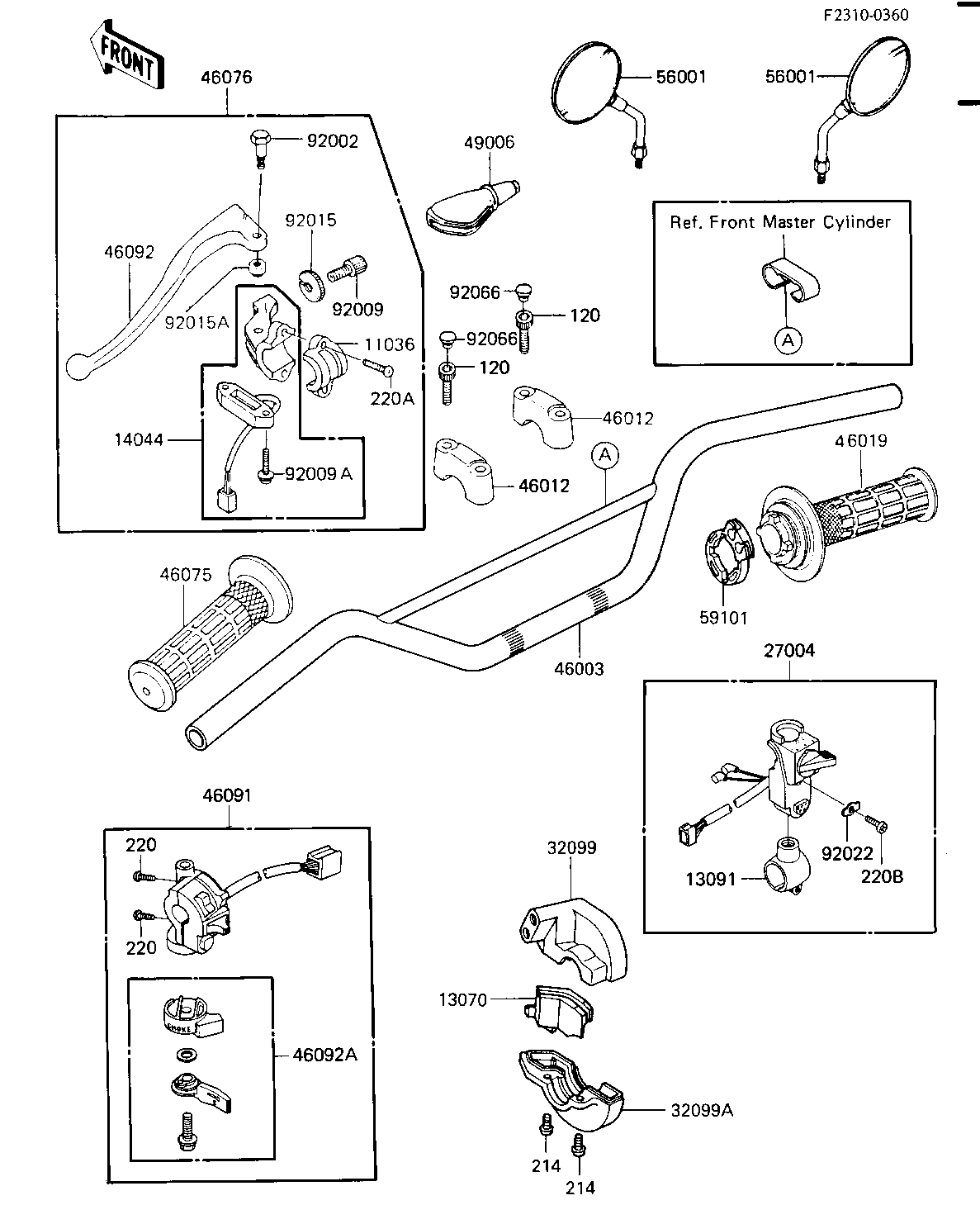

1986 KL600 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A 11036 11036-1297 1
GUIDE 13070 13070-1131 1
HOLDER,ENGINE STOP SW 13091 13091-1255 1
HOLDER-CABLE,CLUTCH 14044 14044-1057 1
SWITCH-ASSY,ENGINE ST 27004 27004-1053 1
CASE 32099 32099-1072 1
CASE 32099A 32099-1073 1
HANDLE 46003 46003-1153 1
HOLDER-HANDLE 46012 46012-1102 2
GRIP-ASSY,THROTTLE 46019 46019-1054 1
GRIP,LH 46075 46075-1051 1
LEVER-ASSY-GRIP,CLUTC 46076 46076-1128 1
HOUSING-ASSY-CONTROL, 46091 46091-1309 1
LEVER-GRIP,CLUTCH 46092 46092-1111 1
LEVER-GRIP 46092A 46092-1123 1
BOOT,LEVER HOLDER 49006 49006-1099 1
MIRROR-ASSY 56001 56001-1204 2
REEL 59101 59101-1106 1
BOLT,LEVER SET 92002 92002-1475 1
SCREW,CABLE ADJUST 92009 46055-009 1
SCREW 92009A 92009-1390 2
NUT,CABLE ADJUST LOCK 92015 46056-006 1
NUT,LOCK,6MM,BLACK 92015A 92015-1191 1
WASHER,ENGINE STOP SW 92022 92022-1474 1
PLUG,HANDLE HOLDER 92066 92066-1216 4
BOLT-SOCKET,8X30,BLAC 120 120S0830 4
SCREW-PAN-CROS,5X18 214 220C0518 2
SCREW-PAN-CROSS,5X14 220 220C0514 2
SCREW-PAN-CROS, 6X14 220A 220C0614 2
SCREW-PAN-CROS, 6X20 220B 220C0620 1
