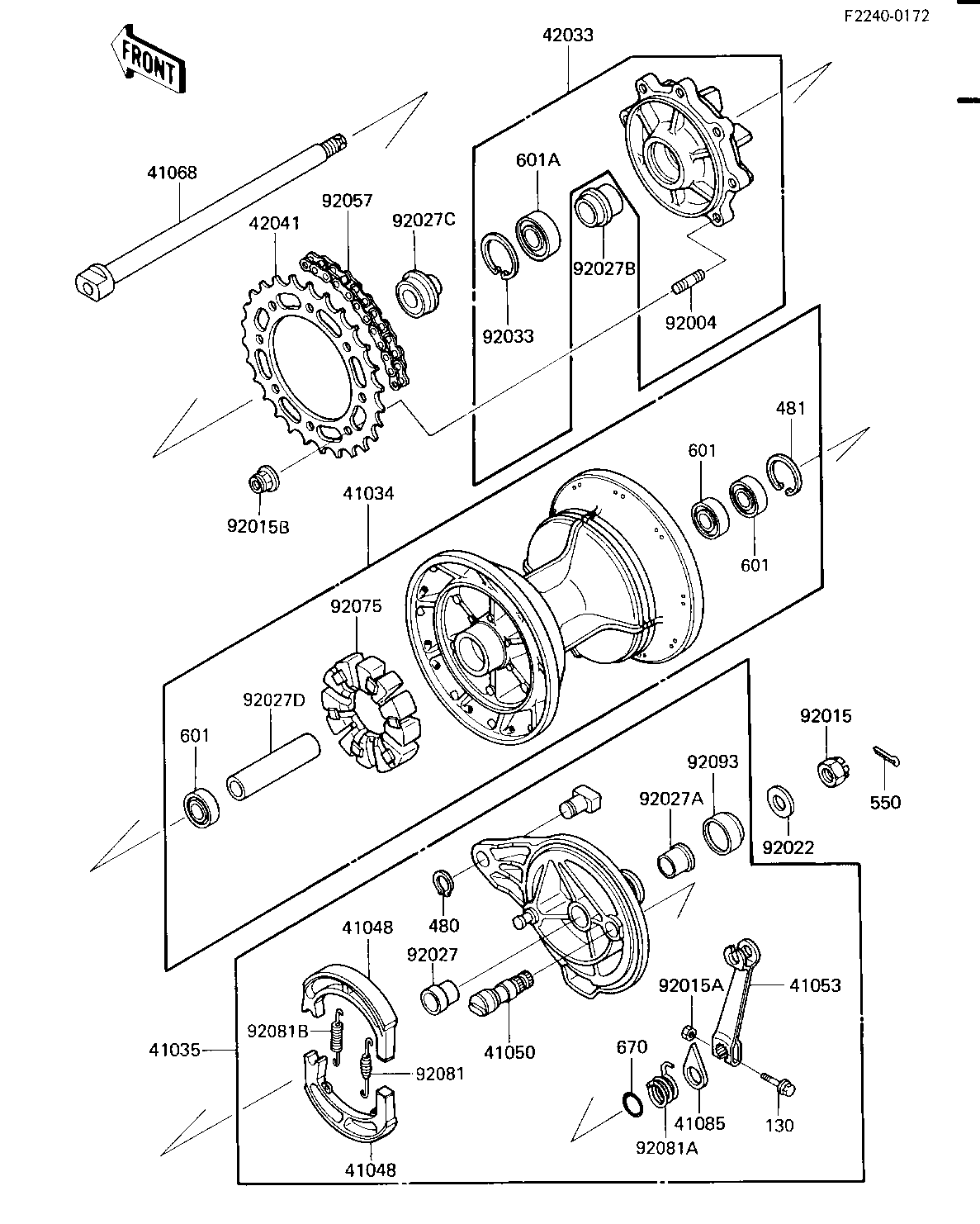

1986 KL600 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-1107 1
PANEL-ASSY-BRAKE,RR 41035 41035-1194 1
SHOE-BRAKE 41048 41048-1060 2
CAM-BRAKE 41050 41050-1060 1
LEVER-BRAKE CAM 41053 41053-1051 1
AXLE,RR 41068 41068-1184 1
INDICATOR,FR BRK PNL 41085 41085-005 1
COUPLING-ASSY,REAR HU 42033 42033-1112 1
SPROCKET-HUB,43T 42041 42041-1185 1
STUD 92004 92004-1150 8
NUT CASTLE 16M/M 92015 42045-014 1
NUT-6MM 92015A 92015-1078 1
NUT 92015B 92015-1506 8
WASHER SLEEVE 92022 42046-009 1
COLLAR,REAR BRAKE PAN 92027 92027-1689 1
COLLAR,REAR BRAKE PAN 92027A 92027-1690 1
COLLAR,REAR HUB COUPL 92027B 92027-1770 1
COLLAR,REAR HUB COUPL 92027C 92027-1771 1
COLLAR,REAR BRAKE DRU 92027D 92027-1772 1
CIRCLIP,42MM 92033 92033-1041 1
CHAIN,DRIVE,EK520LDOX 92057 92057-1177 1
DAMPER,RR HUB,SHOCK 92075 92075-1068 1
SPRING,BRAKE SHOE 92081 92081-1550 1
SPRING,BRAKE CAM LEVE 92081A 92081-1615 1
SPRING,BRAKE SHOE 92081B 92081-1766 1
OIL SEAL 92093 92093-1004 1
BOLT,FLANGED,6X30 130 130G0630 1
CIRCLIP 14MM 480 480J1400 1
CIRCLIP,35MM 481 481J3500 1
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6003UC3 601 601B6003U 3
BEARING-BALL,#6004U 601A 601B6004U 1
"O" RING,15MM 670 670B2015 1
