Parts Diagrams |

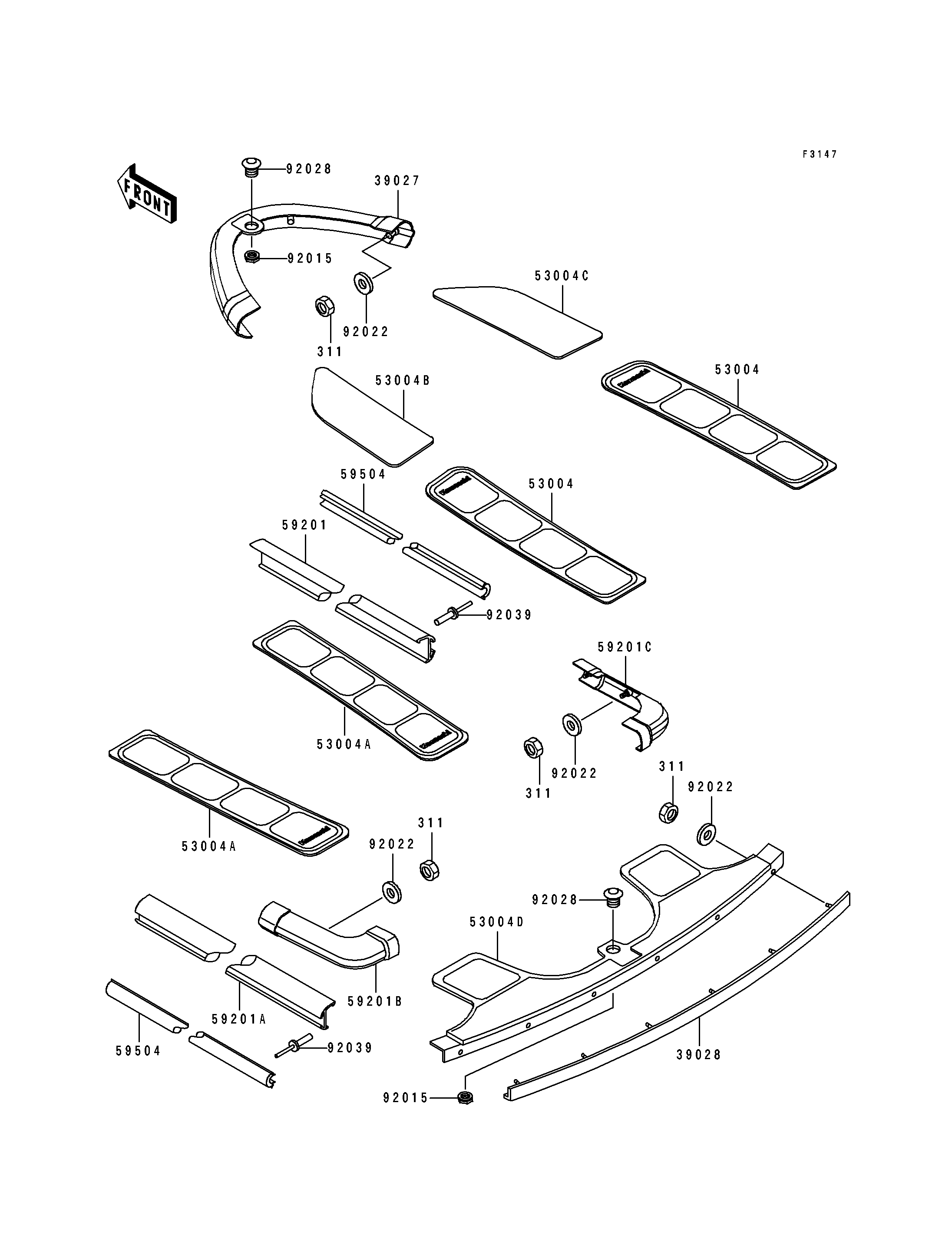

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BUMPER-FRONT,GRAY | 39027 | 39027-3730-RA | 1 | ||
| BUMPER-REAR,GRAY | 39028 | 39028-3734-RA | 1 | ||
| MAT,FLOOR,FR,GRAY | 53004 | 53004-3741-RA | 2 | ||
| MAT,FLOOR,RR,GRAY | 53004A | 53004-3742-RA | 2 | ||
| MAT,FOOT BOARD,LH,GRAY | 53004B | 53004-3743-RA | 1 | ||
| MAT,FOOT BOARD,RH,GRAY | 53004C | 53004-3744-RA | 1 | ||
| MAT,REAR BUMPER,GRAY | 53004D | 53004-3745-RA | 1 | ||
| BUMPER,SIDE,RH,GRAY | 59201 | 59201-3734-RA | 1 | ||
| BUMPER,SIDE,LH,GRAY | 59201A | 59201-3741-RA | 1 | ||
| BUMPER,CORNER,LH,GRAY | 59201B | 59201-3756-RA | 1 | ||
| BUMPER,CORNER,RH,GRAY | 59201C | 59201-3757-RA | 1 | ||
| INSERT-BOAT FENDER,GRAY | 59504 | 59504-3708-RA | 2 | ||
| NUT,26MM | 92015 | 92015-3840 | 2 | ||
| WASHER,5X16X1.5 | 92022 | 92022-3041 | 18 | ||
| BUSHING | 92028 | 92028-3734 | 2 | ||
| RIVET | 92039 | 92039-3758 | 20 | ||
| NUT-HEX,5MM | 311 | 311R0500 | 16 |
| BUMPER-FRONT,GRAY | |
| REF # | 39027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-REAR,GRAY | |
| REF # | 39028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,FLOOR,FR,GRAY | |
| REF # | 53004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MAT,FLOOR,RR,GRAY | |
| REF # | 53004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MAT,FOOT BOARD,LH,GRAY | |
| REF # | 53004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,FOOT BOARD,RH,GRAY | |
| REF # | 53004C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,REAR BUMPER,GRAY | |
| REF # | 53004D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,SIDE,RH,GRAY | |
| REF # | 59201 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,SIDE,LH,GRAY | |
| REF # | 59201A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,CORNER,LH,GRAY | |
| REF # | 59201B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,CORNER,RH,GRAY | |
| REF # | 59201C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSERT-BOAT FENDER,GRAY | |
| REF # | 59504 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,26MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5X16X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
