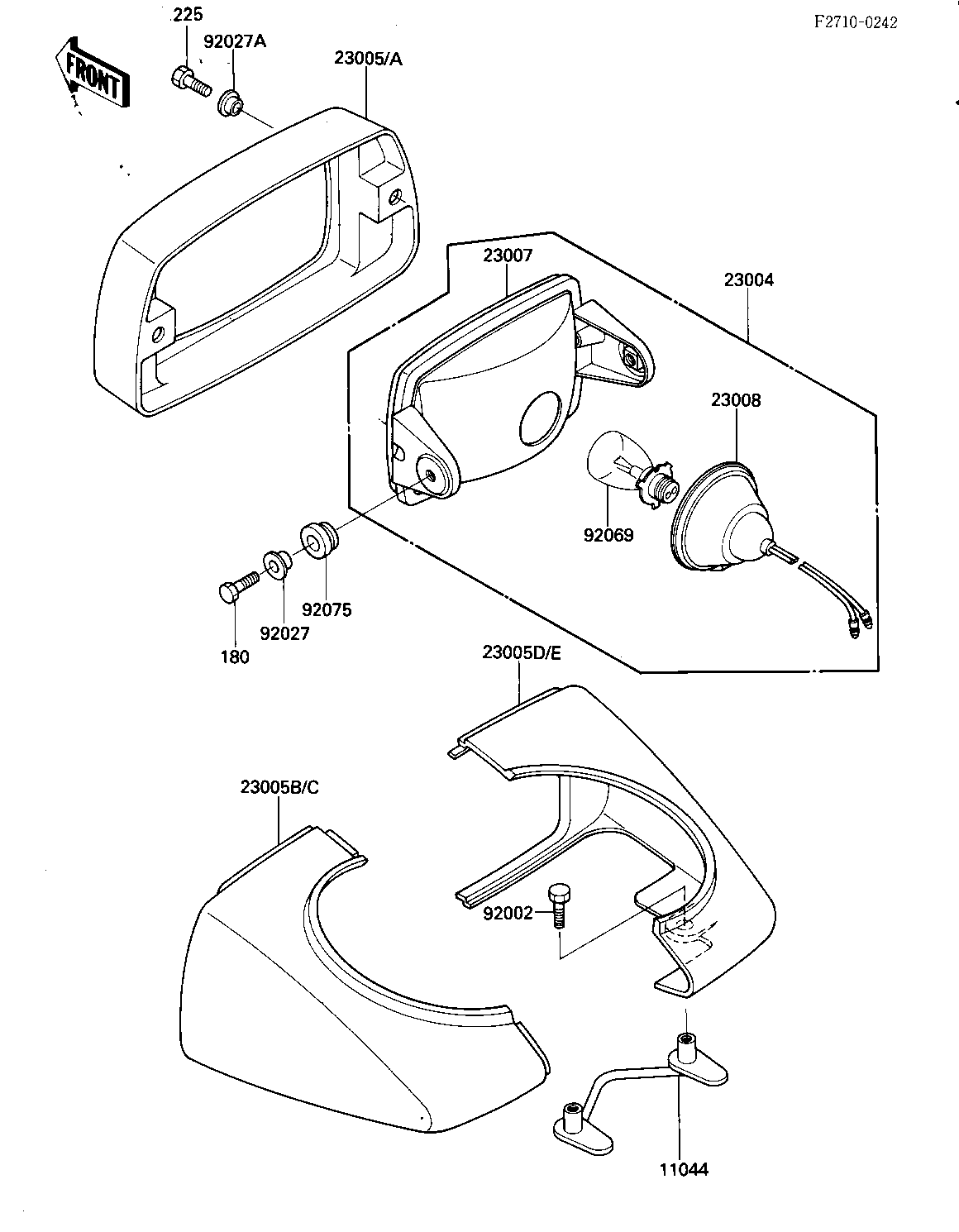

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11044 | 11043-1930 | 1 | ||
| LAMP-HEAD | 23004 | 23004-1176 | 1 | ||
| BODY-COMP-HEAD LAMP,F | 23005 | 23005-1054-6C | 1 | ||
| BODY-COMP-HEAD LAMP,F | 23005A | 23005-1054-6L | 1 | ||
| BODY-COMP-HEAD LAMP,L | 23005B | 23005-1055-6C | 1 | ||
| BODY-COMP-HEAD LAMP,L | 23005C | 23005-1055-6L | 1 | ||
| BODY-COMP-HEAD LAMP,R | 23005D | 23005-1056-6C | 1 | ||
| BODY-COMP-HEAD LAMP,R | 23005E | 23005-1056-6L | 1 | ||
| LENS-COMP,HEAD LAMP | 23007 | 23007-1122 | 1 | ||
| SOCKET H.L. | 23008 | 23008-4004 | 1 | ||
| BOLT | 92002 | 92002-1350 | 2 | ||
| COLLAR,FAN | 92027 | 92027-1188 | 2 | ||
| COLLAR,L=5 | 92027A | 92027-4020 | 2 | ||
| BULB,12V 45/45W | 92069 | 92069-1061 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-277 | 2 | ||
| BOLT-UPSET-WS | 180 | 180B0620 | 2 | ||
| SCREW-PAN-WSP-CROS | 225 | 225C0616 | 2 |
