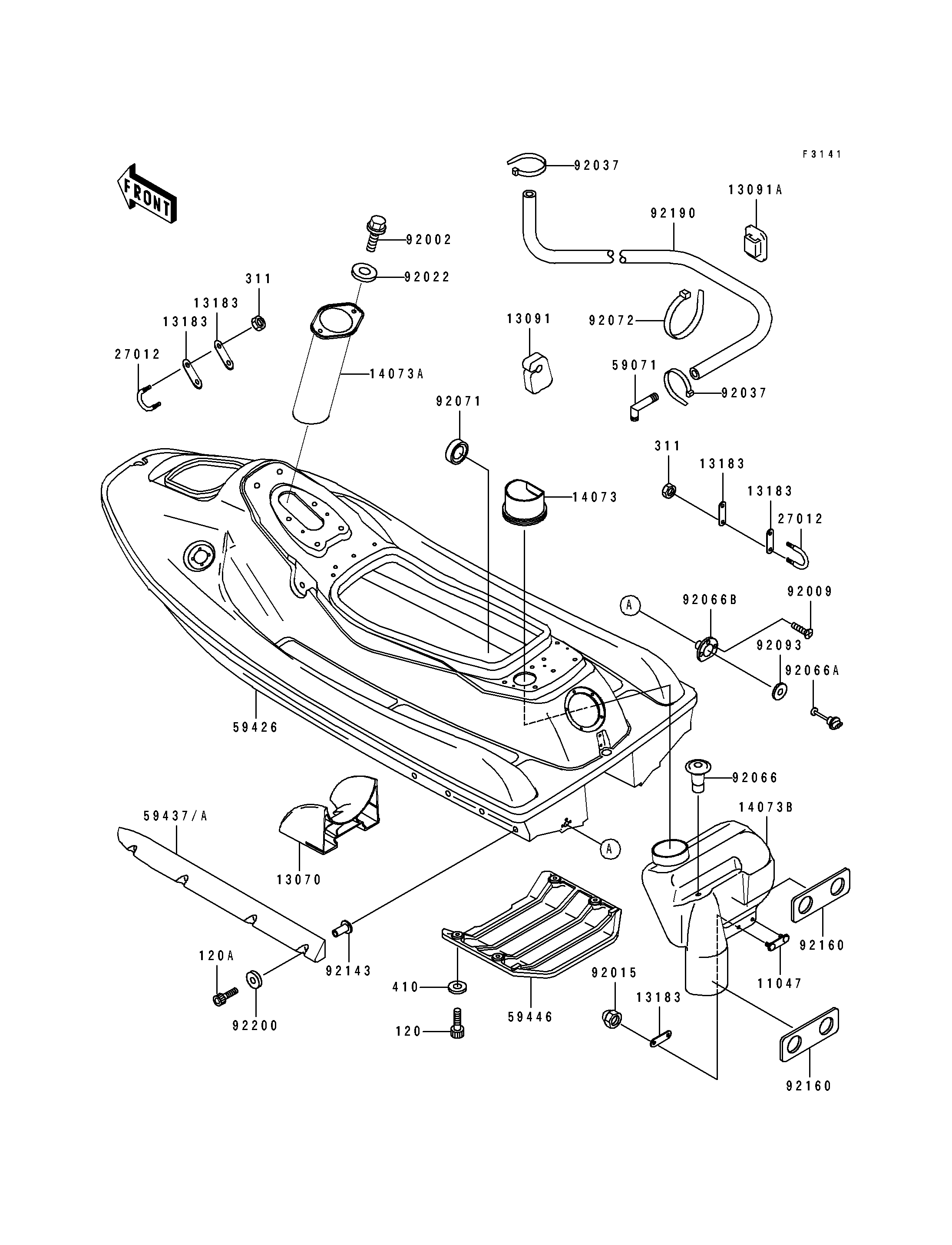

1994 XiR - Hull

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR DUCT 11047 11047-3774 1
GUIDE,INTAKE 13070 13070-3708 1
HOLDER 13091 13091-3712 5
HOLDER,BAND 13091A 13091-3764 3
PLATE 13183 13183-3809 5
DUCT,INTAKE 14073 14073-3739 1
DUCT,FR 14073A 14073-3746 1
DUCT,RR,MAIN 14073B 14073-3747 1
HOOK 27012 27012-3761 2
JOINT 59071 59071-3733 1
HULL-COMP,J.WHITE 59426 59426-3823-8C 1
STABILIZER,RH,C.C.BLUE 59437 59437-3704-3E 1
STABILIZER,LH,C.C.BLUE 59437A 59437-3705-3E 1
COVER-JET PUMP 59446 59446-3727 1
BOLT,6X16 92002 92002-3728 2
SCREW,TAPPING,4X14 92009 92009-3755 3
NUT,CAP,6MM 92015 92015-3755 2
WASHER,6.5X20X1.5 92022 92022-3710 2
CLAMP 92037 92037-1173 2
PLUG 92066 92066-3706 1
PLUG,RR,DRAIN 92066A 92066-3744 1
PLUG,RR,DRAIN 92066B 92066-3747 1
GROMMET 92071 92071-3783 1
BAND 92072 92072-3778 3
SEAL 92093 92093-3720 1
COLLAR 92143 92143-3739 8
DAMPER 92160 92160-3722 2
TUBE,5X10X1600 92190 92190-3926 1
WASHER,6.5X16X1.0 92200 92200-3712 8
BOLT-SOCKET,6X20 120 120R0620 4
BOLT-SOCKET,6X40 120A 120R0640 8
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
