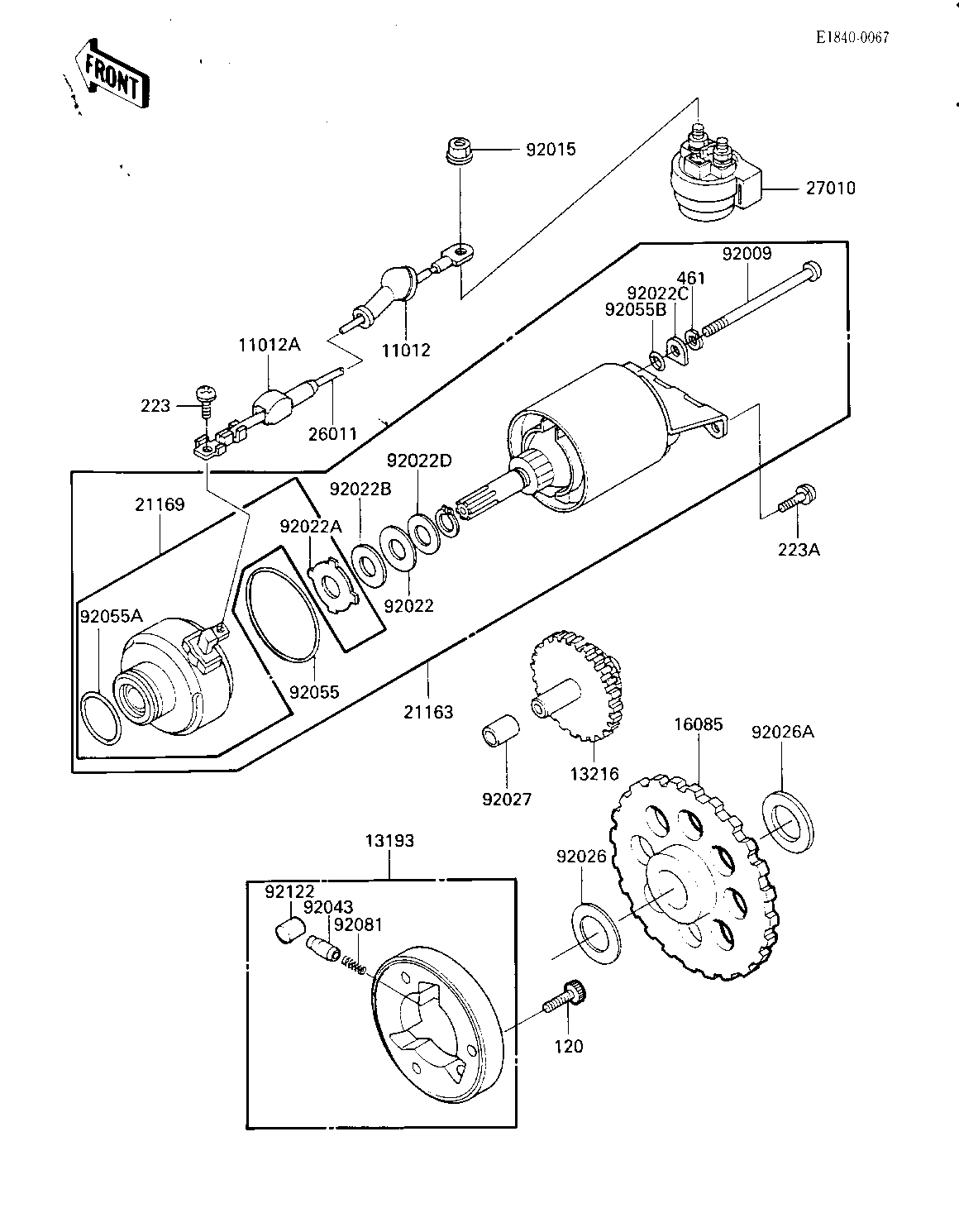

1985 Bayou 185 - STARTER MOTOR/STARTER CLUTCH
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
| CAP,STARTER TERMINAL | 11012A | 11012-1465 | 1 | ||
| CLUTCH ASSY,ONEWAY | 13193 | 13193-1002 | 1 | ||
| GEAR-COMP,IDLE | 13216 | 13216-1054 | 1 | ||
| GEAR-COMP,ONEWAY | 16085 | 16085-1032 | 1 | ||
| STARTER-ELECTRIC | 21163 | 21163-1076 | 1 | ||
| TERMINAL,STARTER MOTO | 21169 | 21169-1052 | 1 | ||
| WIRE-LEAD,STARTER MOT | 26011 | 26011-1312 | 1 | ||
| SWITCH,STARTER | 27010 | 27010-1314 | 1 | ||
| SCREW | 92009 | 92009-1389 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| WASHER,THRUST | 92022 | 92022-1129 | 3 | ||
| WASHER,THRUST SUPPORT | 92022A | 92022-1130 | 1 | ||
| WASHER,BAKELITE | 92022B | 92022-1131 | 1 | ||
| WASHER | 92022C | 92022-1697 | 2 | ||
| WASHER,22X12.2X0.5 | 92022D | 92022-1714 | 1 | ||
| WASHER 22X35.5X1.OT | 92026 | 92026-092 | 1 | ||
| SPACER | 92026A | 92026-1272 | 1 | ||
| COLLAR,12X17X17.3 | 92027 | 92027-1723 | 1 | ||
| PIN | 92043 | 92043-132 | 3 | ||
| "0" RING,56MM | 92055 | 92055-1042 | 1 | ||
| RING-O | 92055A | 92055-1303 | 1 | ||
| RING-O | 92055B | 92055-1304 | 2 | ||
| SPRING,COIL | 92081 | 92081-159 | 3 | ||
| ROLLER | 92122 | 92122-006 | 3 | ||
| BOLT-SOCKET,8X14 | 120 | 120P0814 | 3 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0508 | 1 | ||
| SCREW-PAN-WS-CROS | 223A | 223X0616 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 2 |
| CAP,TERMINAL | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STARTER TERMINAL | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH ASSY,ONEWAY | |
| REF # | 13193 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-COMP,IDLE | |
| REF # | 13216 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-COMP,ONEWAY | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STARTER-ELECTRIC | |
| REF # | 21163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TERMINAL,STARTER MOTO | |
| REF # | 21169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,STARTER MOT | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,STARTER | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST SUPPORT | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,BAKELITE | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,22X12.2X0.5 | |
| REF # | 92022D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 22X35.5X1.OT | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12X17X17.3 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "0" RING,56MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X14 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
