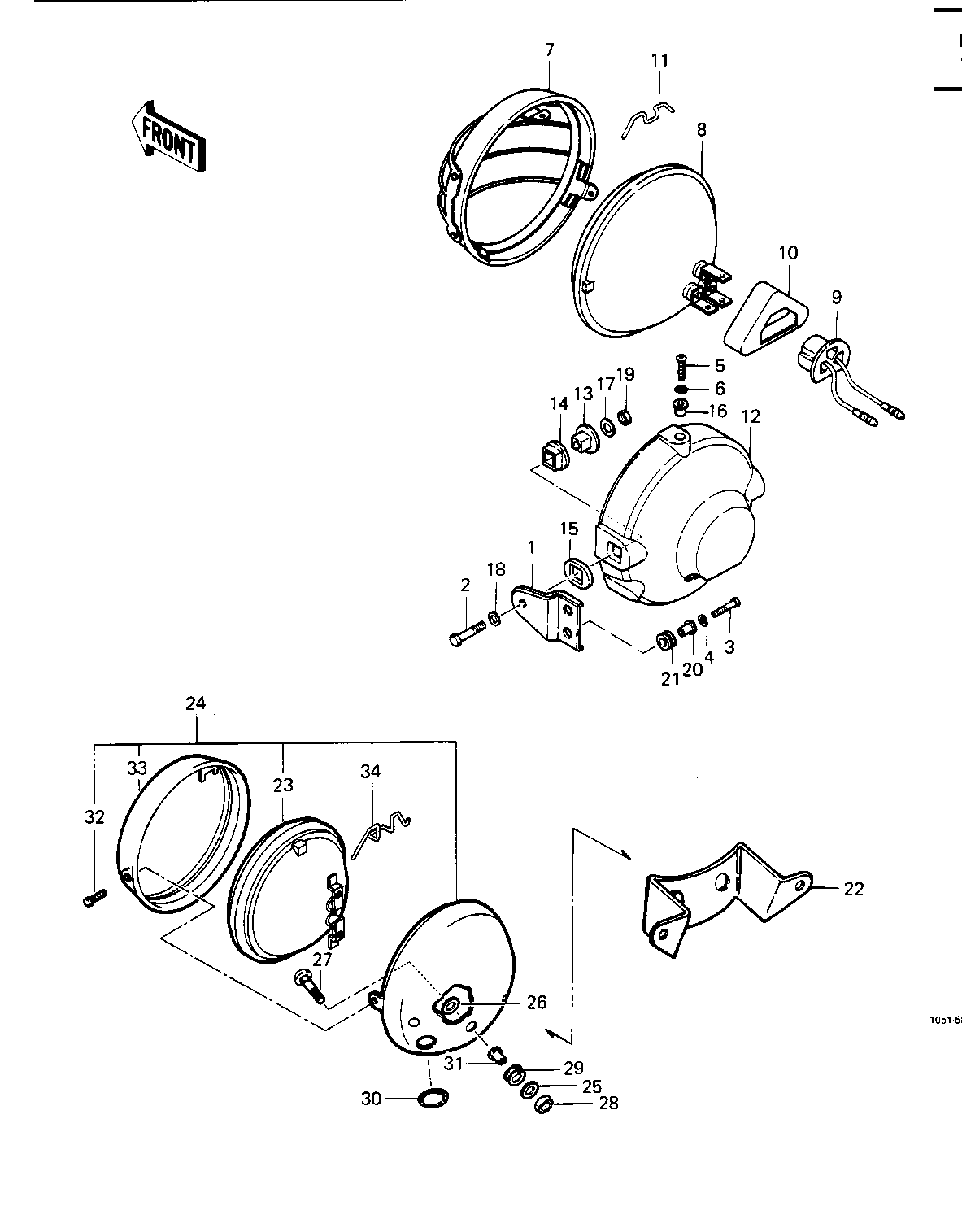

1984 Police - HEADLIGHT/PURSUIT LIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEADLAMP,EBNY 1 11034-4123-8G 2
BOLT-SMALL,8X32 2 114N0832 2
BOLT-UPSET,6X20 3 112G0620 4
WASHER SPRING 6MM 4 461F0600 4
SCREW PAN HEAD 5X12 5 220B0512 3
WASHER SPRING 5MM 6 461F0500 3
RIM-LAMP 7 23006-4003 1
LENS-COMP 8 23007-4002 1
SOCKET-ASSY 9 23008-1125 1
COVER,HD LAMP SOCKET 10 23081-001 1
SPRING,HEAD LAMP LENS 11 92081-4025 3
BODY-HEADLAMP,EBONY 12 23005-4004-8G 1
COLLAR,HEAD LAMP 13 92027-1105 2
DAMPER RUBBER,HD LAMP 14 92075-1077 2
DAMPER RUBBER,HD LAMP 15 92075-1078 2
WASHER 16 23021-010 3
WASHER PLAIN 8MM 17 411B0800 2
WASHER,PLAIN,8MM 18 411D0800 2
NUT,LOCK,8MM 19 92015-1124 2
COLLAR 20 92027-1045 4
DAMPER RUBBER 21 92075-277 4
BRACKET,HEAD LAMP 22 11034-4259 1
SEAL BEAM,PRSUT,RED 23 23007-1001 1 FOR POLICE USE ONLY
SEAL BEAM,PRSUT,BLUE 23 23007-1002 (1
SEAL BEAM,PRSUT,AMBER 23 23007-1003 (1
LAMP-ASSY 24 23016-4005 1
WASHER PLAIN 8MM 25 410B0800 2
WASHER PLAIN 8MM 26 411B0800 2
BOLT,PURSUIT LIGHT 27 92001-4015 2
NUT 28 92019-008 2
GROMMET 29 92071-056 2
GROMMET 30 92071-024 1
COLLAR,L=5 31 92027-4020 2
SCREW-4X8,LAMP RIM 32 92009-4011 1
RIM,PURSUIT LAMP 33 23006-4004 1
RETAINER,CLIP 34 14020-1096 3
