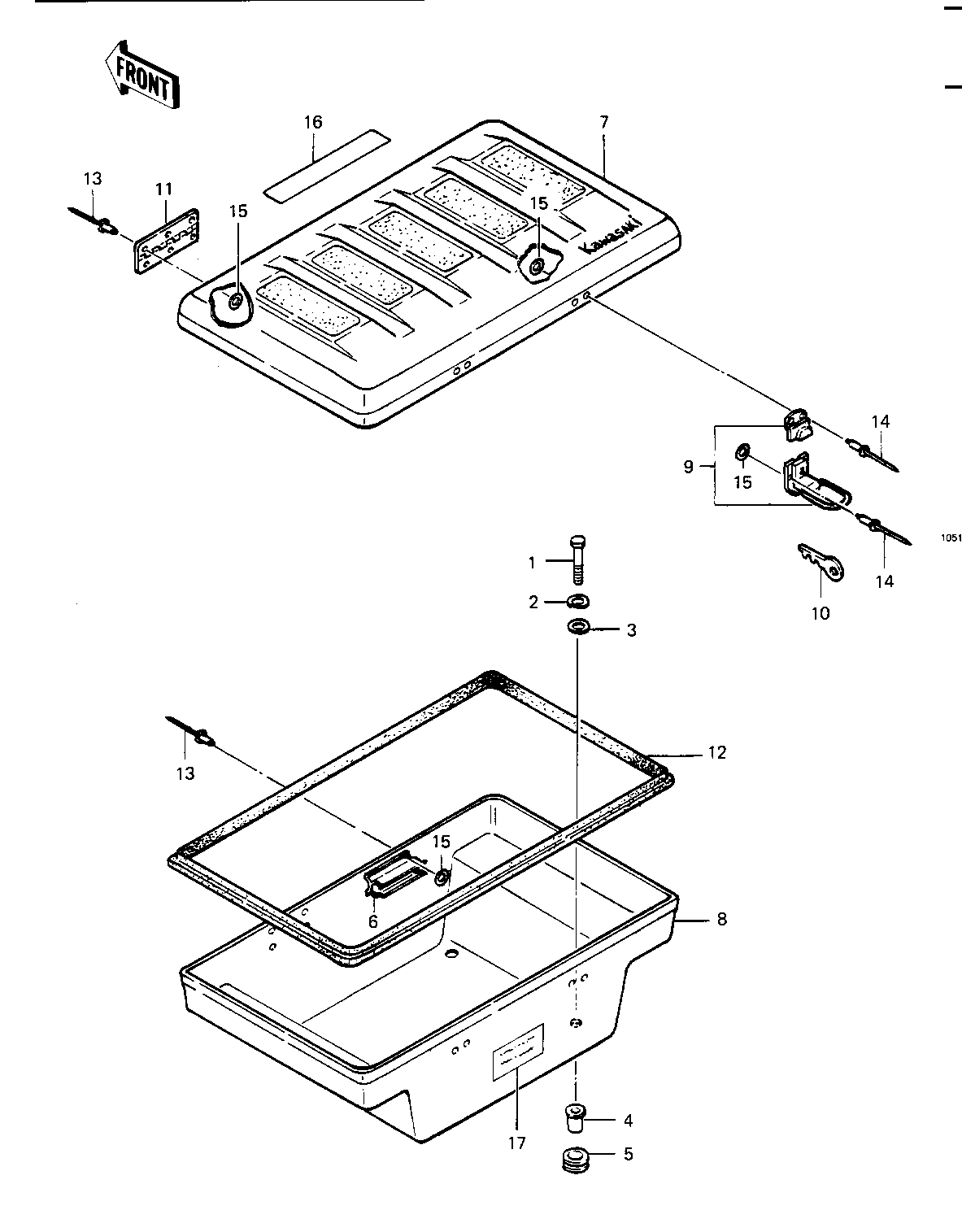

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,8X40 | 1 | 115G0840 | 4 | ||
| WASHER SPRING 8MM | 2 | 461F0800 | 4 | ||
| WASHER PLAIN 8MM | 3 | 410B0800 | 4 | ||
| COLLAR,FUEL TANK FITT | 4 | 92027-1134 | 4 | ||
| DAMPER RUBB TANK FRNT | 5 | 92075-013 | 4 | ||
| HOLDER,CASE-ASSY | 6 | 13091-4020 | 2 | ||
| COVER-TRUNK.J-WHITE | 7 | 14025-4028-8C | 1 | ||
| CASE-TRUNK.J-WHITE | 8 | 32099-4017-8C | 1 | ||
| LATCH | 9 | 49031-4002 | 2 | ||
| KEY SET-POLICE SDDLBG | 10 | 27008-4001 | AR | ||
| HINGE,TRUNK | 11 | 53009-4005 | 2 | ||
| SEAL-TRUNK | 12 | 92093-4009 | 1 | ||
| RIVET | 13 | 92039-4007 | 20 | ||
| RIVET | 14 | 92039-4006 | 10 | ||
| WASHER | 15 | 92022-4017 | 30 | ||
| LABEL-NO PASSENGER | 16 | 56040-4008 | 1 | ||
| LABEL-WARNING | 17 | 56040-4012 | 1 |
| BOLT,8X40 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FUEL TANK FITT | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB TANK FRNT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CASE-ASSY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-TRUNK.J-WHITE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-TRUNK.J-WHITE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LATCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KEY SET-POLICE SDDLBG | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| HINGE,TRUNK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-TRUNK | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 30 |
| DESTINATION | |
| REMARKS | |
| LABEL-NO PASSENGER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
