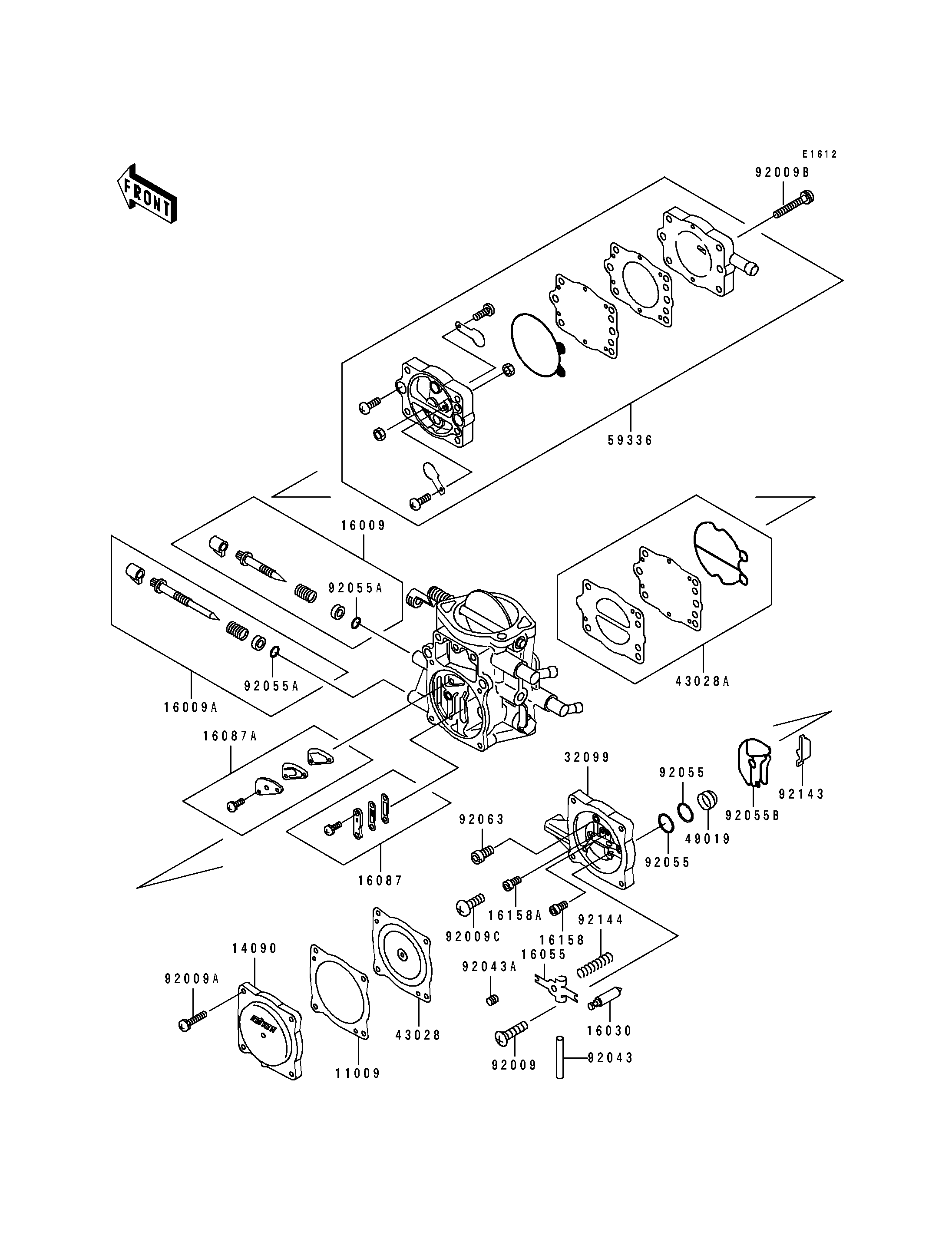

1994 XiR - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DIAPHRAGM 11009 11009-3730 2
COVER,DIAPHRAGM 14090 14090-3702 2
NEEDLE-JET,MAIN 16009 16009-3711 2
NEEDLE-JET,SLOW 16009A 16009-3712 2
VALVE-FLOAT 16030 16030-3701 2
ARM-FLOAT 16055 16055-3701 2
VALVE-CHECK 16087 16087-3704 2
VALVE-CHECK,MAIN 16087A 16087-3705 2
JET-SLOW,#45 16158 16158-3711 2
JET-SLOW,#68 16158A 16158-3717 2
CASE,CARBURETOR 32099 32099-3771 2
DIAPHRAGM,CARBURETOR 43028 43028-3704 2
DIAPHRAGM,PUMP 43028A 43028-3706 1
FILTER-FUEL,STRAINER 49019 49019-3707 2
CASE-PUMP 59336 59336-3710 1
SCREW,3X6 92009 92009-3712 2
SCREW,4X18 92009A 92009-3782 8
SCREW,5X28 92009B 92009-3783 4
SCREW 92009C 92009-3804 2
PIN,FLOAT 92043 92043-1209 2
PIN,THROTTLE STOP SCREW 92043A 92043-3712 2
RING-O 92055 92055-1246 4
RING-O,ADJUST SCREW 92055A 92055-3713 4
RING-O 92055B 92055-3735 2
JET-MAIN,#130 92063 92063-3709 2
COLLAR 92143 92143-3727 2
SPRING,FLOAT ARM 92144 92144-3747 2
