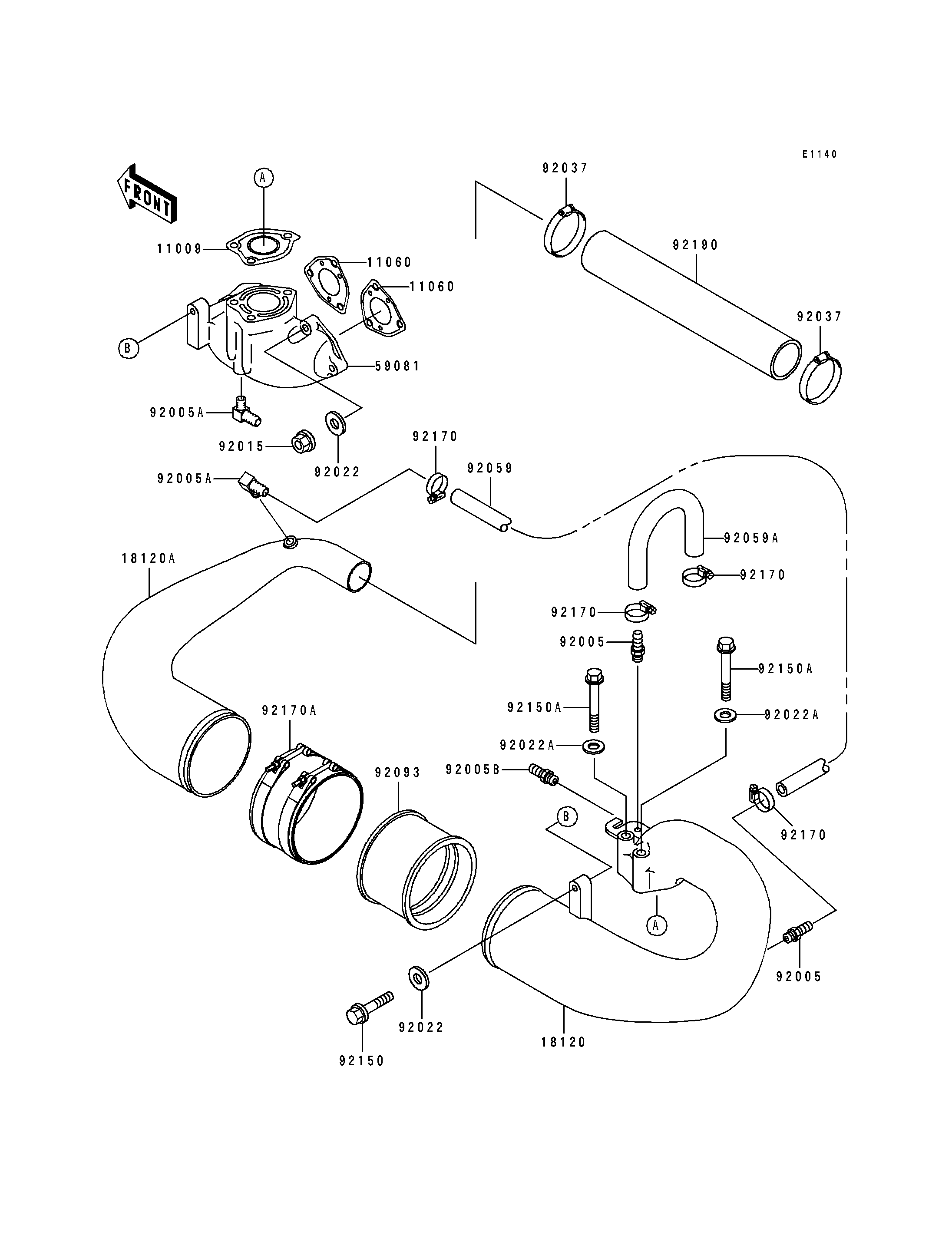

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 11009 | 11009-3752 | 1 | ||
| GASKET,EXHAUST PIPE | 11060 | 11060-3721 | 2 | ||
| CHAMBER-EXHAUST | 18120 | 18120-3701 | 1 | ||
| CHAMBER-EXHAUST | 18120A | 18120-3702 | 1 | ||
| MANIFOLD-EXHAUST | 59081 | 59081-3715 | 1 | ||
| FITTING | 92005 | 92005-3713 | 2 | ||
| FITTING | 92005A | 92005-3717 | 2 | ||
| FITTING | 92005B | 92005-3718 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 6 | ||
| WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 7 | ||
| WASHER,10.2X20X1.5 | 92022A | 92022-3742 | 3 | ||
| CLAMP | 92037 | 92037-3009 | 2 | ||
| TUBE,HULL TO ENGINE,9X16X680 | 92059 | 92059-3761 | 1 | ||
| TUBE | 92059A | 92059-3816 | 1 | ||
| SEAL | 92093 | 92093-3741 | 1 | ||
| BOLT,8X35 | 92150 | 92150-3801 | 1 | ||
| BOLT,10X70 | 92150A | 92150-3831 | 3 | ||
| CLAMP | 92170 | 92170-3718 | 4 | ||
| CLAMP | 92170A | 92170-3741 | 1 | ||
| TUBE,CHAMBER-WATER MUFFLER | 92190 | 92190-3928 | 1 |
| GASKET,EXHAUST PIPE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAMBER-EXHAUST | |
| REF # | 18120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAMBER-EXHAUST | |
| REF # | 18120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-EXHAUST | |
| REF # | 59081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X18X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.2X20X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,HULL TO ENGINE,9X16X680 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X35 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X70 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CHAMBER-WATER MUFFLER | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
