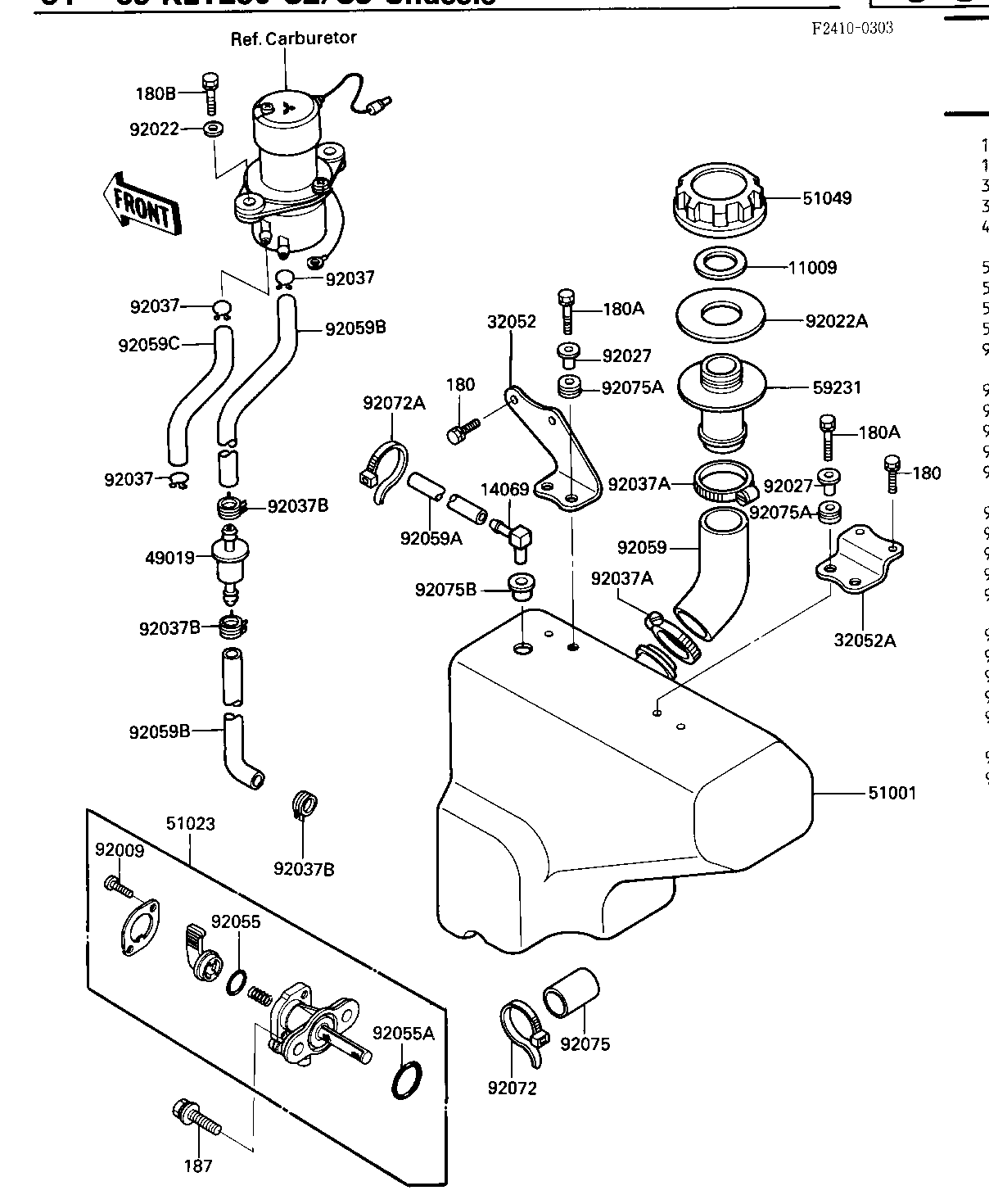

1984 Prairie - FUEL TANK ('84-'85 C2/C3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL TANK CAP | 11009 | 11009-3020 | 1 | ||
| BREATHER | 14069 | 14069-003 | 1 | ||
| BRACKET-TANK | 32052 | 32052-4006 | 1 | ||
| BRACKET-TANK | 32052A | 32052-4007 | 1 | ||
| FILTER-FUEL | 49019 | 49019-4001 | 1 | ||
| TANK-FUEL,GRAY | 51001 | 51001-4005-8L | 1 | ||
| TAP-ASSY-FUEL | 51023 | 51023-1115 | 1 | ||
| CAP,FUEL TANK | 51049 | 51049-3001 | 1 | ||
| FILLER,FUEL TANK | 59231 | 59231-3001 | 1 | ||
| SCREW PAN HEAD 3X8 | 92009 | 220E0308 | 2 | ||
| WASHER,6.5X16X2 | 92022 | 92022-1565 | 2 | ||
| WASHER-RUBBER | 92022A | 92022-4024 | 1 | ||
| COLLAR | 92027 | 92027-1045 | 4 | ||
| CLAMP,TUBE | 92037 | 92037-1682 | 3 | ||
| HOSE CLAMP | 92037A | 92037-3009 | 2 | ||
| CLAMP | 92037B | 92037-4009 | 3 | ||
| RING-O | 92055 | 92055-1299 | 1 | ||
| RING-O | 92055A | 92055-1300 | 1 | ||
| TUBE,TANK | 92059 | 92059-4013 | 1 | ||
| TUBE-BREATHER | 92059A | 92059-4027 | 1 | ||
| TUBE,5.3X10.5X85 | 92059B | 92059-4029 | 2 | ||
| TUBE,5.3X10.5X450 | 92059C | 92059-4030 | 1 | ||
| BAND | 92072 | 92072-3505 | 2 | ||
| BAND | 92072A | 92072-4004 | 3 | ||
| DAMPER RUBBER | 92075 | 92075-084 | 2 | ||
| DAMPER RUBBER | 92075A | 92075-277 | 4 | ||
| DAMPER,FUEL TANK | 92075B | 92075-4029 | 1 | ||
| BOLT-UPSET-WS,6X14 | 180 | 180B0614 | 4 | ||
| BOLT-UPSET-WS | 180A | 180B0620 | 4 | ||
| BOLT-UPSET-WS,6X35 | 180B | 180B0635 | 2 | ||
| BOLT-UPSET-WSP | 187 | 187B0616 | 2 |
