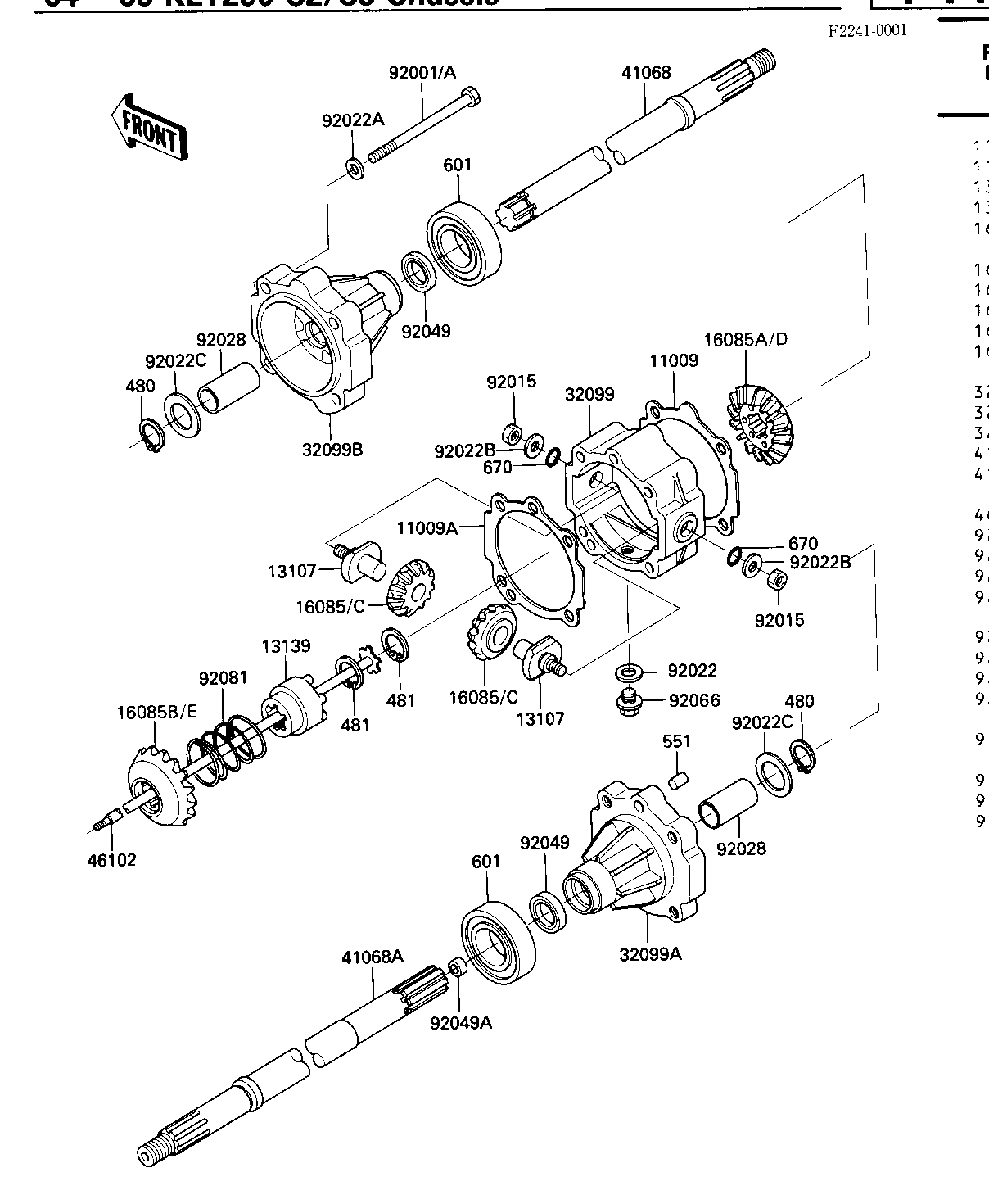

1984 Prairie - REAR AXLE ('84-'85 C2/C3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,DIFFERENTIAL C | 11009 | 11009-1345 | 1 | ||
| GASKET,DIFFERENTIAL G | 11009A | 11009-1398 | 1 | ||
| SHAFT,PINION | 13107 | 13107-1113 | 2 | ||
| SHIFTER | 13139 | 13139-1004 | 1 | ||
| GEAR,BEVEL,10T | 16085C | 16085-4005 | 2 | ||
| GEAR,BEVEL,16T | 16085D | 16085-4006 | 1 | ||
| GEAR,BEVEL,16T | 16085E | 16085-4007 | 1 | ||
| CASE,DIFFERENTIAL GEA | 32099 | 32099-1058 | 1 | ||
| CASE,DIFFERENTIAL GEA | 32099A | 32099-1059 | 1 | ||
| CASE,DIFFERENTIAL GEA | 32099B | 32099-1060 | 1 | ||
| AXLE,RR,RH | 41068 | 41068-1153 | 1 | ||
| AXLE,RR,LH | 41068A | 41068-1154 | 1 | ||
| ROD | 46102 | 46102-4006 | 1 | ||
| BOLT,10X103 | 92001 | 92001-1842 | 4 | ||
| BOLT,10X103 | 92001A | 92001-1842 | AR | ||
| NUT | 92015 | 92015-1774 | 2 | ||
| WASHER,12X18X1 | 92022 | 92022-1211 | 1 | ||
| WASHER,10.5X18X2.5 | 92022A | 92022-1453 | 4 | ||
| WASHER,12.3X23X4.5 | 92022B | 92022-1509 | 4 | ||
| WASHER,22X40X2 | 92022C | 92022-4029 | 2 | ||
| BUSHING,DIFFERENTIAL | 92028 | 92028-1206 | 2 | (OPTION) | |
| SEAL-OIL | 92049 | 92049-1106 | 2 | ||
| OIL SEAL | 92049A | 92050-075 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
| SPRING,DIFFERENTIAL,L | 92081 | 92081-1568 | 1 | ||
| CIRCLIP,22MM | 480 | 480J2200 | 2 | ||
| CIRCLIP,18MM | 481 | 481J1800 | 2 | ||
| PIN-DOWEL,10X20 | 551 | 551A1020 | 2 | ||
| BEARING | 601 | 601A6008UU | 2 | ||
| "O" RING,12MM | 670 | 670B2012 | 2 |
| GASKET,DIFFERENTIAL C | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,DIFFERENTIAL G | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,PINION | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHIFTER | |
| REF # | 13139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,BEVEL,10T | |
| REF # | 16085C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR,BEVEL,16T | |
| REF # | 16085D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,BEVEL,16T | |
| REF # | 16085E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,DIFFERENTIAL GEA | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,DIFFERENTIAL GEA | |
| REF # | 32099A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,DIFFERENTIAL GEA | |
| REF # | 32099B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR,RH | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR,LH | |
| REF # | 41068A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X103 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X103 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,12X18X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X18X2.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.3X23X4.5 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,22X40X2 | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,DIFFERENTIAL | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL DRAIN,12X15 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,DIFFERENTIAL,L | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,22MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,10X20 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "O" RING,12MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
