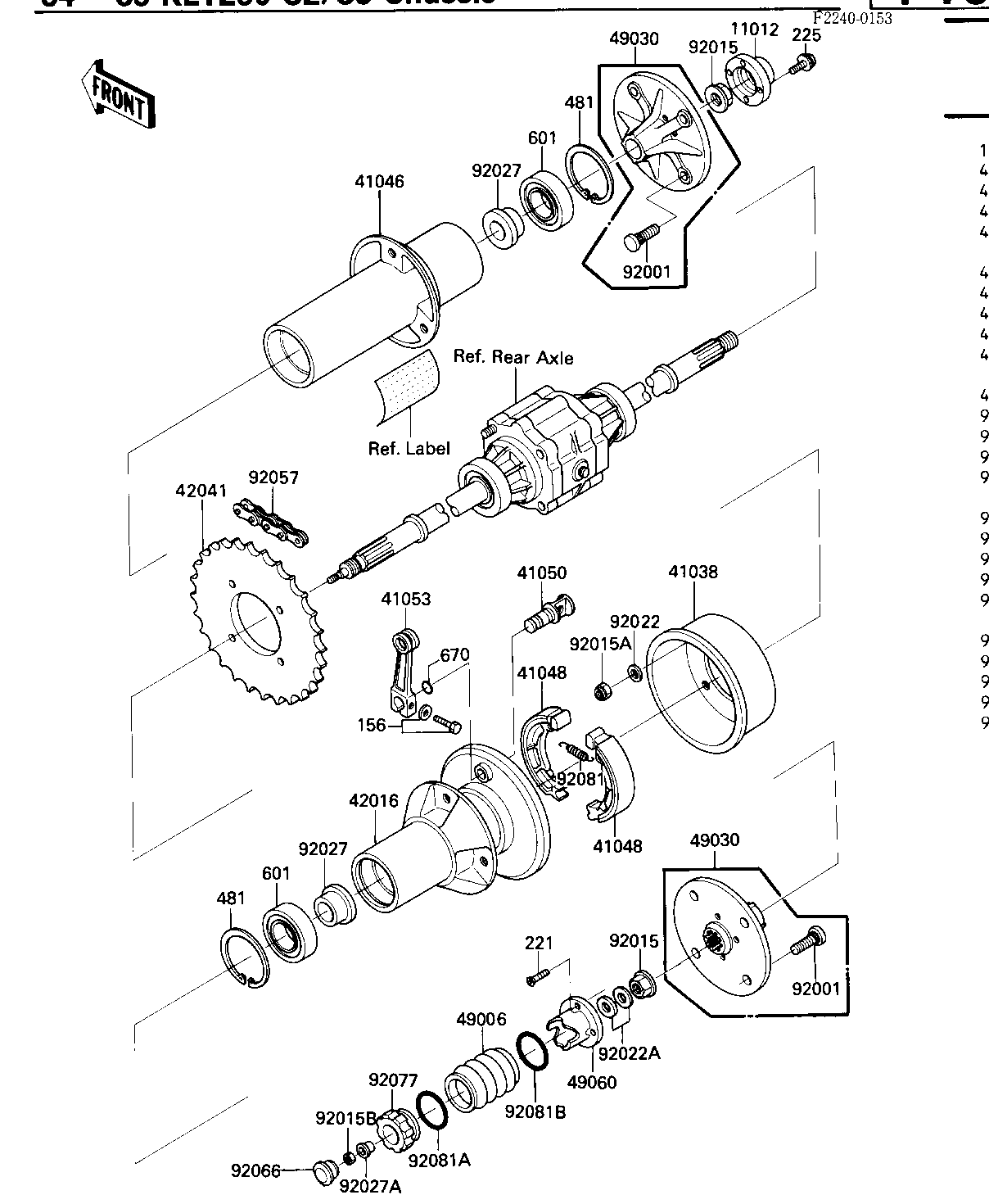

1984 Prairie - REAR HUB BRAKE CHAIN ('84-'85 C2/C3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-4005 | 1 | ||
| DRUM,HUB-RR | 41038 | 41038-4017 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-4008 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1068 | 2 | ||
| CAM SHAFT,BRAKE | 41050 | 41050-1002 | 1 | ||
| LEVER BRAKE CAM | 41053 | 41053-1022 | 1 | ||
| PANEL RR-BRAKE | 42016 | 42016-4008 | 1 | ||
| SPROCKET-HUB,50T | 42041 | 42041-4008 | 1 | ||
| BOOT | 49006 | 49006-4005 | 1 | ||
| RR-HUB,FORGED | 49030 | 49030-4011 | 2 | ||
| CAM | 49060 | 49060-4001 | 1 | ||
| BOLT,LUG | 92001 | 92001-4006 | 8 | ||
| NUT,FLANGED&LOCK,18MM | 92015 | 92015-4024 | 2 | ||
| NUT,10MM | 92015A | 92015-1429 | 4 | ||
| NUT-LOCK,5MM | 92015B | 92019-014 | 1 | ||
| WASHER,10.5X18X2.5 | 92022 | 92022-1453 | 4 | ||
| WASHER,PLAIN,5MM | 92022A | 92022-241 | 3 | ||
| COLLAR,AXLE | 92027 | 92027-4029 | 2 | ||
| COLLAR | 92027A | 92027-4030 | 1 | ||
| CHAIN,EK520SH-0,98L | 92057 | 92057-4011 | 1 | ||
| PLUG,FRAME END | 92066 | 92066-1027 | 1 | ||
| KNOB | 92077 | 92077-4002 | 1 | ||
| SPRING-BRAKE SHOE | 92081 | 42020-004 | 2 | ||
| SPRING | 92081A | 92081-1177 | 1 | ||
| SPRING,L=141 | 92081B | 92081-1570 | 1 | ||
| BOLT-WP | 156 | 156G0622 | 1 | ||
| SCREW-CSK-CROSS | 221 | 221B0516 | 4 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0520 | 4 | ||
| CIRCRIP-TYPE-C,68MM | 481 | 481J6800 | 2 | ||
| BEARING,BALL,#6008UU | 601 | 601A6008UU | 2 | ||
| "O" RING,15MM | 670 | 670B2015 | 1 |
