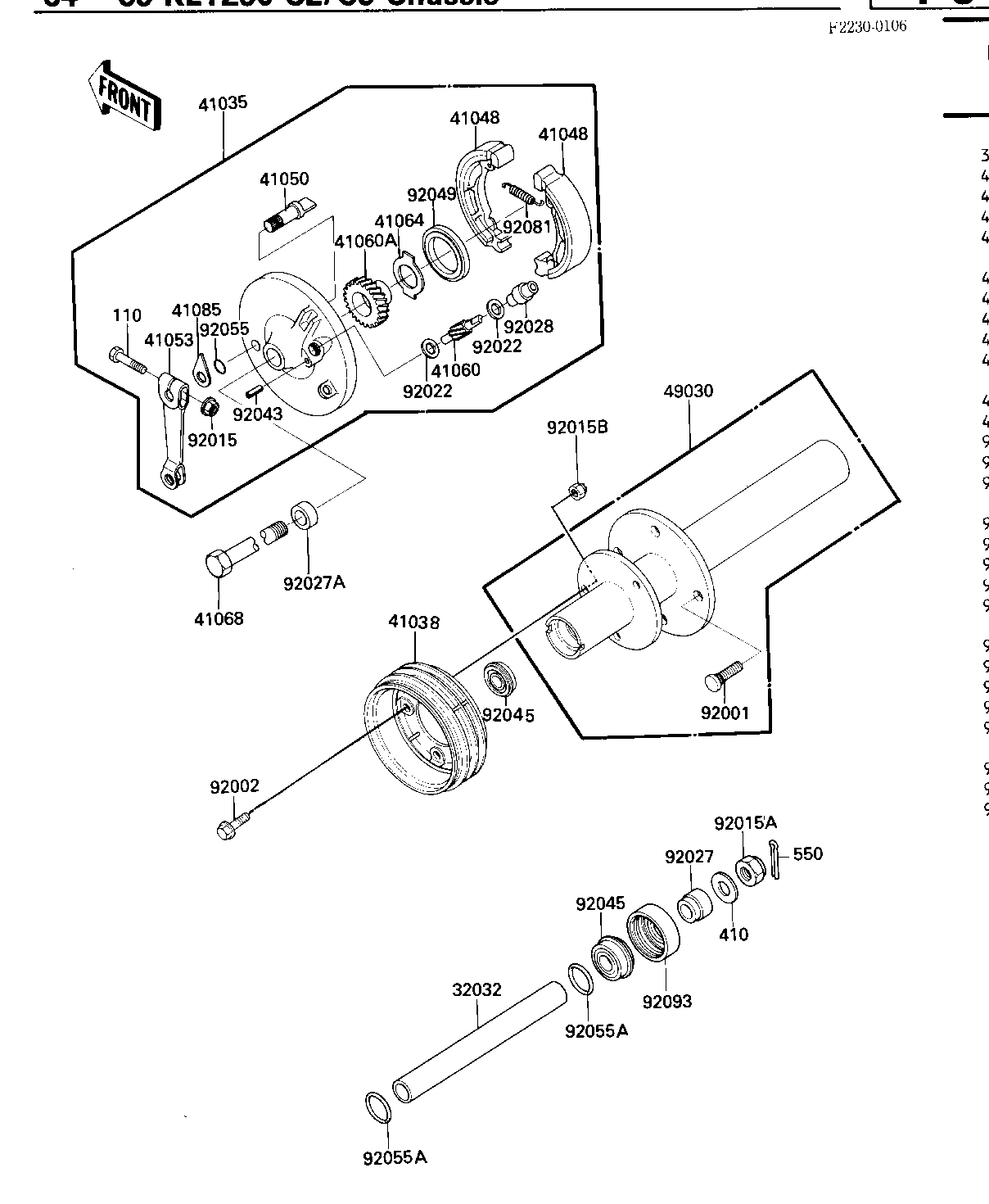

1984 Prairie - FRONT HUB\BRAKE ('84-'85 C2/C3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIPE,SPACER | 32032 | 32032-4109 | 1 | ||
| PANEL-ASSY-BRAKE,FR | 41035 | 41035-1165 | 1 | ||
| DRUM,FR | 41038 | 41038-1115 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1085 | 1 | ||
| CAM SHAFT-FRONT BRAKE | 41050 | 41050-018 | 1 | ||
| LEVER FRONT BRAKE CAM | 41053 | 41053-005 | 1 | ||
| PINION-SPEEDOMETER | 41060 | 41060-014 | 1 | ||
| GEAR-METER SCREW | 41060A | 41060-4001 | 1 | ||
| RECEIVER-SPEEDOMETER | 41064 | 41064-4001 | 1 | ||
| AXLE,L=368 | 41068 | 41068-1168 | 1 | ||
| INDICATOR,FR BK SHOE | 41085 | 41085-013 | 1 | ||
| HUB-FRONT | 49030 | 49030-1052 | 1 | ||
| BOLT,LUG | 92001 | 92001-4006 | 4 | ||
| BOLT,FLANGED,10X22 | 92002 | 92002-1312 | 3 | ||
| NUT,6MM | 92015 | 41072-007 | 1 | ||
| NUT,14MM | 92015A | 42045-020 | 1 | ||
| NUT,10MM | 92015B | 92015-1429 | 3 | ||
| WASHER THRST SPD PINI | 92022 | 41063-001 | 2 | ||
| COLLAR,FR HUB,L=19 | 92027 | 92027-1734 | 1 | ||
| COLLAR | 92027A | 92027-4009 | 1 | ||
| BUSH,SPEEDMETER CABLE | 92028 | 41062-005 | 1 | ||
| PIN,SPRING | 92043 | 41082-001 | 1 | ||
| BEARING BALL HUB-ASSY | 92045 | 92045-4005 | 2 | ||
| OIL SEAL BRAKE PANEL | 92049 | 92050-002 | 1 | ||
| "0" RING,11MM | 92055 | 92055-004 | 1 | ||
| "0" RING | 92055A | 92055-4001 | 2 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 2 | ||
| SEAL,FR HUB | 92093 | 92093-1157 | 1 | ||
| BOLT-UPSET | 110 | 112G0630 | 1 | ||
| WASHER PLAIN 16MM | 410 | 410B1600 | 1 | ||
| PIN,COTTER | 550 | 550D3230 | 1 |
